DISASSEMBLY

PROCEDURE

1. REMOVE BRAKE PEDAL SUB-ASSEMBLY

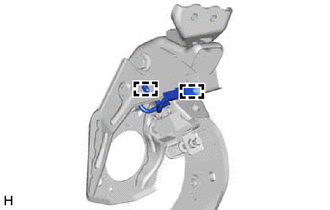

(a) Disengage the 2 clamps.

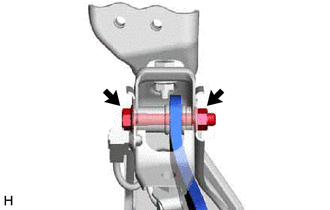

(b) Remove the bolt, nut and brake pedal sub-assembly from the brake pedal support sub-assembly.

2. REMOVE BRAKE PEDAL SHAFT COLLAR

(a) Remove the brake pedal shaft collar from the brake pedal sub-assembly.

3. REMOVE BRAKE PEDAL BUSHING

(a) Remove the 2 brake pedal bushings from the brake pedal sub-assembly.

4. REMOVE BRAKE PEDAL PAD

(a) Remove the brake pedal pad from the brake pedal sub-assembly.
