INSTALLATION
PROCEDURE
1. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY (for TMC Made)
NOTICE:
Before installing the transmission control cable assembly, check that the park/neutral position switch assembly and the shift lever are in neutral.
(a) Pass the transmission control cable assembly from the cabin to the engine compartment.
(b) Install the transmission control cable assembly with the 3 bolts.
Torque:
5.0 N·m {51 kgf·cm, 44 in·lbf}
(c) Return the floor carpet to its original position.
(d) Engage the 2 clamps. | |
(e) Install a new clip to the No. 1 transmission control cable bracket.
(f) Connect the transmission control cable assembly to the No. 1 transmission control cable bracket. NOTICE:
|
|
(g) Turn the control shaft lever clockwise until it stops, then turn it counterclockwise 2 notches. |
|
(h) Connect the transmission control cable assembly to the transmission control shaft lever with the nut.
Torque:
12 N·m {122 kgf·cm, 9 ft·lbf}
NOTICE:
Before connecting the transmission control cable assembly, check that the shift lever is in neutral.

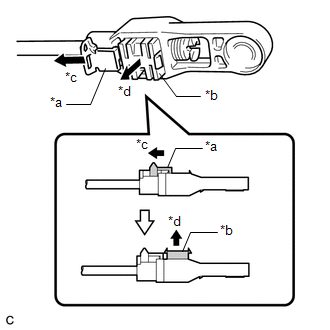

(i) Slide the slider of the transmission control cable assembly and pull the lock piece outward as shown in the illustration. |
|
(j) Engage the 2 claws to connect the transmission control cable assembly to the transmission floor shift assembly.
NOTICE:
Make sure that the transmission control cable assembly is securely connected.
(k) Connect the transmission control cable assembly to the transmission floor shift assembly. NOTICE:
|
|
(l) Push the lock piece into the adjuster case. NOTICE:
|
|
2. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY (for TMMC Made)
NOTICE:
Before installing the transmission control cable assembly, check that the park/neutral position switch assembly and the shift lever are in neutral.
(a) Pass the transmission control cable assembly from the cabin to the engine compartment.
(b) Install the transmission control cable assembly with the 3 bolts.
Torque:
5.0 N·m {51 kgf·cm, 44 in·lbf}
(c) Return the floor carpet to its original position.
(d) Engage the 2 clamps. | |
(e) Install a new clip to the No. 1 transmission control cable bracket.
(f) Connect the transmission control cable assembly to the No. 1 transmission control cable bracket. NOTICE:
|
|
(g) Turn the control shaft lever clockwise until it stops, then turn it counterclockwise 2 notches. |
|
(h) Connect the transmission control cable assembly to the transmission control shaft lever with the nut.
Torque:
12 N·m {122 kgf·cm, 9 ft·lbf}
NOTICE:
Before connecting the transmission control cable assembly, check that the shift lever is in neutral.
(i) Slide the cover of the transmission control cable assembly and pull the lock piece outward as shown in the illustration. |
|
(j) Engage the 2 claws to connect the transmission control cable assembly to the transmission floor shift assembly. NOTICE: Make sure that the transmission control cable assembly is securely connected. | |
(k) Connect the transmission control cable assembly to the transmission floor shift assembly. NOTICE:
|
|
(l) Using your fingers, gently pull the cable rod towards the rear of the vehicle to remove backlash.
(m) Push the lock piece into the adjuster case. NOTICE: Make sure that the park/neutral position switch assembly and the shift lever are in neutral. |
|
(n) Slide the cover of the transmission control cable assembly as shown in the illustration. NOTICE:
|
|
(o) After adjusting the shift lever position, check the position and operation of the shift lever. If there is a problem, adjust the shift lever position again.
3. INSTALL FRONT NO. 2 CONSOLE BOX INSERT
Click here
4. INSTALL FRONT NO. 1 CONSOLE BOX INSERT
Click here
5. INSTALL CONSOLE BOX ASSEMBLY
Click here
6. INSTALL AIR CLEANER CASE SUB-ASSEMBLY
Click here
7. INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
Click here
8. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE
Click here
9. INSTALL BATTERY
Click here
10. INSTALL INLET AIR CLEANER ASSEMBLY
Click here
11. INSTALL COOL AIR INTAKE DUCT SEAL
Click here
12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Click here
13. INSPECT SHIFT LEVER POSITION
Click here
