INSPECTION

PROCEDURE

1. INSPECT CONNECTING ROD THRUST CLEARANCE

(a) Install the connecting rod cap.

Click here

(b) Using a dial indicator, measure the thrust clearance while moving the connecting rod back and forth.

Standard Thrust Clearance:

0.15 to 0.40 mm (0.00591 to 0.0157 in.)

Maximum Thrust Clearance:

0.50 mm (0.0197 in.)

HINT:

If the thrust clearance is more than the maximum, replace the connecting rod sub-assembly. If necessary, replace the crankshaft.

2. INSPECT CONNECTING ROD OIL CLEARANCE

(a) Clean the crank pin and connecting rod bearing.

(b) Check the crank pin and connecting rod bearing for pitting or scratches.

(c) Lay a strip of Plastigage on the crank pin.

*a

Plastigage

(d) Ensure that the front mark of the connecting rod cap is facing forward.

*a

Front Mark

Front of Engine

(e) Install the connecting rod cap with the 2 bolts.

Click here

NOTICE:

Do not turn the crankshaft.

(f) Remove the 2 bolts and connecting rod cap.

Click here

(g) Measure the Plastigage at its widest point.

Standard Oil Clearance:

0.045 to 0.067 mm (0.00177 to 0.00264 in.)

Maximum Oil Clearance:

0.070 mm (0.00276 in.)

HINT:

  • If the oil clearance is more than the maximum, replace the connecting rod bearings. If necessary, inspect the crankshaft.
  • If replacing a connecting rod bearing, select a new one with the same number as marked on the connecting rod cap. There are 4 sizes of standard connecting rod bearings, marked "1", "2", "3" or "4" accordingly.

Standard Connecting Rod Diameter:

Mark

Specified Condition

1

56.000 to 56.006 mm (2.20472 to 2.20496 in.)

2

56.007 to 56.012 mm (2.20500 to 2.20519 in.)

3

56.013 to 56.018 mm (2.20523 to 2.20543 in.)

4

56.019 to 56.024 mm (2.20547 to 2.20566 in.)

Standard Connecting Rod Bearing Center Wall Thickness:

Mark

Specified Condition

1

1.482 to 1.485 mm (0.05835 to 0.05846 in.)

2

1.486 to 1.488 mm (0.05850 to 0.05858 in.)

3

1.489 to 1.491 mm (0.05862 to 0.05870 in.)

4

1.492 to 1.494 mm (0.05874 to 0.05882 in.)

Standard Crankshaft Pin Diameter:

52.992 to 53.000 mm (2.08630 to 2.08661 in.)

NOTICE:

Completely remove the Plastigage after the measurement.

*a

Plastigage

*b

Mark 1, 2, 3, or 4

3. INSPECT CYLINDER BLOCK FOR WARPAGE

(a) Using a precision straightedge and feeler gauge, check the surfaces which contact the cylinder head gasket for warpage.

Maximum Warpage:

0.07 mm (0.00276 in.)

HINT:

If the warpage is more than the maximum, replace the cylinder block sub-assembly.

4. INSPECT CYLINDER BORE

(a) Using a cylinder gauge, measure the cylinder bore diameter at the positions (A) and (B) in the thrust and axial directions.

*a

Thrust Direction

*b

Axial Direction

*c

10 mm (0.394 in.)

*d

Center

Front of Engine

Reference Diameter (New Parts):

94.000 to 94.012 mm (3.70078 to 3.70125 in.)

Maximum Diameter:

94.130 mm (3.70590 in.)

HINT:

If the average diameter of 4 positions is more than the maximum, replace the cylinder block sub-assembly.

5. INSPECT PISTON

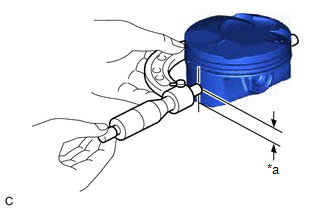

(a) Using a micrometer, measure the piston diameter at a right angle to the piston center line where the distance from the bottom of the piston is as specified.

Distance:

9.2 mm (0.362 in.)

Reference Diameter (New Parts):

93.962 to 93.992 mm (3.69928 to 3.70047 in.)

Minimum Diameter:

93.830 mm (3.69409 in.)

HINT:

If the piston diameter is less than the minimum, replace the piston and piston pin as a set.

*a

Distance

6. INSPECT PISTON OIL CLEARANCE

(a) Measure the cylinder bore diameter in the thrust direction.

(b) Subtract the piston diameter measurement from the cylinder bore diameter measurement.

Reference Oil Clearance (New Parts):

0.008 to 0.050 mm (0.000315 to 0.00197 in.)

Maximum Oil Clearance:

0.075 mm (0.00295 in.)

HINT:

If the oil clearance is more than the maximum, replace all the pistons. If necessary, replace the cylinder block sub-assembly.

7. INSPECT RING GROOVE CLEARANCE

(a) Using a feeler gauge, measure the clearance between a new piston ring set and the wall of the ring groove.

Standard Ring Groove Clearance:

Item

Specified Condition

No. 1 compression ring

0.020 to 0.070 mm (0.000787 to 0.00276 in.)

No. 2 compression ring

0.020 to 0.060 mm (0.000787 to 0.00236 in.)

Oil ring

0.070 to 0.150 mm (0.00276 to 0.00591 in.)

HINT:

If the clearance is not as specified, replace the piston.

8. INSPECT PISTON PIN OIL CLEARANCE

(a) Using a caliper gauge, measure the inside diameter of the piston pin hole.

Standard Piston Pin Hole Inside Diameter:

Mark

Specified Condition

A

21.998 to 22.001 mm (0.86606 to 0.86618 in.)

B

22.002 to 22.004 mm (0.86622 to 0.86630 in.)

C

22.005 to 22.007 mm (0.86634 to 0.86642 in.)

(b) Using a micrometer, measure the piston pin diameter.

Standard Piston Pin Diameter:

Mark

Specified Condition

A

21.997 to 22.000 mm (0.86602 to 0.86614 in.)

B

22.001 to 22.003 mm (0.86618 to 0.86626 in.)

C

22.004 to 22.006 mm (0.86630 to 0.86638 in.)

*a

5.0 mm (0.197 in.)

*b

28 mm (1.10 in.)

(c) Subtract the piston pin diameter measurement from the piston pin hole diameter measurement.

Standard Oil Clearance:

-0.002 to 0.004 mm (-0.0000787 to 0.000157 in.)

Maximum Oil Clearance:

0.015 mm (0.000591 in.)

HINT:

If the oil clearance is more than the maximum, replace the piston and piston pin as a set.

(d) Using a caliper gauge, measure the inside diameter of the connecting rod small end bush.

Standard Bushing Inside Diameter:

Mark

Specified Condition

A

22.005 to 22.008 mm (0.86634 to 0.86645 in.)

B

22.009 to 22.011 mm (0.86649 to 0.86657 in.)

C

22.012 to 22.014 mm (0.86661 to 0.86669 in.)

(e) Subtract the piston pin diameter measurement from the bushing inside diameter measurement.

Standard Oil Clearance:

0.005 to 0.011 mm (0.000197 to 0.000433 in.)

Maximum Oil Clearance:

0.030 mm (0.00118 in.)

HINT:

  • If the oil clearance is more than the maximum, replace the connecting rod small end bush.
  • If necessary, replace the connecting rod sub-assembly and piston sub-assembly with pin.

*A

for Bank 1

*B

for Bank 2

*a

Front Mark

*b

Piston Pin Hole Inside Diameter Mark

*c

Connecting Rod Bushing Inside Diameter Mark

9. INSPECT PISTON RING END GAP

(a) Insert the piston ring into the cylinder bore.

(b) Using a piston, push in the piston ring slightly beyond the bottom of the ring travel, 110 mm (4.33 in.) from the top of the cylinder block sub-assembly.

*1

Piston Ring

*a

110 mm

(c) Using a feeler gauge, measure the end gap.

Standard End Gap:

Item

Specified Condition

No. 1 compression ring

0.22 to 0.27 mm (0.00866 to 0.0106 in.)

No. 2 compression ring

0.70 to 0.75 mm (0.0276 to 0.0295 in.)

Oil ring

0.10 to 0.35 mm (0.00394 to 0.0138 in.)

Maximum End Gap:

Item

Specified Condition

No. 1 compression ring

0.50 mm (0.0197 in.)

No. 2 compression ring

0.85 mm (0.0335 in.)

Oil ring

0.45 mm (0.0177 in.)

HINT:

If the end gap is more than the maximum, replace the piston ring. If the end gap is more than the maximum even with a new piston ring, replace the cylinder block sub-assembly.

10. INSPECT CRANKSHAFT THRUST CLEARANCE

(a) Install the crankshaft bearing caps.

Click here

(b) Using a dial indicator, measure the thrust clearance while prying the crankshaft back and forth with a screwdriver.

Standard Thrust Clearance:

0.04 to 0.24 mm (0.00157 to 0.00945 in.)

Maximum Thrust Clearance:

0.30 mm (0.0118 in.)

Standard Thrust Washer Thickness:

2.43 to 2.48 mm (0.0957 to 0.0976 in.)

HINT:

If the thrust clearance is more than the maximum, replace the crankshaft thrust washer set. If necessary, replace the crankshaft.

11. INSPECT CONNECTING ROD BOLT

(a) Using a vernier caliper, measure the diameter of the connecting rod bolt at several points within the area shown in the illustration.

Standard Diameter:

7.2 to 7.3 mm (0.283 to 0.287 in.)

Minimum Diameter:

7.0 mm (0.276 in.)

HINT:

  • If the diameter is less than the minimum, replace the connecting rod bolt.
  • Diameter measurements should be done at several points.
  • If the diameter is less than the minimum, replace the connecting rod bolt with a new one. Failure to do so may lead to engine damage.
  • If there is any thread deformation, replace the connecting rod bolt with a new one.

*a

Measurement Area

12. INSPECT CRANKSHAFT

(a) Inspect for runout.

(1) Clean the crank journal.

(2) Place the crankshaft on V-blocks.

(3) Using a dial indicator, measure the runout at the center of each journal.

Maximum Runout:

0.06 mm (0.00236 in.)

HINT:

If the runout is more than the maximum, replace the crankshaft.

(b) Inspect the main journals.

(1) Using a micrometer, measure the diameter of each main journal.

Standard Journal Diameter:

60.988 to 61.000 mm (2.40110 to 2.40157 in.)

HINT:

If the diameter is not as specified, check the oil clearance. If necessary, replace the crankshaft.

(2) Check each main journal for taper and out-of-round as shown in the illustration.

Maximum Taper and Out-of-round:

0.02 mm (0.000787 in.)

HINT:

If the taper or out-of-round is more than the maximum, replace the crankshaft.

(c) Inspect the crank pins.

(1) Using a micrometer, measure the diameter of each crank pin.

Standard Crank Pin Diameter:

52.992 to 53.000 mm (2.08630 to 2.08661 in.)

HINT:

If the diameter is not as specified, check the oil clearance. If necessary, replace the crankshaft.

(2) Check each crank pin for taper and out-of-round as shown in the illustration.

Maximum Taper and Out-of-round:

0.02 mm (0.000787 in.)

HINT:

If the taper or out-of-round is more than the maximum, replace the crankshaft.

13. INSPECT CRANKSHAFT OIL CLEARANCE

(a) Check the crank journal and crankshaft bearing for pitting or scratches.

(b) Install the crankshaft bearings.

Click here

(c) Install the crankshaft thrust washer set.

Click here

(d) Place the crankshaft on the cylinder block sub-assembly.

(e) Lay a strip of Plastigage across each journal.

*a

Plastigage

(f) Confirm the front marks and numbers, and install the crankshaft bearing caps on the cylinder block sub-assembly.

HINT:

A number is marked on each crankshaft bearing cap to indicate its installation position.

(g) Install the crankshaft bearing caps.

Click here

NOTICE:

Do not turn the crankshaft.

(h) Remove the crankshaft bearing caps.

Click here

(i) Measure the Plastigage at its widest point.

Standard Oil Clearance:

Item

Specified Condition

No. 1 journal and No. 4 journal

0.019 to 0.029 mm (0.000748 to 0.00114 in.)

No. 2 journal and No. 3 journal

0.025 to 0.035 mm (0.000984 to 0.00138 in.)

Maximum Oil Clearance:

Item

Specified Condition

No. 1 journal and No. 4 journal

0.050 mm (0.00197 in.)

No. 2 journal and No. 3 journal

0.060 mm (0.00236 in.)

NOTICE:

Completely remove the Plastigage after the measurement.

HINT:

If the oil clearance is more than the maximum, replace the crankshaft bearings. If necessary, replace the crankshaft.

*a

Plastigage

(j) If replacing a crankshaft bearing, select a new one with the same number. If the number of the crankshaft bearing cannot be determined, select the correct crankshaft bearing by adding together the numbers imprinted on the cylinder block sub-assembly and crankshaft. Then refer to the following table for the appropriate crankshaft bearing number. There are 5 sizes of standard crankshaft bearings, marked "1", "2", "3", "4" or "5" accordingly.

*a

Number Mark

*b

No. 2 and No. 3 Crankshaft Bearing

*c

No. 1 and No. 4 Crankshaft Bearing

*d

No. 1

*e

No. 2

*f

No. 3

*g

No. 4

*h

20.9 mm (0.823 in.)

*i

17.9 mm (0.705 in.)

-

-

Crankshaft Bearings:

Cylinder block sub-assembly+ Crankshaft

Upper crankshaft bearing to be used

Lower crankshaft bearing to be used

0 to 3

"1"

"1"

4 to 6

"1"

"2"

7 to 9

"2"

"2"

10 to 12

"2"

"3"

13 to 15

"3"

"3"

16 to 18

"3"

"4"

19 to 21

"4"

"4"

22 to 24

"4"

"5"

25 to 28

"5"

"5"

HINT:

EXAMPLE: Cylinder block sub-assembly "12" + Crankshaft "06" = Total number 18 (Use upper bearing "3" and lower bearing "4")

Crankshaft Main Journal Diameter:

Mark

Diameter

"00"

60.999 to 61.000 mm (2.40153 to 2.40157 in.)

"01"

60.998 to 60.999 mm (2.40149 to 2.40153 in.)

"02"

60.997 to 60.998 mm (2.40145 to 2.40149 in.)

"03"

60.996 to 60.997 mm (2.40141 to 2.40145 in.)

"04"

60.995 to 60.996 mm (2.40137 to 2.40141 in.)

"05"

60.994 to 60.995 mm (2.40133 to 2.40137 in.)

"06"

60.993 to 60.994 mm (2.40129 to 2.40133 in.)

"07"

60.992 to 60.993 mm (2.40126 to 2.40129 in.)

"08"

60.991 to 60.992 mm (2.40122 to 2.40126 in.)

"09"

60.990 to 60.991 mm (2.40118 to 2.40122 in.)

"10"

60.989 to 60.990 mm (2.40114 to 2.40118 in.)

"11"

60.988 to 60.989 mm (2.40110 to 2.40114 in.)

Standard Upper Crankshaft Bearing Center Wall Thickness (No. 1 and No. 4 journal):

Mark

Specified Condition

"1"

2.497 to 2.500 mm (0.09831 to 0.09843 in.)

"2"

2.501 to 2.503 mm (0.09846 to 0.09854 in.)

"3"

2.504 to 2.506 mm (0.09858 to 0.09866 in.)

"4"

2.507 to 2.509 mm (0.09870 to 0.09878 in.)

"5"

2.510 to 2.512 mm (0.09882 to 0.09890 in.)

Standard Lower Crankshaft Bearing Center Wall Thickness (No. 1 and No. 4 journal):

Mark

Specified Condition

"1"

2.478 to 2.481 mm (0.09756 to 0.09768 in.)

"2"

2.482 to 2.484 mm (0.09772 to 0.09780 in.)

"3"

2.485 to 2.487 mm (0.09783 to 0.09791 in.)

"4"

2.488 to 2.490 mm (0.09795 to 0.09803 in.)

"5"

2.491 to 2.493 mm (0.09807 to 0.09815 in.)

Standard Upper Crankshaft Bearing Center Wall Thickness (No. 2 and No. 3 journal):

Mark

Specified Condition

"1"

2.476 to 2.479 mm (0.09748 to 0.09760 in.)

"2"

2.480 to 2.482 mm (0.09764 to 0.09772 in.)

"3"

2.483 to 2.485 mm (0.09776 to 0.09783 in.)

"4"

2.486 to 2.488 mm (0.09787 to 0.09795 in.)

"5"

2.489 to 2.491 mm (0.09799 to 0.09807 in.)

Standard Lower Crankshaft Bearing Center Wall Thickness (No. 2 and No. 3 journal):

Mark

Specified Condition

"1"

2.493 to 2.496 mm (0.09815 to 0.09827 in.)

"2"

2.497 to 2.499 mm (0.09831 to 0.09839 in.)

"3"

2.500 to 2.502 mm (0.09843 to 0.09850 in.)

"4"

2.503 to 2.505 mm (0.09854 to 0.09862 in.)

"5"

2.506 to 2.508 mm (0.09866 to 0.09874 in.)

14. INSPECT CRANKSHAFT BEARING CAP SET BOLT

(a) Using a vernier caliper, measure the diameter of the threads at the measurement point.

Standard Diameter:

10.8 to 11.0 mm (0.425 to 0.433 in.)

Minimum Diameter:

10.7 mm (0.421 in.)

Measurement Point (Distance from the Seat):

40 mm (1.57 in.)

HINT:

  • If the diameter is less than the minimum, replace the crankshaft bearing cap set bolt. Failure to do so may lead to engine damage.
  • If there is any thread deformation, replace the crankshaft bearing cap set bolt with a new one.

*a

Measurement Point

*b

40 mm

15. INSPECT NO. 1 OIL NOZZLE SUB-ASSEMBLY

(a) Push the check valve with a pin to check that it is not stuck.

HINT:

If the check valve is stuck, replace the No. 1 oil nozzle sub-assembly.

(b) Push the check valve with a pin to check if it moves smoothly.

HINT:

If the check valve does not move smoothly, clean or replace the No. 1 oil nozzle sub-assembly.

(c) While covering (A), blow air into (B). Check that air does not leak through (C). Perform the check again while covering (B) and blowing air into (A).

HINT:

If air leaks, clean or replace the No. 1 oil nozzle sub-assembly.

(d) Push the check valve while covering (A), and blow air into (B). Check that air passes through (C). Perform the check again while covering (B), pushing the check valve and blowing air into (A).

HINT:

If air does not pass through (C), clean or replace the No. 1 oil nozzle sub-assembly.
    Disassembly
    DISASSEMBLY CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during ...

    Reassembly
    REASSEMBLY PROCEDURE 1. INSTALL NO. 1 OIL NOZZLE SUB-ASSEMBLY (a) Using a 5 mm hexagon socket wrench, install the 3 No. 1 oil nozzle sub-assemblies to the cylinder block sub-assembly with the 3 bol ...

    Other materials:

    Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual > Rear Seat Assembly (for 60/40 Split Seat Type Lh Side): Installation
    INSTALLATION CAUTION / NOTICE / HINT CAUTION: Wear protective gloves. Sharp areas on the seat frame may injure your hands. PROCEDURE 1. INSTALL REAR SEAT ASSEMBLY LH (a) Place the rear seat assembly LH in the cabin. NOTICE: Be careful not to damage the vehicle body. (b) Lift the seat track adjusting ...

    Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual > Automatic Transaxle System: Starter Relay Circuit Short to Battery (P061512)
    DESCRIPTION While the engine is being cranked, battery voltage is applied to terminal STA of the ECM. If the ECM detects the starter control (STA) signal while the vehicle is being driven, it determines that there is a malfunction in the STA circuit. The ECM then illuminates the MIL and stores this ...

    Lexus RX (RX 350L, RX450h) 2016-{YEAR} Owners Manual

    Lexus RX (RX 350L, RX450h) 2016-{YEAR} Repair Manual

    © 2024 Copyright www.lexusrx.net
    0.0173
