Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual: Components
COMPONENTS

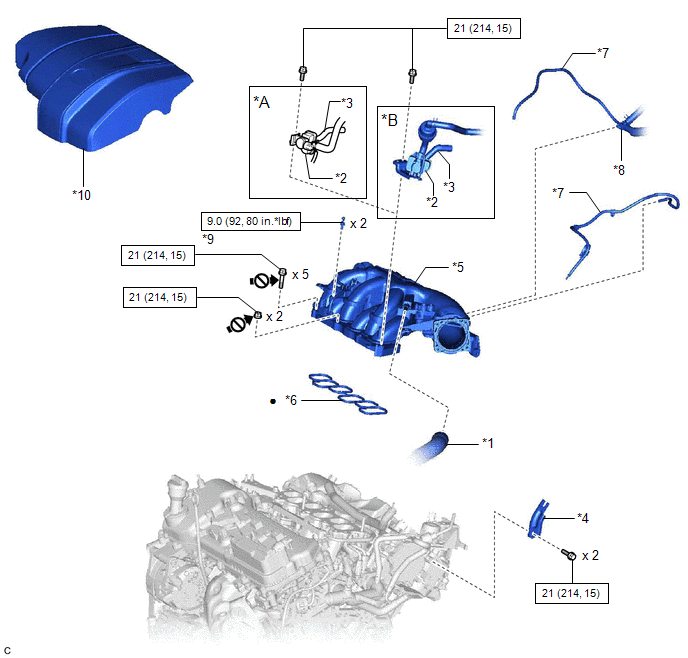

ILLUSTRATION
| *A | for TMMC Made | *B | except TMMC Made |
| *1 | VENTILATION HOSE | *2 | PURGE VALVE (PURGE VSV) |
| *3 | NO. 1 FUEL VAPOR FEED HOSE | *4 | NO. 2 SURGE TANK STAY |
| *5 | INTAKE AIR SURGE TANK ASSEMBLY | *6 | AIR SURGE TANK TO INTAKE MANIFOLD GASKET |
| *7 | VACUUM HOSE SUB-ASSEMBLY | *8 | NO. 2 AIR TUBE |
| *9 | NO. 1 V-BANK COVER BRACKET | *10 | V-BANK COVER SUB-ASSEMBLY |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
.png) | Do not apply lubricants (to the threaded parts) | - | - |
ILLUSTRATION
| *1 | STUD BOLT | *2 | NO. 1 INTAKE MANIFOLD TO HEAD GASKET |
| *3 | INTAKE MANIFOLD | *4 | INJECTOR VIBRATION INSULATOR |
| *5 | NO. 1 DELIVERY PIPE SPACER | *6 | FUEL DELIVERY PIPE SUB-ASSEMBLY |
| *7 | FUEL TUBE SUB-ASSEMBLY | *8 | NO. 2 ENGINE MOUNTING STAY RH |
| *9 | WIRE HARNESS CLAMP BRACKET | *10 | NO. 5 ENGINE WIRE |
| | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
Intake Manifold
...
Installation
INSTALLATION PROCEDURE 1. INSTALL STUD BOLT HINT: If a stud bolt is deformed or the threads are damaged, replace it. (a) Using an E8 "TORX" socket wrench, install the 2 stud bolts to the intake man ...
