Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: Removal

REMOVAL

PROCEDURE

1. REMOVE FRONT FENDER APRON SEAL RH

Click here

2. DRAIN ENGINE OIL

Click here

3. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY

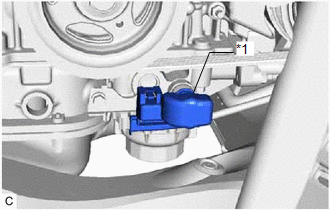

(a) Disconnect the wire harness protector.

*1

Wire Harness Protector

(b) Disconnect the engine oil pressure switch assembly connector.

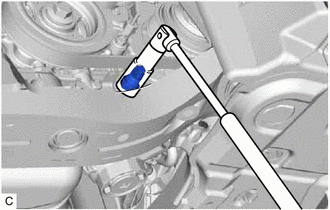

(c) Using a 24 mm deep socket wrench, remove the engine oil pressure switch assembly.

    Components
    COMPONENTS ILLUSTRATION *1 ENGINE OIL PRESSURE SWITCH ASSEMBLY *2 FRONT FENDER APRON SEAL RH *3 WIRE HARNESS PROTECTOR - - N*m (kgf*cm, ft*lbf): Specified torque Adhesi ...

    Inspection
    INSPECTION PROCEDURE 1. INSPECT ENGINE OIL PRESSURE SWITCH ASSEMBLY (a) Disconnect the wire harness protector. *1 Wire Harness Protector (b) Disconnect the engine oil pressu ...
