PARTS LOCATION

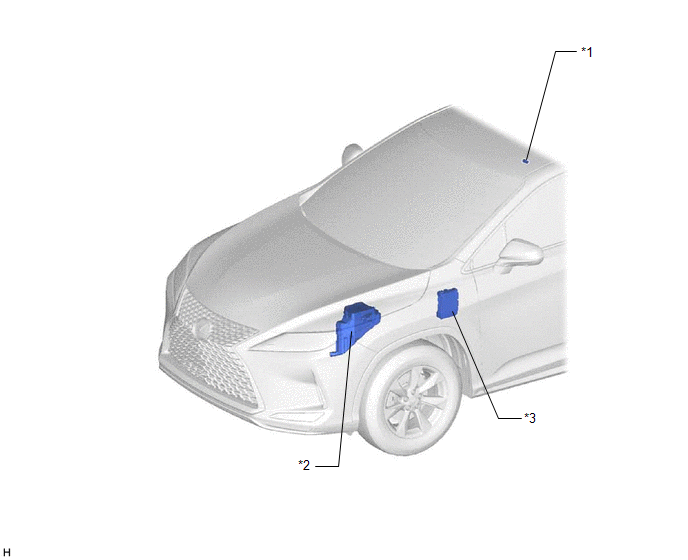

ILLUSTRATION
*1 | TELEPHONE MICROPHONE ASSEMBLY | *2 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - AMP FUSE - ECU-IG1 NO. 8 FUSE - RADIO NO. 1 FUSE - RADIO NO. 2 FUSE |
*3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-ACC FUSE - ECU-DCC NO. 2 FUSE - METER FUSE - METER-IG2 FUSE - PANEL FUSE | - | - |
ILLUSTRATION
*1 | NAVIGATION ANTENNA ASSEMBLY | *2 | SPIRAL CABLE SUB-ASSEMBLY |
*3 | STEERING PAD SWITCH ASSEMBLY | *4 | COMBINATION METER ASSEMBLY |
*5 | MULTI-DISPLAY ASSEMBLY | *6 | RADIO RECEIVER ASSEMBLY |
*7 | CLOCK ASSEMBLY | *8 | REMOTE TOUCH (REMOTE OPERATION CONTROLLER ASSEMBLY) |
*9 | NO. 1 STEREO JACK ADAPTER ASSEMBLY | *10 | PARKING ASSIST ECU (w/ Panoramic View Monitor System) |
*11 | DLC3 | *12 | HEADUP DISPLAY (METER MIRROR SUB-ASSEMBLY) (w/ Headup Display System) |
*13 | NAVIGATION ECU | *14 | NO. 1 NAVIGATION WIRE |
*15 | - GPS | *16 | ANTENNA CORD SUB-ASSEMBLY |
ILLUSTRATION
w/o Rear No. 2 Seat *1 | FRONT NO. 1 SPEAKER ASSEMBLY LH | *2 | FRONT NO. 1 SPEAKER ASSEMBLY RH |
*3 | FRONT NO. 2 SPEAKER ASSEMBLY LH | *4 | FRONT NO. 2 SPEAKER ASSEMBLY RH |
*5 | FRONT NO. 3 SPEAKER ASSEMBLY | *6 | REAR NO. 3 SPEAKER ASSEMBLY (except 9 Speakers) |
*7 | QUARTER SIDE SPEAKER ASSEMBLY LH (for 15 Speakers) | *8 | QUARTER SIDE SPEAKER ASSEMBLY RH (for 15 Speakers) |
*9 | REAR SPEAKER ASSEMBLY LH | *10 | REAR SPEAKER ASSEMBLY RH |
*11 | REAR NO. 2 SPEAKER ASSEMBLY LH | *12 | REAR NO. 2 SPEAKER ASSEMBLY RH |
*13 | STEREO COMPONENT AMPLIFIER ASSEMBLY | *14 | REAR TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System) |
ILLUSTRATION
w/ Rear No. 2 Seat *1 | FRONT NO. 1 SPEAKER ASSEMBLY LH | *2 | FRONT NO. 1 SPEAKER ASSEMBLY RH |
*3 | FRONT NO. 2 SPEAKER ASSEMBLY LH | *4 | FRONT NO. 2 SPEAKER ASSEMBLY RH |
*5 | FRONT NO. 3 SPEAKER ASSEMBLY | *6 | REAR NO. 3 SPEAKER ASSEMBLY (except 9 Speakers) |
*7 | QUARTER SIDE SPEAKER ASSEMBLY LH (for 15 Speakers) | *8 | QUARTER SIDE SPEAKER ASSEMBLY RH (for 15 Speakers) |
*9 | REAR SPEAKER ASSEMBLY LH | *10 | REAR SPEAKER ASSEMBLY RH |
*11 | REAR NO. 2 SPEAKER ASSEMBLY LH | *12 | REAR NO. 2 SPEAKER ASSEMBLY RH |
*13 | STEREO COMPONENT AMPLIFIER ASSEMBLY | *14 | REAR TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System) |
ILLUSTRATION
w/o Rear No. 2 Seat *1 | RADIO SETTING CONDENSER | *2 | WINDOW GLASS ANTENNA WIRE |
*3 | NO. 2 ANTENNA CORD SUB-ASSEMBLY | *4 | NO. 6 ANTENNA CORD SUB-ASSEMBLY |
*5 | NO. 3 ANTENNA CORD SUB-ASSEMBLY | *6 | NO. 4 ANTENNA CORD SUB-ASSEMBLY |
*7 | NO. 1 AMPLIFIER ANTENNA ASSEMBLY | *8 | REAR SPOILER SUB-ASSEMBLY - FM Main - AM |
*9 | - FM Sub | - | - |
ILLUSTRATION
w/ Rear No. 2 Seat *1 | RADIO SETTING CONDENSER | *2 | WINDOW GLASS ANTENNA WIRE |
*3 | NO. 2 ANTENNA CORD SUB-ASSEMBLY | *4 | NO. 3 ANTENNA CORD SUB-ASSEMBLY |
*5 | NO. 4 ANTENNA CORD SUB-ASSEMBLY | *6 | NO. 1 AMPLIFIER ANTENNA ASSEMBLY |
*7 | REAR SPOILER SUB-ASSEMBLY - FM Main - AM | *8 | - FM Sub |
*9 | NO. 5 ANTENNA CORD SUB-ASSEMBLY | - | - |
