DESCRIPTION

The steering lock actuator or upper bracket assembly activates the steering lock motor and moves the lock bar into the steering column to lock the steering.

When the steering lock is operating, the steering may not lock when the lock bar is not aligned with the lock hole of the steering column. In this case, the steering can be locked by turning the steering wheel a little, as is done for a vehicle with a mechanical key, to change the position of the lock hole.

Related Data List and Active Test Items

Problem Symptom

Data List Item

Active Test Item

Steering Lock does not Lock
Smart Access
  • Lock Request Receive
  • S Code Check
  • L Code Check
  • Steering Lock
Main Body
  • FL Door Courtesy SW
Power Source Control
  • Shift P Signal

-

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • When using the Techstream with the engine switch off, connect the Techstream to the vehicle and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the Techstream and the vehicle begins. Then select the Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Smart Access. While using the Techstream, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the Techstream and the vehicle.
  • Perform either of the following operations to lock/unlock the steering:
    • To unlock the steering, carry the key and turn the engine switch on (ACC) or on (IG).
    • To lock the steering, turn the engine switch off with the shift lever in P, and then open a door.
  • Make sure that no DTCs are output. If any DTCs are output, proceed to the Diagnostic Trouble Code Chart.

    Click here

  • The steering lock system uses LIN communication. First perform the inspections in "How to Proceed with Troubleshooting" to confirm that there are no communication malfunctions before proceeding with troubleshooting.

    Click here

  • When replacing the steering lock ECU (steering lock actuator or upper bracket assembly), certification ECU (smart key ECU assembly) or ID code box (immobiliser code ECU), registration must be performed.

    Click here

  • After performing repairs, confirm that the problem does not recur.
  • Inspect the fuses for circuits related to this system before performing the following procedure.
  • When disconnecting the cable from the negative (-) battery terminal, some systems need to be initialized after the cable is reconnected.

    Click here

PROCEDURE

1.

READ VALUE USING TECHSTREAM (LOCK REQUEST RECEIVE)

(a) Use the Data List to check if the steering lock command is functioning properly.

Body Electrical > Smart Access > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

Lock Request Receive

Reception state of steering lock request signal by certification ECU (smart key ECU assembly) sent to ID code box (immobiliser code ECU)

HINT:

  • The reception state is maintained for 10 seconds.
  • When 10 seconds or more have elapsed after receiving the signal, the item changes to "NG".

OK or NG

OK: Lock request received within 10 seconds of opening any door with engine switch off and shift lever in P

NG: Except above

If this item does not change to "OK" even though the steering lock conditions are met, the certification ECU (smart key ECU assembly) may be malfunctioning.
Body Electrical > Smart Access > Data List

Tester Display

Lock Request Receive

OK:

The certification ECU (smart key ECU assembly) receives a lock request signal within 10 seconds of turning the engine switch from on (IG) to on (ACC) or off and opening a door with the shift lever in P, and OK is displayed on the Techstream screen.

NG

GO TO STEP 10

OK

2.

READ VALUE USING TECHSTREAM (S CODE CHECK)

(a) Use the Data List to check if S code certification is functioning properly.

Body Electrical > Smart Access > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

S Code Check

Verification result between certification ECU (smart key ECU assembly) and ID code box (immobiliser code ECU)

OK or NG

OK: Verification result normal

NG: Verification result abnormal

When a malfunction is present:

  • The ID code for the certification ECU (smart key ECU assembly) or ID code box (immobiliser code ECU) is not registered or the certification ECU (smart key ECU assembly) or ID code box (immobiliser code ECU) is malfunctioning.
  • The steering cannot be locked.
  • The steering cannot be unlocked (the engine cannot be started).
Body Electrical > Smart Access > Data List

Tester Display

S Code Check

OK:

OK is displayed on the Techstream.

HINT:

Reasons for verification failure:

  • The certification ECU (smart key ECU assembly) or ID code box (immobiliser code ECU) is malfunctioning.
  • There is a problem with the communication between ECUs.
  • An ECU is replaced, but is not registered.
  • An ECU is replaced with an ECU which has a code already stored in it.
NG

GO TO STEP 9

OK

3.

READ VALUE USING TECHSTREAM (L CODE CHECK)

(a) Use the Data List to check if L code certification is functioning properly.

Body Electrical > Smart Access > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

L Code Check

Verification result between ID code box (immobiliser code ECU) and steering lock ECU (steering lock actuator or upper bracket assembly)

OK or NG

OK: Verification result normal

NG: Verification result abnormal

When a malfunction is present:

  • The ID code for the ID code box (immobiliser code ECU) or steering lock ECU (steering lock actuator or upper bracket assembly) is not registered or the ID code box (immobiliser code ECU) or steering lock ECU (steering lock actuator or upper bracket assembly) is malfunctioning.
  • The steering cannot be locked.
  • The steering cannot be unlocked (the engine cannot be started).
Body Electrical > Smart Access > Data List

Tester Display

L Code Check

OK:

OK is displayed on the Techstream.

HINT:

Reasons for verification failure:

  • The steering lock ECU (steering lock actuator or upper bracket assembly) or ID code box (immobiliser code ECU) is malfunctioning.
  • There is a problem with the communication between ECUs.
  • An ECU is replaced, but is not registered.
  • An ECU is replaced with an ECU which has a code already stored in it.
NG

GO TO STEP 8

OK

4.

CHECK HARNESS AND CONNECTOR (POWER SOURCE TERMINAL)

(a) Disconnect the L1 steering lock ECU (steering lock actuator or upper bracket assembly) connector.

(b) Measure the resistance and voltage according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

L1-1 (GND) - Body ground

Always

Below 1 Ω

NOTICE:

If the result is not as specified, check for looseness in the ground cable connection.

Standard Voltage:

Tester Connection

Condition

Specified Condition

L1-7 (B) - Body ground

Always

11 to 14 V

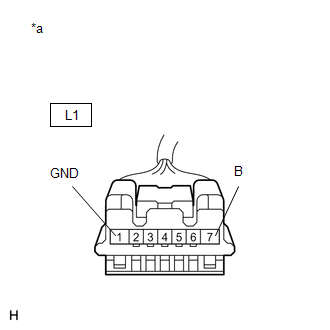

*a

Front view of wire harness connector

(to Steering Lock ECU Steering Lock Actuator or Upper Bracket Assembly))
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

5.

INSPECT STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY)

(a) Reconnect the L1 steering lock ECU (steering lock actuator or upper bracket assembly) connector.

(b) Check the signal waveform according to the condition(s) in the table below.

Standard Frequency:

Item

Content

Tester Connection

L1-3 (IGE) - L1-1 (GND)

Tool Setting

2 V/DIV., 200 ms./DIV.

Vehicle Condition

Steering lock motor not operating → Operating → Not operating

HINT:

  • When taking measurements when the lock motor is stopped, it is not necessary to perform any operations.
  • In order to take measurements when the lock motor is operating, perform either of the following operations:
    • To unlock the steering, carry the key and turn the engine switch on (ACC) or on (IG).
    • To lock the steering, turn the engine switch off with the shift lever in P, and then open a door.

*a

Component with harness connected

(Steering Lock ECU (Steering Lock Actuator or Upper Bracket Assembly))

*b

Steering Lock Motor not Operating

*c

Steering Lock Motor Operating
OK

REPLACE STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY)

NG

6.

CHECK HARNESS AND CONNECTOR (STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY) - CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

(b) Disconnect the L1 steering lock ECU (steering lock actuator or upper bracket assembly) connector.

(c) Disconnect the J41 certification ECU (smart key ECU assembly) connector.

(d) Check for deformation and corrosion of the connector case and terminals.

OK:

There is no deformation or corrosion of the connector case or terminals.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

L1-3 (IGE) - J41-25 (SLR+)

Always

Below 1 Ω

L1-3 (IGE) or J41-25 (SLR+) - Body ground

Always

10 kΩ or higher
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

7.

INSPECT STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY)

(a) Reconnect the L1 steering lock ECU (steering lock actuator or upper bracket assembly) connector.

(b) Reconnect the J41 certification ECU (smart key ECU assembly) connector.

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

L1-3 (IGE) - Body ground

Always

11 to 14 V

*a

Component with harness connected

(Steering Lock ECU (Steering Lock Actuator or Upper Bracket Assembly))
OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

NG

REPLACE STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY)

8.

REPLACE STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY)

(a) Replace the steering lock ECU (steering lock actuator or upper bracket assembly) with a new one.

Click here

(b) Perform registration.

Click here

(c) Use the Data List to check if L code certification is functioning properly.

Body Electrical > Smart Access > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

L Code Check

Verification result between ID code box (immobiliser code ECU) and steering lock ECU (steering lock actuator or upper bracket assembly)

OK or NG

OK: Verification result normal

NG: Verification result abnormal

When a malfunction is present:

  • The ID code for the ID code box (immobiliser code ECU) or steering lock ECU (steering lock actuator or upper bracket assembly) is not registered or the ID code box (immobiliser code ECU) or steering lock ECU (steering lock actuator or upper bracket assembly) is malfunctioning.
  • The steering cannot be locked.
  • The steering cannot be unlocked (the engine cannot be started).
Body Electrical > Smart Access > Data List

Tester Display

L Code Check

OK:

OK is displayed on the Techstream.

OK

END
NG

REPLACE ID CODE BOX (IMMOBILISER CODE ECU)

9.

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

(a) Replace the certification ECU (smart key ECU assembly) with a new one.

Click here

(b) Perform registration.

Click here

(c) Use the Data List to check if S code certification is functioning properly.

Body Electrical > Smart Access > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

S Code Check

Verification result between certification ECU (smart key ECU assembly) and ID code box (immobiliser code ECU)

OK or NG

OK: Verification result normal

NG: Verification result abnormal

When a malfunction is present:

  • The ID code for the certification ECU (smart key ECU assembly) or ID code box (immobiliser code ECU) is not registered or the certification ECU (smart key ECU assembly) or ID code box (immobiliser code ECU) is malfunctioning.
  • The steering cannot be locked.
  • The steering cannot be unlocked (the engine cannot be started).
Body Electrical > Smart Access > Data List

Tester Display

S Code Check

OK:

OK is displayed on the Techstream.

OK

END
NG

REPLACE ID CODE BOX (IMMOBILISER CODE ECU)

10.

READ VALUE USING TECHSTREAM (DOOR COURTESY SW)

(a) Using the Techstream, check the following main body ECU (multiplex network body ECU) Data List item by opening and closing the driver door to confirm the state of the front door courtesy light switch assembly.

Body Electrical > Main Body > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

FL Door Courtesy SW

Front door courtesy light switch assembly LH

ON or OFF

ON: Front door LH open

OFF: Front door LH closed

If this item does not change according to the actual state of the driver door, there is a malfunction in the door courtesy light switch or related part.
Body Electrical > Main Body > Data List

Tester Display

FL Door Courtesy SW

OK:

The Data List item changes in accordance with the opening and closing of the driver door.

NG

GO TO LIGHTING SYSTEM (DOOR COURTESY SWITCH CIRCUIT)

OK

11.

READ VALUE USING TECHSTREAM (SHIFT P SIGNAL)

(a) Move the shift lever to P.

(b) Read the Data List according to the display on the Techstream.

Body Electrical > Power Source Control > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

Shift P Signal

Shift position (P) signal

ON or OFF

ON: Shift lever in P

OFF: Shift lever not in P
  • Use this item to determine if the shift position switch is malfunctioning.
  • The engine cannot be started when this item is "OFF".
Body Electrical > Power Source Control > Data List

Tester Display

Shift P Signal

OK:

ON is displayed on the Techstream.

NG

GO TO SMART ACCESS SYSTEM WITH PUSH-BUTTON START (PROBLEM SYMPTOMS TABLE)

OK

12.

READ VALUE USING TECHSTREAM (STEERING LOCK)

(a) Check that the steering is unlocked.

(b) Read the Data List according to the display on the Techstream.

Body Electrical > Smart Access > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

Steering Lock

State of whether steering lock ECU (steering lock actuator or upper bracket assembly) determined steering is locked

Set or Unset

Set: Steering locked

Unset: Steering unlocked

If this item displays "Unset", the steering is not locked.
Body Electrical > Smart Access > Data List

Tester Display

Steering Lock

OK:

Set is displayed on the Techstream.

NG

REPLACE STEERING LOCK ECU (STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY)

OK

13.

READ VALUE USING TECHSTREAM (LOCK REQUEST RECEIVE)

(a) Replace the certification ECU (smart key ECU assembly) with a new one.

Click here

(b) Perform registration.

Click here

(c) Turn the engine switch on (IG).

(d) Use the Data List to check if the steering lock command is functioning properly.

Body Electrical > Smart Access > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

Lock Request Receive

Reception state of steering lock request signal by certification ECU (smart key ECU assembly) sent to ID code box (immobiliser code ECU)

HINT:

  • The reception state is maintained for 10 seconds.
  • When 10 seconds or more have elapsed after receiving the signal, the item changes to "NG".

OK or NG

OK: Lock request received within 10 seconds of opening any door with engine switch off and shift lever in P

NG: Except above

If this item does not change to "OK" even though the steering lock conditions are met, the certification ECU (smart key ECU assembly) may be malfunctioning.
Body Electrical > Smart Access > Data List

Tester Display

Lock Request Receive

OK:

The certification ECU (smart key ECU assembly) receives a lock request signal within 10 seconds of turning the engine switch from on (IG) to on (ACC) or off and opening a door with the shift lever in P, and OK is displayed on the Techstream screen.

OK

END
NG

REPLACE ID CODE BOX (IMMOBILISER CODE ECU)

    Problem Symptoms Table
    PROBLEM SYMPTOMS TABLE HINT: Use the table below to help determine the cause of problem symptoms. If multiple suspected areas are listed, the potential causes of the symptoms are listed in order of ...

    System Description
    SYSTEM DESCRIPTION UNLOCK OPERATION CONDITIONS FOR STEERING LOCK (a) When the following condition is met, the unlock operation is performed. The engine switch is on (ACC) or on (IG). HINT: When the ...

    Other materials:

    Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual > Lighting System (w/ Automatic Headlight Beam Level Control System): Parking Light/Daytime Running Light Circuit
    DESCRIPTION Parking light function: When the main body ECU (multiplex network body ECU) receives the light control switch position signal, it sends an illumination request signal to the No. 1 headlight ECU sub-assembly and illuminates the parking lights. Daytime running light function: When ...

    Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual > Vehicle Stability Control System: Steering Angle Sensor Module Signal Stuck In Range (C05262A)
    DESCRIPTION The skid control ECU (brake actuator assembly) receives signals from the steering angle sensor via CAN communication. HINT: When a malfunction occurs in the communication line to the steering angle sensor, U012687 is output. If a DTC related to the CAN communication line is output, first ...

    Lexus RX (RX 350L, RX450h) 2016-{YEAR} Owners Manual

    Lexus RX (RX 350L, RX450h) 2016-{YEAR} Repair Manual

    © 2024 Copyright www.lexusrx.net
    0.0156
