Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual: Components
COMPONENTS
ILLUSTRATION
.png)

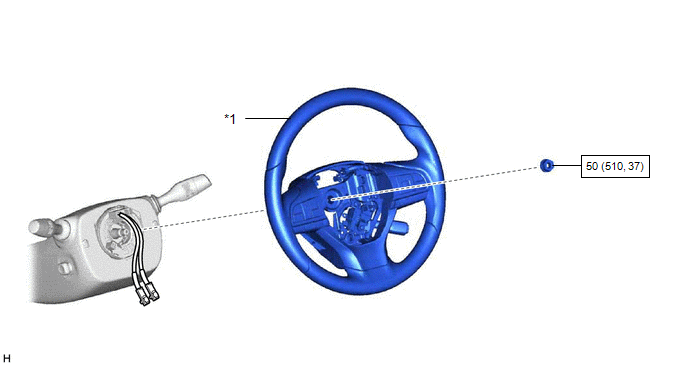

| *1 | STEERING WHEEL ASSEMBLY | - | - |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | STEERING PAD SWITCH ASSEMBLY | *2 | CRUISE CONTROL MAIN SWITCH |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | NO. 1 SWITCH WIRE | *2 | SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) |
| *3 | STEERING VIBRATION AND HEATER ECU | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| ★ | Precoated Part | - | - |
Steering Wheel
...
Installation
INSTALLATION CAUTION / NOTICE / HINT NOTICE:
Do not replace the spiral cable with sensor sub-assembly with the battery connected and the engine switch on (IG).
Do not rotate the spiral cable with ...
