Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual: Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. PRECAUTION

NOTICE:

After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click here

2. INSTALL FRONT DOOR FRONT WINDOW FRAME MOULDING

Click here

3. INSTALL COWL SIDE TRIM BOARD

Click here

4. INSTALL FRONT DOOR SCUFF PLATE

w/o Rear No. 2 Seat:

Click here

w/ Rear No. 2 Seat:

Click here

5. INSTALL FRONT DOOR OUTSIDE MOULDING SUB-ASSEMBLY

Click here

6. REPAIR INSTRUCTION

Click here

7. INSTALL NO. 1 BLACK OUT TAPE

Click here

8. INSTALL FRONT DOOR STRIPE

Click here

9. INSTALL FRONT DOOR REAR OUTSIDE STRIPE

Click here

10. INSTALL FRONT DOOR UPPER WINDOW FRAME MOULDING

Click here

11. INSTALL FRONT DOOR REAR WINDOW FRAME MOULDING

Click here

12. INSTALL FRONT DOOR BELT MOULDING ASSEMBLY

Click here

13. INSTALL FRONT DOOR PANEL CUSHION

(a) Engage the claw to install the front door panel cushion.

14. INSTALL FRONT DOOR FIX WINDOW GLASS

(a) Install the front door fix window glass to the front door fix window weatherstrip.

(b) Install the front door fix window glass with the front door fix window weatherstrip as shown in the illustration.

Install in this Direction

15. INSTALL FRONT DOOR FRONT LOWER FRAME SUB-ASSEMBLY

(a) Install the front door front lower frame sub-assembly with the screw and 2 bolts.

Bolt

Screw

Torque:

Bolt :

6.2 N·m {63 kgf·cm, 55 in·lbf}

16. INSTALL UPPER DOOR FRAME GARNISH

(a) Engage the 3 claws to install the upper door frame garnish.

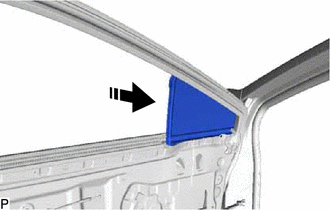

17. INSTALL FRONT DOOR VENT SEAL

(a) Install a new front door vent seal.

18. INSTALL FRONT DOOR PANEL PROTECTOR

(a) Install a new front door panel protector.

19. INSTALL FRONT DOOR WEATHERSTRIP

(a) Clean the front door panel.

(b) Remove the release paper from a new front door weatherstrip.

HINT:

After removing the release paper, keep the exposed adhesive free from foreign matter.

(c) Engage the 25 clips to install the front door weatherstrip.

Double-sided Tape

20. INSTALL FRONT DOOR CHECK ASSEMBLY

(a) Apply MP grease to the sliding parts of the front door check assembly.

(b) Clean the bolt hole in the vehicle body.

(c) Clean the threads of the bolt.

(d) Apply adhesive to the threads of the bolt.

Adhesive:

Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

(e) Install the front door check assembly with the 2 nuts and bolt.

Nut

Bolt

Torque:

Bolt :

29 N·m {296 kgf·cm, 21 ft·lbf}

Nut :

8.0 N·m {82 kgf·cm, 71 in·lbf}

21. INSTALL FRONT DOOR LOCK OPEN ROD

(a) Install the front door lock open rod as shown in the illustration.

Install in this Direction (1)

Install in this Direction (2)

22. INSTALL FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY

(a) Apply MP grease to the sliding parts on the front door outside handle frame sub-assembly.

(b) Engage the claw as shown in the illustration.

*A

Outside

*B

Inside

(c) Using a T30 "TORX" socket wrench, install the front door outside handle frame sub-assembly with the screw.

Torque:

4.0 N·m {41 kgf·cm, 35 in·lbf}

23. INSTALL FRONT DOOR LOCK WITH MOTOR ASSEMBLY

Click here

24. INSTALL FRONT DOOR REAR OUTSIDE HANDLE PAD

(a) Engage the 3 guides as shown in the illustration.

Install in this Direction (1)

Install in this Direction (2)

(b) Engage the claw to install the front door rear outside handle pad.

25. INSTALL FRONT DOOR FRONT OUTSIDE HANDLE PAD

(a) Engage the 3 claws to install the front door front outside handle pad.

26. INSTALL FRONT DOOR OUTSIDE HANDLE COVER (for Front Passenger Side)

(a) Engage the 2 guides and claw.

(b) Using a T30 "TORX" socket wrench, install the front door outside handle cover with the screw.

Torque:

4.0 N·m {41 kgf·cm, 35 in·lbf}

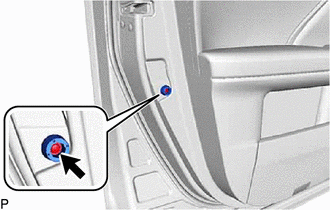

(c) Install the hole plug.

27. INSTALL FRONT DOOR LOCK CYLINDER ASSEMBLY (for Driver Side)

(a) Using a T30 "TORX" socket wrench, install the front door lock cylinder assembly with the screw.

Torque:

4.0 N·m {41 kgf·cm, 35 in·lbf}

(b) Install the hole plug.

28. INSTALL FRONT DOOR OUTSIDE HANDLE ASSEMBLY

(a) Insert the front end of the front door outside handle assembly into the front door outside handle frame sub-assembly.

Install in this Direction

(b) Insert the rear end of the front door outside handle assembly into the front door outside handle frame sub-assembly, then slide the front door outside handle assembly toward the front of the vehicle to install it.

(c) Move the lever as shown in the illustration and engage the 2 claws to lock the front door outside handle assembly.

Engage in this Direction

(d) Connect the connector.

(e) Engage the 2 claws.

(f) Engage the clamp.

29. INSTALL FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY

(a) Engage the guide as shown in the illustration.

Install in this Direction

(b) Install the front door rear lower frame sub-assembly with the 2 bolts.

Torque:

6.2 N·m {63 kgf·cm, 55 in·lbf}

30. INSTALL FRONT DOOR GLASS RUN

(a) Install the front door glass run.

31. INSTALL FRONT DOOR WINDOW REGULATOR ASSEMBLY

(a) Apply MP grease to the sliding parts of the front door window regulator assembly.

(b) Temporarily install the temporary bolt to the front door window regulator assembly.

(c) Temporarily install the front door window regulator assembly with the 5 bolts.

*a

Temporary Bolt

(d) Tighten the temporary bolt and 5 bolts to install the front door window regulator assembly.

HINT:

Tighten the bolts in the order shown in the illustration.

Torque:

8.0 N·m {82 kgf·cm, 71 in·lbf}

(e) Connect the connector.

(f) Engage the 2 claws to install the front door No. 2 service hole cover.

32. INSTALL FRONT DOOR GLASS SUB-ASSEMBLY

(a) for Driver Side:

(1) Connect the multiplex network master switch assembly.

(b) for Front Passenger Side:

(1) Connect the power window regulator switch assembly.

(c) Connect the cable to the negative (-) battery terminal.

(d) Turn the engine switch on (IG).

(e) Move the front door window regulator assembly so that the door glass bolt holes can be seen.

(f) Turn the engine switch off.

(g) Disconnect the cable from the negative (-) battery terminal.

(h) for Driver Side:

(1) Disconnect the multiplex network master switch assembly.

(i) for Front Passenger Side:

(1) Disconnect the power window regulator switch assembly.

(j) Insert the front door glass sub-assembly into the front door panel along the front door glass run as shown in the illustration.

Install in this Direction (1)

Install in this Direction (2)

(k) Install the front door glass sub-assembly with the 2 bolts.

Torque:

8.0 N·m {82 kgf·cm, 71 in·lbf}

(l) Install the hole plug.

33. INSTALL DOOR SIDE AIRBAG SENSOR

Click here

34. INSTALL FRONT DOOR SERVICE HOLE COVER

(a) Engage the 5 clips to install the front door service hole cover.

(b) Engage the 5 clamps.

(c) Turn the front door weatherstrip clip 45 degrees to install the 4 front door weatherstrip clip as shown in the illustration.

(d) Connect the connector.

35. INSTALL FRONT DOOR NO. 1 TRIM BRACKET

(a) Install the front door No. 1 trim bracket with the 2 screws.

36. INSTALL FRONT NO. 1 SPEAKER ASSEMBLY

Click here

37. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY

Click here

38. INSTALL OUTER MIRROR INSTALL HOLE COVER

Click here

39. INSTALL OUTER MIRROR PROTECTOR

Click here

40. INSTALL OUTER MIRROR CONTROL ECU ASSEMBLY

Click here

41. INSTALL FRONT DOOR TRIM POCKET

(a) Install front door trim pocket with the 8 screws.

42. INSTALL DOOR LOCK CONTROL KNOB BEZEL

(a) Engage the 2 claws to install the door lock control knob bezel as shown in the illustration.

Install in this Direction

43. INSTALL FRONT DOOR AIR DUCT

(a) Engage the guide.

(b) Install the front door air duct with the 4 screws.

44. INSTALL FRONT DOOR INNER GLASS WEATHERSTRIP

(a) Engage the 6 claws to install the front door inner glass weatherstrip as shown in the illustration.

45. INSTALL SEAT MEMORY SWITCH (w/ Memory)

Click here

46. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY

(a) Engage the 2 claws as shown in the illustration to connect the front door inside locking cable assembly to the front door trim board sub-assembly.

Install in this Direction

(b) Connect the front door lock remote control cable assembly to the front door inside handle sub-assembly as shown in the illustration.

Install in this Direction

(c) Engage the 10 clips to install the front door trim board sub-assembly as shown in the illustration.

Install in this Direction

(d) Install the 3 screws.

47. INSTALL FRONT DOOR NO. 1 STIFFENER CUSHION

(a) Install the front door No. 1 stiffener cushion with the screw.

48. INSTALL COURTESY LIGHT ASSEMBLY

Click here

49. INSTALL DOOR ARMREST COVER

(a) Install the door armrest cover.

50. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

(a) Connect the connector.

(b) Engage the 4 guides and 4 clips to install the multiplex network master switch assembly with front door upper armrest base panel.

51. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

(a) Connect the connector.

(b) Engage the 2 claws to install the power window regulator switch assembly with front door upper armrest base panel.

52. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG

(a) Engage the 3 claws to install the front door inside handle bezel plug.

53. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click here

54. INITIALIZE POWER WINDOW CONTROL SYSTEM

Click here

55. INSPECT POWER WINDOW OPERATION

Click here

56. INSPECT SRS WARNING LIGHT

Click here

57. PERFORM INITIALIZATION (w/ Panoramic View Monitor System)

Click here

58. ADJUST SIDE TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

Click here

    Disassembly
    DISASSEMBLY CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during ...
