Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: Rear Wheel House Plate

Components

COMPONENTS

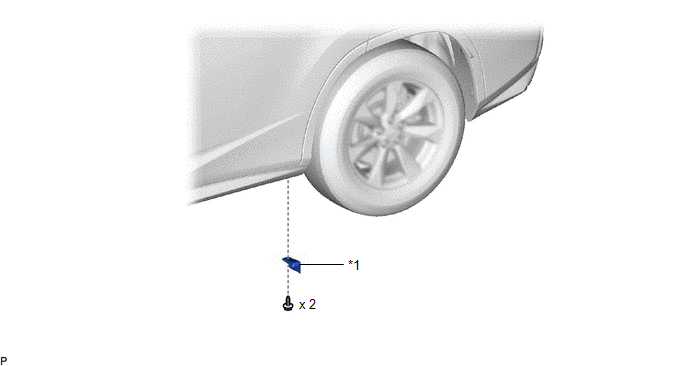

ILLUSTRATION

*1

NO. 6 ROCKER PANEL MOULDING PROTECTOR

-

-

Removal

REMOVAL

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE NO. 6 ROCKER PANEL MOULDING PROTECTOR

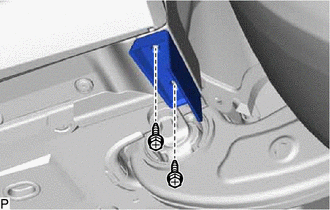

(a) Remove the 2 screws and No. 6 rocker panel moulding protector.

    Removal
    REMOVAL PROCEDURE 1. REMOVE BACK WINDOW UPPER PANEL TRIM (w/o Rear No. 2 Seat) Click here 2. REMOVE BACK WINDOW UPPER PANEL TRIM (w/ Rear No. 2 Seat) Click here 3. REMOVE REAR SPOILER SUB-ASSEMB ...
