Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual: Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during rear combination light assembly removal/installation are shown below.
Necessary Procedures After Parts Removed/Installed/Replaced| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Disconnect cable from negative battery terminal | Memorize steering angle neutral point | Lane Control System | |
| Pre-collision system | |||
| Intelligent clearance sonar system*1 | |||
| Parking Assist Monitor System | | ||
| Panoramic View Monitor System | | ||
| Lighting System (w/ Automatic Headlight Beam Level Control System) | | ||
| Initialize back door lock | Power door lock control system | | |
| Reset back door close position | Power Back Door System (w/ Outside Door Control Switch) | |
*1: When performing learning using the Techstream.
Click here .gif)
CAUTION:
Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.
Click here
.png)
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. REMOVE TONNEAU COVER ASSEMBLY
Click here
2. REMOVE DECK BOARD ASSEMBLY
Click here
3. REMOVE REAR NO. 3 FLOOR BOARD
Click here
4. REMOVE REAR DECK FLOOR BOX
Click here
5. REMOVE REAR NO. 4 FLOOR BOARD
Click here
6. REMOVE FRONT DECK FLOOR BOX (for LH Side)
Click here
7. REMOVE DECK SIDE TRIM BOX RH
Click here
8. REMOVE REAR FLOOR FINISH PLATE
Click here
9. REMOVE REAR DOOR SCUFF PLATE LH
Click here
10. REMOVE REAR SEAT ASSEMBLY LH (for LH Side)
Click here
11. REMOVE REAR SEAT ASSEMBLY RH (for RH Side)
Click here
12. REMOVE UPPER QUARTER TRIM PAD LH
Click here
13. REMOVE REAR SEAT SIDE GARNISH LH
Click here
14. REMOVE REAR FLOOR FINISH SIDE PLATE LH
Click here
15. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for LH Side)
Click here
16. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for RH Side)
Click here
17. REMOVE ROPE HOOK ASSEMBLY
Click here
18. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for LH Side)
Click here
19. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for RH Side)
Click here
20. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)
Click here
21. REMOVE RECLINING REMOTE CONTROL BEZEL RH (w/o Rear Power Seat System)
for RH Side:
Click here
22. REMOVE FOLD SEAT SWITCH ASSEMBLY (w/ Rear Power Seat System)
for RH Side:
Click here
23. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)
Click here
24. REMOVE REAR LIGHT COVER (for Bulb Type Turn Signal Light)

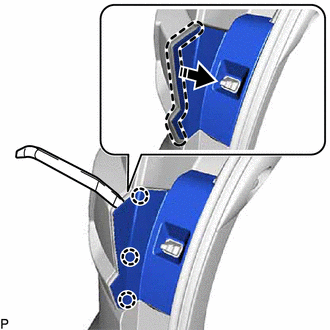

(a) Using a moulding remover, disengage the 3 claws as shown in the illustration.
.png) | Insert Moulding Remover Here |
.png) | Remove in this Direction |

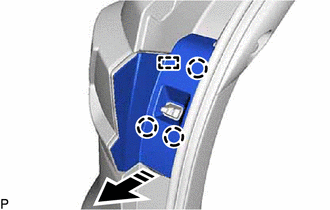

(b) Disengage the 3 claws and guide to remove the rear light cover as shown in the illustration.
| | Remove in this Direction |
25. REMOVE REAR LIGHT COVER (for LED Type Turn Signal Light)

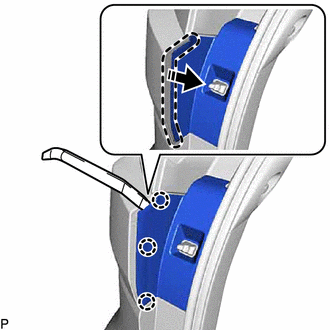

(a) Using a moulding remover, disengage the 3 claws as shown in the illustration.
| | Insert Moulding Remover Here |
| | Remove in this Direction |

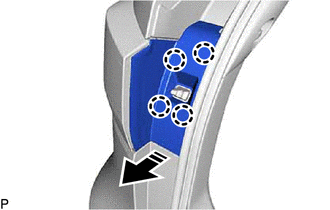

(b) Disengage the 4 claws to remove the rear light cover as shown in the illustration.
| | Remove in this Direction |
26. REMOVE REAR COMBINATION LIGHT ASSEMBLY
| (a) Disconnect the connector. |
|

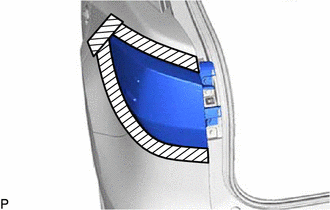

(b) Apply protective tape around the rear combination light assembly as shown in the illustration.
.png) | Protective Tape |

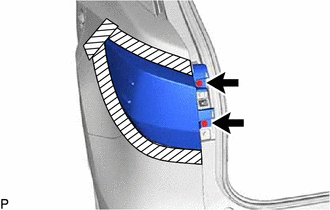

| (c) Remove the 2 screws. |
|
.png)

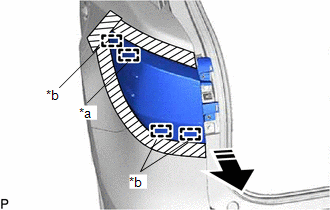

(d) Pull the rear combination light assembly toward the rear of the vehicle as shown in the illustration to disengage the pin and 3 guides and separate the rear combination light assembly.
NOTICE:
To prevent the rear combination light assembly from falling when disengaging the pin, lightly hold the rear combination light assembly.
.png)
| *a | Pin |
| *b | Guide |
| | Remove in this Direction |

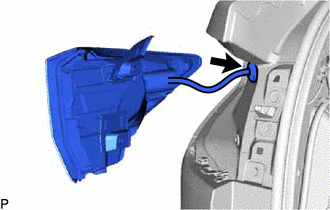

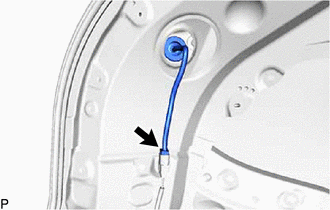

| (e) Disengage the grommet to remove the rear combination light assembly. |
|
.png)
Disassembly
DISASSEMBLY CAUTION / NOTICE / HINT HINT:
Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.
PROCEDURE 1. REMOVE REAR COMBINATION LIGHT CAP (for LE ...
Inspection
INSPECTION PROCEDURE 1. INSPECT REAR COMBINATION LIGHT ASSEMBLY LH (a) Apply battery voltage to the rear combination light assembly LH and check that the lights come on. OK: Condition Specifi ...
