Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during side turn signal light assembly removal/installation are shown below.
Necessary Procedure After Parts Removed/Installed/Replaced| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Side television camera view adjustment | Panoramic view monitor system | |
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. REMOVE OUTER MIRROR
Click here .gif)
2. REMOVE NO. 1 OUTER MIRROR COVER
Click here
3. REMOVE NO. 2 OUTER MIRROR COVER
Click here
4. REMOVE OUTER MIRROR HOLE COVER
Click here
5. REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY

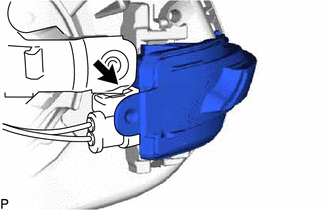

| (a) Disconnect the connector. |
|

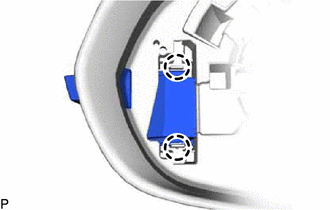

| (b) Disengage the 2 claws to remove the side turn signal light assembly. |
|
Inspection
INSPECTION PROCEDURE 1. INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY LH (a) Apply battery voltage to the side turn signal light assembly LH and check that the light comes on. OK: Condition Specifi ...
Installation
INSTALLATION CAUTION / NOTICE / HINT HINT:
Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.
PROCEDURE 1. INSTALL SIDE TURN SIGNAL LIGHT ASSEMBLY ...
