DESCRIPTION

The power window regulator motor assemblies are operated by the multiplex network master switch assembly, power window regulator switch assembly or rear power window regulator switch assemblies. The power window regulator motor assemblies have motor, regulator and ECU functions.

This DTC is stored when the ECU built into a power window regulator motor assembly and multiplex network master switch assembly determine that the multiplex network master switch assembly, power window regulator switch assembly or rear power window regulator switch assembly is stuck.

Master Switch

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

B2312

Power Window Switch Malfunction
  • Multiplex network master switch assembly stuck
  • Multiplex network master switch assembly held in same position for more than 20 seconds
  • Multiplex network master switch assembly operated for 20 seconds or more

Multiplex network master switch assembly
D-Door Motor

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

B2312

Power Window Switch Malfunction
  • Multiplex network master switch assembly stuck
  • Multiplex network master switch assembly held in same position for more than 20 seconds
  • Multiplex network master switch assembly
  • Power window regulator motor assembly (for driver door)
  • Wire harness or connector
P-Door Motor

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

B2312

Power Window Switch Malfunction
  • Power window regulator switch assembly stuck
  • Power window regulator switch assembly held in same position for more than 20 seconds
  • Power window regulator switch assembly
  • Power window regulator motor assembly (for front passenger door)
  • Wire harness or connector
RL-Door Motor

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

B2312

Power Window Switch Malfunction
  • Rear power window regulator switch assembly (for LH door) stuck
  • Rear power window regulator switch assembly (for LH door) held in same position for more than 20 seconds
  • Rear power window regulator switch assembly (for LH door)
  • Power window regulator motor assembly (for rear LH door)
  • Wire harness or connector
RR-Door Motor

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

B2312

Power Window Switch Malfunction
  • Rear power window regulator switch assembly (for RH door) stuck
  • Rear power window regulator switch assembly (for RH door) held in same position for more than 20 seconds
  • Rear power window regulator switch assembly (for RH door)
  • Power window regulator motor assembly (for rear RH door)
  • Wire harness or connector

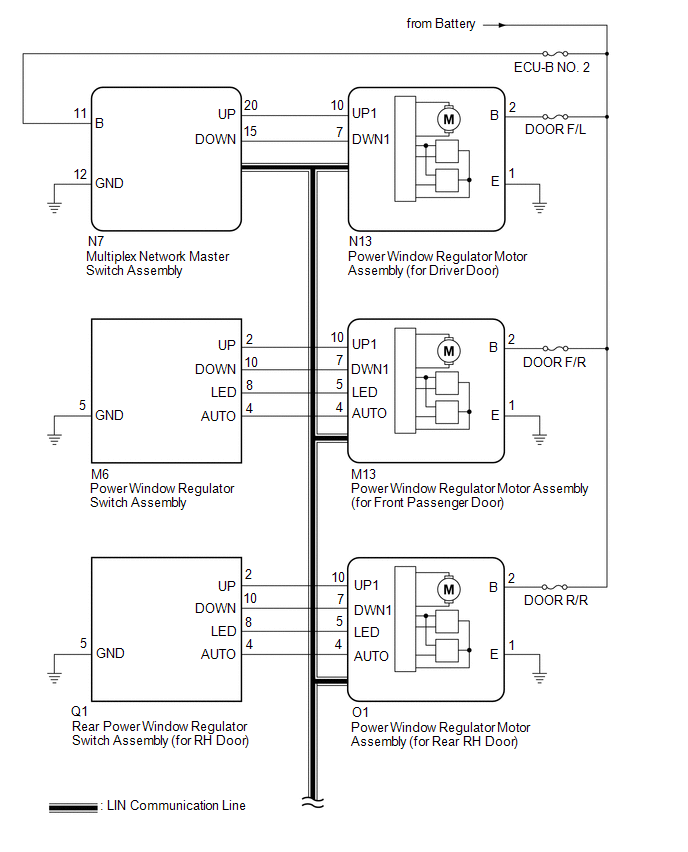

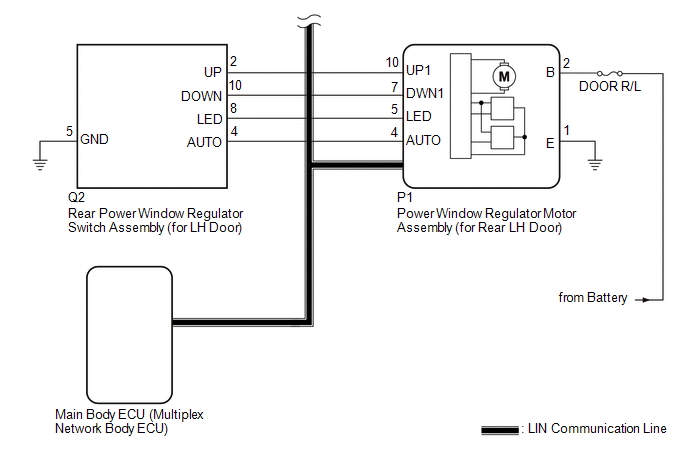

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • DTC B2312 is stored in the multiplex network master switch assembly and in each power window regulator motor assembly.
  • If a power window regulator motor assembly has been replaced with a new one, initialize the power window control system.

    Click here

  • Inspect the fuses for circuits related to this system before performing the following procedure.
  • The power window control system uses the LIN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the power window control system after confirming that the communication system is functioning properly.

    Click here

HINT:

If DTC B2312 is not output again after the DTC has been cleared, the DTC was stored due to the switch being held in the same position continuously.

PROCEDURE

1.

CHECK FOR DTC

(a) Clear the DTCs.

Click here

Body Electrical > Master Switch > Clear DTCs Body Electrical > D-Door Motor > Clear DTCs Body Electrical > P-Door Motor > Clear DTCs Body Electrical > RL-Door Motor > Clear DTCs Body Electrical > RR-Door Motor > Clear DTCs

(b) Check for DTCs.

Click here

Body Electrical > Master Switch > Trouble Codes Body Electrical > D-Door Motor > Trouble Codes Body Electrical > P-Door Motor > Trouble Codes Body Electrical > RL-Door Motor > Trouble Codes Body Electrical > RR-Door Motor > Trouble Codes

OK:

DTC B2312 is not output.

OK

END (DTC WAS STORED DUE TO SWITCH BEING OPERATED FOR 20 SECONDS OR MORE)
NG

2.

CHECK DTC OUTPUT

(a) Check the parts from which this DTC has been output.

Result

Proceed to

DTC output from multiplex network master switch assembly

A

DTC output from power window regulator motor assembly (for driver door)

B

DTC output from power window regulator motor assembly (for front passenger door)

C

DTC output from power window regulator motor assembly (for rear LH door)

D

DTC output from power window regulator motor assembly (for rear RH door)

E
A

REPLACE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

C

GO TO STEP 7

D

GO TO STEP 10

E

GO TO STEP 13

B

3.

READ VALUE USING TECHSTREAM (D-DOOR MOTOR)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / D-Door Motor / Data List.

(e) Read the Data List according to the display on the Techstream.

Body Electrical > D-Door Motor > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

D Door P/W Up SW

Driver door power window manual up switch signal

OFF or ON

OFF: Driver door power window manual up switch not being operated

ON: Driver door power window manual up switch being operated

-

D Door P/W Down SW

Driver door power window manual down switch signal

OFF or ON

OFF: Driver door power window manual down switch not being operated

ON: Driver door power window manual down switch being operated

-
Body Electrical > D-Door Motor > Data List

Tester Display

D Door P/W Up SW

D Door P/W Down SW

OK:

On the Techstream screen, ON or OFF is displayed accordingly.

OK

REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (FOR DRIVER DOOR)

NG

4.

CHECK HARNESS AND CONNECTOR (MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY - POWER WINDOW REGULATOR MOTOR ASSEMBLY (FOR DRIVER DOOR))

(a) Disconnect the N7 multiplex network master switch assembly connector.

(b) Disconnect the N13 power window regulator motor assembly (for driver door) connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

N7-20 (UP) or N13-10 (UP1) - Body ground

Always

10 kΩ or higher

N7-15 (DOWN) or N13-7 (DWN1) - Body ground

Always

10 kΩ or higher
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

5.

REPLACE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

(a) Replace the multiplex network master switch assembly.

Click here

NEXT

6.

CHECK FOR DTC

(a) Clear the DTCs.

Click here

Body Electrical > D-Door Motor > Clear DTCs

(b) Check for DTCs.

Click here

Body Electrical > D-Door Motor > Trouble Codes

OK:

DTC B2312 is not output.

OK

END (MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WAS DEFECTIVE)
NG

REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (FOR DRIVER DOOR)

7.

READ VALUE USING TECHSTREAM (P-DOOR MOTOR)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / P-Door Motor / Data List.

(e) Read the Data List according to the display on the Techstream.

Body Electrical > P-Door Motor > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

P Door P/W Auto SW

Front passenger door power window auto switch signal

OFF or ON

OFF: Front passenger door power window auto up or auto down switch not being operated

ON: Front passenger door power window auto up or auto down switch being operated

-

P Door P/W Up SW

Front passenger door power window manual up switch signal

OFF or ON

OFF: Front passenger door power window manual up switch not being operated

ON: Front passenger door power window manual up switch being operated

-

P Door P/W Down SW

Front passenger door power window manual down switch signal

OFF or ON

OFF: Front passenger door power window manual down switch not being operated

ON: Front passenger door power window manual down switch being operated

-
Body Electrical > P-Door Motor > Data List

Tester Display

P Door P/W Auto SW

P Door P/W Up SW

P Door P/W Down SW

OK:

On the Techstream screen, ON or OFF is displayed accordingly.

OK

REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (FOR FRONT PASSENGER DOOR)

NG

8.

INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY

(a) Remove the power window regulator switch assembly.

Click here

(b) Inspect the power window regulator switch assembly.

Click here

NG

REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY

OK

9.

CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR SWITCH ASSEMBLY - POWER WINDOW REGULATOR MOTOR ASSEMBLY (FOR FRONT PASSENGER DOOR))

(a) Disconnect the M13 power window regulator motor assembly (for front passenger door) connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

M6-2 (UP) or M13-10 (UP1) - Body ground

Always

10 kΩ or higher

M6-4 (AUTO) or M13-4 (AUTO) - Body ground

Always

10 kΩ or higher

M6-10 (DOWN) or M13-7 (DWN1) - Body ground

Always

10 kΩ or higher
OK

REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (FOR FRONT PASSENGER DOOR)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

10.

READ VALUE USING TECHSTREAM (RL-DOOR MOTOR)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / RL-Door Motor / Data List.

(e) Read the Data List according to the display on the Techstream.

Body Electrical > RL-Door Motor > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

RL Door P/W Auto SW

Rear LH door power window auto switch signal

OFF or ON

OFF: Rear LH door power window auto up or auto down switch not being operated

ON: Rear LH door power window auto up or auto down switch being operated

-

RL Door P/W Up SW

Rear LH door power window manual up switch signal

OFF or ON

OFF: Rear LH door power window manual up switch not being operated

ON: Rear LH door power window manual up switch being operated

-

RL Door P/W Down SW

Rear LH door power window manual down switch signal

OFF or ON

OFF: Rear LH door power window manual down switch not being operated

ON: Rear LH door power window manual down switch being operated

-
Body Electrical > RL-Door Motor > Data List

Tester Display

RL Door P/W Auto SW

RL Door P/W Up SW

RL Door P/W Down SW

OK:

On the Techstream screen, ON or OFF is displayed accordingly.

OK

REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (FOR REAR LH DOOR)

NG

11.

INSPECT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY (FOR LH DOOR)

(a) Remove the rear power window regulator switch assembly (for LH door).

Click here

(b) Inspect the rear power window regulator switch assembly (for LH door).

Click here

NG

REPLACE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY (FOR LH DOOR)

OK

12.

CHECK HARNESS AND CONNECTOR (REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY (FOR LH DOOR) - POWER WINDOW REGULATOR MOTOR ASSEMBLY (FOR REAR LH DOOR))

(a) Disconnect the P1 power window regulator motor assembly (for rear LH door) connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection

Condition

Specified Condition

Q2-2 (UP) or P1-10 (UP1) - Body ground

Always

10 kΩ or higher

Q2-10 (DOWN) or P1-7 (DWN1) - Body ground

Always

10 kΩ or higher

Q2-4 (AUTO) or P1-4 (AUTO) - Body ground

Always

10 kΩ or higher
OK

REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (FOR REAR LH DOOR)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

13.

READ VALUE USING TECHSTREAM (RR-DOOR MOTOR)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / RR-Door Motor / Data List.

(e) Read the Data List according to the display on the Techstream.

Body Electrical > RR-Door Motor > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

RR Door P/W Auto SW

Rear RH door power window auto switch signal

OFF or ON

OFF: Rear RH door power window auto up or auto down switch not being operated

ON: Rear RH door power window auto up or auto down switch being operated

-

RR Door P/W Up SW

Rear RH door power window manual up switch signal

OFF or ON

OFF: Rear RH door power window manual up switch not being operated

ON: Rear RH door power window manual up switch being operated

-

RR Door P/W Down SW

Rear RH door power window manual down switch signal

OFF or ON

OFF: Rear RH door power window manual down switch not being operated

ON: Rear RH door power window manual down switch being operated

-
Body Electrical > RR-Door Motor > Data List

Tester Display

RR Door P/W Auto SW

RR Door P/W Up SW

RR Door P/W Down SW

OK:

On the Techstream screen, ON or OFF is displayed accordingly.

OK

REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (FOR REAR RH DOOR)

NG

14.

INSPECT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY (FOR RH DOOR)

(a) Remove the rear power window regulator switch assembly (for RH door).

Click here

(b) Inspect the rear power window regulator switch assembly (for RH door).

Click here

NG

REPLACE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY (FOR RH DOOR)

OK

15.

CHECK HARNESS AND CONNECTOR (REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY (FOR RH DOOR) - POWER WINDOW REGULATOR MOTOR ASSEMBLY (FOR REAR RH DOOR))

(a) Disconnect the O1 power window regulator motor assembly (for rear RH door) connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection

Condition

Specified Condition

Q1-2 (UP) or O1-10 (UP1) - Body ground

Always

10 kΩ or higher

Q1-10 (DOWN) O1-7 (DWN1) - Body ground

Always

10 kΩ or higher

Q1-4 (AUTO) O1-4 (AUTO) - Body ground

Always

10 kΩ or higher
OK

REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (FOR REAR RH DOOR)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
    Power Window Motor Malfunction (B2311)
    DESCRIPTION The power window regulator motor assemblies are operated by the multiplex network master switch assembly, power window regulator switch assembly or a rear power window regulator switch ass ...

    Glass Position Initialization Incomplete (B2313)
    DESCRIPTION The power window regulator motor assemblies are operated by the multiplex network master switch assembly, power window regulator switch assembly or rear power window regulator switch assem ...

    Other materials:

    Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual > Audio And Visual System (for 12.3 Inch Display): Pointer not Displayed on Screen or Pointer does not Move
    CAUTION / NOTICE / HINT NOTICE: Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Audio and Visual System. Click here PROCEDURE 1. CHECK FOR FOREIGN MATTER (a) Ch ...

    Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual > Rear Power Outlet Socket (w/o Rear No. 2 Seat): Removal
    REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during rear No. 1 power outlet socket removal/installation are shown below. Necessary Procedures After Parts Re ...

    Lexus RX (RX 350L, RX450h) 2016-{YEAR} Owners Manual

    Lexus RX (RX 350L, RX450h) 2016-{YEAR} Repair Manual

    © 2024 Copyright www.lexusrx.net
    0.02
