REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during power window regulator motor removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link
*1: When performing learning using the Techstream.

Click here

Disconnect cable from negative battery terminal

Memorize steering angle neutral point

Lane Control System

Pre-collision System

Intelligent Clearance Sonar System*1

Parking Assist Monitor System

Panoramic View Monitor System

Lighting System (w/ Automatic Headlight Beam Level Control System)

Initialize back door lock

Power Door Lock Control System

Reset back door close position

Power Back Door System (w/ Outside Door Control Switch)

  • Door window regulator assembly
  • Power window regulator motor sub-assembly
  • Door glass
  • Door glass run

Initialize power window control system
  • Auto up and down function
  • Jam protection function
  • Remote control function
  • Key-linked function
  • Wireless transmitter-linked function
  • Key-off operation function
  • Catch protection function
  • Window open warning function

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. PRECAUTION

NOTICE:

After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click here

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click here

3. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

Click here

4. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

Click here

5. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

Click here

6. REMOVE DOOR ARMREST COVER

Click here

7. REMOVE COURTESY LIGHT ASSEMBLY

Click here

8. REMOVE FRONT DOOR NO. 1 STIFFENER CUSHION

Click here

9. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

Click here

10. REMOVE FRONT DOOR NO. 1 TRIM BRACKET

Click here

11. REMOVE FRONT DOOR SERVICE HOLE COVER

Click here

12. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY

Click here

13. REMOVE FRONT DOOR WINDOW REGULATOR ASSEMBLY

Click here

14. REMOVE POWER WINDOW REGULATOR MOTOR ASSEMBLY

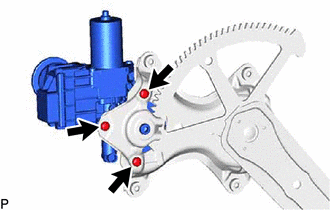

(a) Using a T25 "TORX" socket wrench, remove the 3 screws and power window regulator motor assembly.
    Components
    COMPONENTS ILLUSTRATION *A for Driver Side *B for Front Passenger Side *1 COURTESY LIGHT ASSEMBLY *2 DOOR ARMREST COVER *3 FRONT DOOR INSIDE HANDLE BEZEL PLUG *4 FRONT DO ...

    Inspection
    INSPECTION PROCEDURE 1. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH (a) Connect a positive (+) battery lead to connector terminal 2 (B). NOTICE: Do not connect a positive (+) battery lead to a ...
