Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual: Installation
INSTALLATION
PROCEDURE
1. INSTALL COOLER (ROOM TEMP. SENSOR) THERMISTOR
(a) Connect the connector and aspirator.

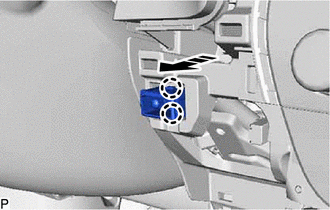

(b) Engage the 2 claws to install the cooler (room temp. sensor) thermistor as shown in the illustration.
.png) | Install in this Direction |
2. INSTALL LOWER INSTRUMENT FINISH PANEL SUB
Click here .gif)
3. INSTALL INSTRUMENT CLUSTER FINISH PANEL ORNAMENT
Click here
4. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL
Click here
5. INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL
Click here
6. CONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Click here
