Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: Components

COMPONENTS

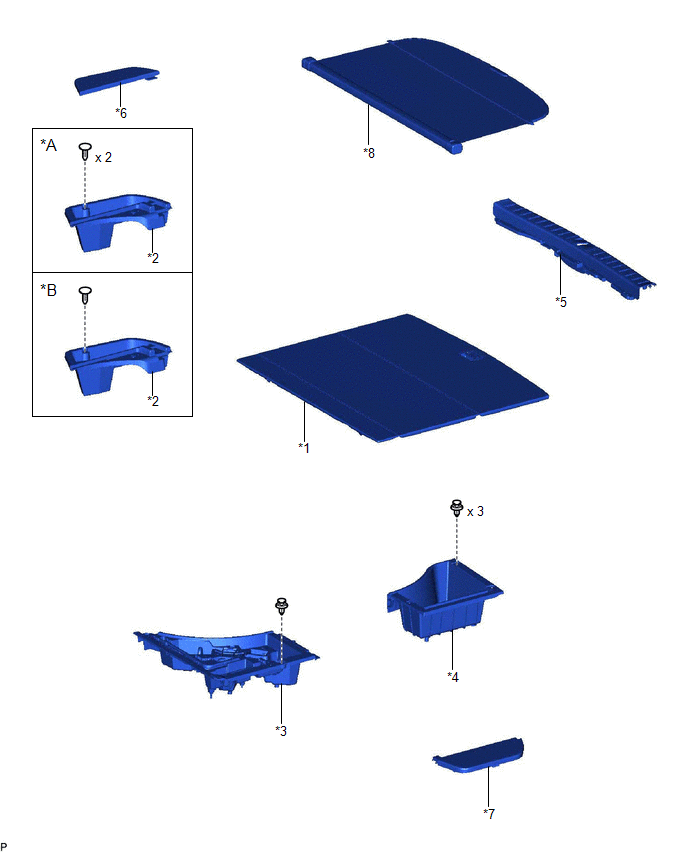

ILLUSTRATION

*A

for TMC Made

*B

for TMMC Made

*1

DECK BOARD ASSEMBLY

*2

DECK SIDE TRIM BOX RH

*3

FRONT DECK FLOOR BOX

*4

REAR DECK FLOOR BOX

*5

REAR FLOOR FINISH PLATE

*6

REAR NO. 3 FLOOR BOARD

*7

REAR NO. 4 FLOOR BOARD

*8

TONNEAU COVER ASSEMBLY

ILLUSTRATION

*1

CENTER PILLAR GARNISH ASSEMBLY LH

*2

FRONT DOOR SCUFF PLATE LH

*3

FRONT PILLAR GARNISH LH

*4

FRONT SEAT OUTER BELT ASSEMBLY LH

*5

LOWER CENTER PILLAR GARNISH LH

*6

REAR DOOR SCUFF PLATE LH

*7

FRONT PILLAR GARNISH CLIP

*8

CLIP

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

Non-reusable part

ILLUSTRATION

*1

CENTER PILLAR GARNISH ASSEMBLY RH

*2

FRONT DOOR SCUFF PLATE RH

*3

FRONT PILLAR GARNISH RH

*4

FRONT SEAT OUTER BELT ASSEMBLY RH

*5

LOWER CENTER PILLAR GARNISH RH

*6

REAR DOOR SCUFF PLATE RH

*7

FRONT PILLAR GARNISH CLIP

*8

CLIP

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

Non-reusable part

ILLUSTRATION

*1

DECK TRIM SIDE PANEL ASSEMBLY LH

*2

NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

*3

NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

*4

REAR FLOOR FINISH SIDE PLATE LH

*5

REAR SEAT SIDE GARNISH LH

*6

ROOF SIDE INNER GARNISH ASSEMBLY LH

*7

ROPE HOOK ASSEMBLY

*8

UPPER QUARTER TRIM PAD LH

*9

CLIP

-

-

Non-reusable part

-

-

ILLUSTRATION

*A

w/o Rear Power Seat System

*B

w/ Rear Power Seat System

*1

DECK TRIM SIDE PANEL ASSEMBLY RH

*2

FOLD SEAT SWITCH ASSEMBLY

*3

NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

*4

NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

*5

REAR FLOOR FINISH SIDE PLATE RH

*6

REAR SEAT SIDE GARNISH RH

*7

RECLINING REMOTE CONTROL BEZEL RH

*8

ROOF SIDE INNER GARNISH ASSEMBLY RH

*9

ROPE HOOK ASSEMBLY

*10

UPPER QUARTER TRIM PAD RH

*11

CLIP

-

-

Non-reusable part

-

-

ILLUSTRATION

*A

w/ Rain Sensor

-

-

*1

MAP LIGHT ASSEMBLY

*2

NO. 1 FORWARD RECOGNITION COVER

*3

NO. 2 FORWARD RECOGNITION COVER

*4

RAIN SENSOR

*5

RAIN SENSOR COVER

*6

SPOT LIGHT ASSEMBLY

ILLUSTRATION

*1

ASSIST GRIP ASSEMBLY

*2

REAR ASSIST GRIP ASSEMBLY LH

*3

REAR ASSIST GRIP ASSEMBLY RH

*4

VISOR ASSEMBLY LH

*5

VISOR ASSEMBLY RH

*6

VISOR BRACKET COVER

*7

VISOR HOLDER

*8

ASSIST GRIP COVER LH

*9

ASSIST GRIP COVER RH

-

-

Non-reusable part

-

-

ILLUSTRATION

*A

for Standard Roof

*B

for Sliding Roof

*C

for Panoramic Moon Roof

-

-

*1

ROOF HEADLINING ASSEMBLY

-

-

ILLUSTRATION

*1

NO. 2 ANTENNA CORD SUB-ASSEMBLY

*2

WASHER HOSE ASSEMBLY

ILLUSTRATION

*A

for Standard Roof

-

-

*1

NO. 1 ROOF WIRE

*2

ROOF HEADLINING ASSEMBLY

*3

TELEPHONE MICROPHONE ASSEMBLY

*4

VANITY LIGHT ASSEMBLY

*5

NO. 1 MICROPHONE CASE

-

-

ILLUSTRATION

*A

for Sliding Roof

*B

for TMC Made

*1

NO. 1 ROOF SILENCER PAD

*2

NO. 1 ROOF WIRE

*3

NO. 2 ROOF SILENCER PAD

*4

ROOF HEADLINING ASSEMBLY

*5

TELEPHONE MICROPHONE ASSEMBLY

*6

VANITY LIGHT ASSEMBLY

*7

NO. 1 MICROPHONE CASE

-

-

Non-reusable part

-

-

ILLUSTRATION

*A

for Panoramic Moon Roof

-

-

*1

NO. 1 ROOF WIRE

*2

ROOF HEADLINING ASSEMBLY

*3

TELEPHONE MICROPHONE ASSEMBLY

*4

VANITY LIGHT ASSEMBLY

*5

NO. 1 MICROPHONE CASE

-

-

    Roof Headlining (w/o Rear No. 2 Seat)
    ...

    Disassembly
    DISASSEMBLY PROCEDURE 1. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY Click here 2. REMOVE WASHER HOSE ASSEMBLY (a) Remove the washer hose assembly. *A for Standard Roof *B for Sliding Roof ...
