Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: Door Courtesy Light Bulb

Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual / Vehicle Interior / Lighting (int) / Door Courtesy Light Bulb

Replacement

REPLACEMENT

PROCEDURE

1. REMOVE COURTESY LIGHT ASSEMBLY (for Front Door)

(a) Using a screwdriver with its tip wrapped with protective tape, disengage the claw.

*A

for LH Side

*B

for RH Side

*a

Protective Tape

(b) Disconnect the connector to remove the courtesy light assembly.

2. REMOVE COURTESY LIGHT ASSEMBLY (for Rear Door)

(a) Using a screwdriver with its tip wrapped with protective tape, disengage the claw.

*A

for LH Side

*B

for RH Side

*a

Protective Tape

(b) Disconnect the connector to remove the courtesy light assembly.

3. REMOVE COURTESY LIGHT BULB

(a) Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the courtesy light housing with the courtesy light cover as shown in the illustration.

*a

Protective Tape

Remove in this Direction

(b) Remove the courtesy light cover from the courtesy light housing as shown in the illustration.

Remove in this Direction

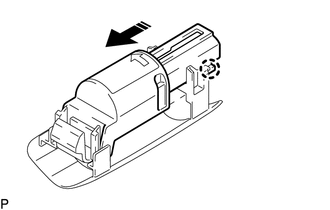

(c) Remove the courtesy light bulb from the courtesy light housing as shown in the illustration.

Remove in this Direction

4. INSTALL COURTESY LIGHT BULB

(a) Install the courtesy light bulb to the courtesy light housing as shown in the illustration.

Install in this Direction

(b) Install the courtesy light cover to the courtesy light housing as shown in the illustration.

Install in this Direction

(c) Engage the claw to install the courtesy light housing with the courtesy light cover as shown in the illustration.

Install in this Direction

5. INSTALL COURTESY LIGHT ASSEMBLY (for Front Door)

(a) Connect the connector.

(b) Engage the claw to install the courtesy light assembly.

*A

for LH Side

*B

for RH Side

6. INSTALL COURTESY LIGHT ASSEMBLY (for Rear Door)

(a) Connect the connector.

(b) Engage the claw to install the courtesy light assembly.

*A

for LH Side

*B

for RH Side
