Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: Parts Location
PARTS LOCATION
ILLUSTRATION
| *1 | COURTESY LIGHT ASSEMBLY (FRONT COURTESY LIGHT LH) | *2 | MAP LIGHT ASSEMBLY |
| *3 | COURTESY LIGHT ASSEMBLY (REAR COURTESY LIGHT LH) | *4 | SPOT LIGHT ASSEMBLY |
| *5 | COURTESY LIGHT ASSEMBLY (FRONT COURTESY LIGHT RH) | *6 | COURTESY LIGHT ASSEMBLY (REAR COURTESY LIGHT RH) |
| *7 | VANITY LIGHT ASSEMBLY LH | *8 | VANITY LIGHT ASSEMBLY RH |
| *9 | ENGINE ROOM RELAY BLOCK | - | - |
ILLUSTRATION

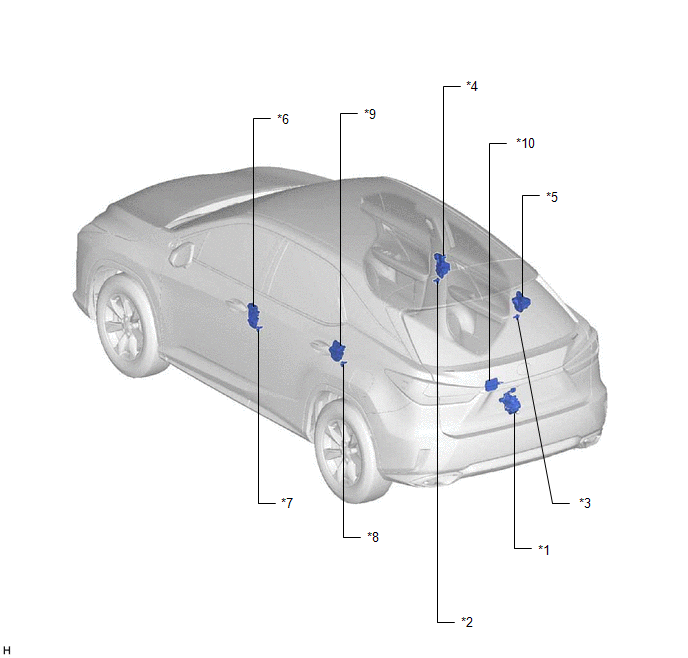

| *1 | BACK DOOR LOCK ASSEMBLY | *2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
| *3 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH | *4 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *5 | REAR DOOR LOCK ASSEMBLY RH | *6 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH |
| *7 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *8 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH |
| *9 | REAR DOOR LOCK ASSEMBLY LH | *10 | MULTIPLEX NETWORK DOOR ECU |
ILLUSTRATION
| *A | w/ Door Ambient Illumination Light | - | - |
| *1 | FRONT DOOR AMBIENT ILLUMINATION LIGHT RH | *2 | FRONT DOOR AMBIENT ILLUMINATION LIGHT LH |
| *3 | REAR DOOR AMBIENT ILLUMINATION LIGHT RH | *4 | REAR DOOR AMBIENT ILLUMINATION LIGHT LH |
| *5 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY (RH) | *6 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY (LH) |
| *7 | REAR DOOR TRIM BOARD SUB-ASSEMBLY (RH) | *8 | REAR DOOR TRIM BOARD SUB-ASSEMBLY (LH) |
ILLUSTRATION
| *1 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (RH) | *2 | FRONT DOOR SCUFF PLATE RH (SCUFF LIGHT RH)(w/ Scuff Light) |
| *3 | FRONT DOOR SCUFF PLATE LH (SCUFF LIGHT LH)(w/ Scuff Light) | *4 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (LH) |
| *5 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (BACK DOOR) | - | - |
ILLUSTRATION
| *1 | INTERIOR ILLUMINATION LIGHT SUB-ASSEMBLY (INSTRUMENT PANEL AMBIENT ILLUMINATION LIGHT) | *2 | ENGINE SWITCH |
| *3 | NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY LH (FOOTWELL LIGHT LH) | *4 | GLOVE BOX LIGHT ASSEMBLY |
| *5 | NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY (INSTRUMENT PANEL BOX LIGHT) | *6 | NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY RH (FOOTWELL LIGHT RH) |
| *7 | NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY (CONSOLE BOX LIGHT(for Front Side)) | *8 | DLC3 |
| *9 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *10 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-ACC FUSE - ECU-IG1 NO. 4 FUSE - DOME FUSE - ACC RELAY - IG1 NO. 1 RELAY - DOME CUT RELAY |
| *11 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *12 | NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY (CONSOLE BOX LIGHT(for Rear Side)) |
