Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual: System Description
SYSTEM DESCRIPTION
OUTLINE OF COMBINATION METER ASSEMBLY
(a) for Optitron Meter Type
| *a | Indication Example | *b | Tachometer |
| *c | Speedometer | *d | Engine Coolant Temperature Receiver Gauge |
| *e | Fuel Receiver Gauge | *f | Multi-information Display |
| *g | Display Area A1 | *h | Display Area A2 |
| *i | Display Area A3 | *j | Display Area A4 |
(b) for TFT Meter Type
| *a | Indication Example | *b | Engine Coolant Temperature Receiver Gauge |
| *c | Fuel Receiver Gauge | *d | Multi-information Display |
| *e | Display Area B1 | *f | Display Area B2 |
| *g | Display Area B3 | *h | Display Area B4 |
| *i | Display Area B5 | *j | Display Area B6 |
| *k | Display Area B7 | *l | Display Area B8 |
| *m | Display Area B9 | *n | Display Area B10 |
| *o | Display Area B11 | - | - |
INPUT AND OUTPUT SIGNALS OF COMBINATION METER ASSEMBLY
(a) Meter or Gauge
| Item | Condition | Input/Output | Communication line | Signal | Component | Display Area |
|---|---|---|---|---|---|---|
| Speedometer |
| Input | CAN | Vehicle speed (SP1) signal | Brake actuator assembly (Skid control ECU) | B4,B11 |
| - | Output | CAN | Vehicle speed signal (meter to other) | Related ECUs | ||
| Speed tolerance A signal | ||||||
| Speed tolerance B signal | ||||||
| Tachometer |
| Input | CAN | Engine RPM data signal | ECM | B9 |
| Fuel receiver gauge | Gauge | Input | CAN | Fuel consumption signal | ECM | - |
| Engine RPM data signal | ||||||
| Starter signal | ||||||
| Shift position P signal | ||||||
| Shift position R signal | ||||||
| Shift position N signal | ||||||
| Shift position D signal | ||||||
| Mode indicator signal | ||||||
| Vehicle speed (SP1) signal | Brake actuator assembly (Skid control ECU) | |||||
| Direct line | Fuel level signal | Fuel sender gauge assembly | ||||
| Output | CAN | Fuel gauge state signal | Related ECUs | |||
| Fuel gauge initial signal | ||||||
| Fuel direct data signal | ||||||
| Fuel initial signal | ||||||
| Fuel average signal | ||||||
| Engine coolant temperature receiver gauge | Gauge | Input | CAN | Engine coolant temperature signal | ECM | - |
- *1: for Optitron Meter Type
- *2: for TFT Meter Type
(b) Warning or Indicator
| Item | Condition | Input/Output | Communication line | Signal | Component |
|---|---|---|---|---|---|
| Master warning light | Comes on/Blinks | - | - | - | - |
| Brake warning light / red (malfunction) | Comes on | Input | CAN | Brake warning light control flag signal | Brake actuator assembly (Skid control ECU) |
| Engine RPM data signal | ECM | ||||
| Direct line | Brake fluid level warning switch signal | Brake master cylinder reservoir assembly (Brake fluid level warning switch) | |||
| Vacuum warning switch signal | Vacuum warning switch assembly | ||||
| Driver or front passenger seat belt warning light | Comes on/Blinks | Input | CAN | Driver seat belt buckle switch signal | Main body ECU (Multiplex network body ECU) |
| Parking brake switch signal | |||||
| Shift position P signal | ECM | ||||
| Vehicle speed (SP1) signal | Brake actuator assembly (Skid control ECU) | ||||
| Front passenger seat occupant detection status signal | Airbag sensor assembly | ||||
| Front passenger seat belt buckle switch detection status signal | |||||
| SRS warning light | Comes on | Input | CAN | Airbag warning light control request signal | Airbag sensor assembly |
| Test mode signal | ECM | ||||
| Charge warning light*1 | Comes on | Input | CAN | Charge light indicator signal | ECM |
| EPS warning light | Comes on | Input | CAN | EPS warning light request signal | Power steering ECU assembly |
| Parking brake warning light | Comes on/Blinks | Input | CAN | Parking brake signal | Brake actuator assembly (Skid control ECU) |
| MIL (Check engine warning light) | Comes on/Blinks | Input | CAN | MIL request signal | ECM |
| PCS warning light | Comes on/Blinks | Input | CAN | PCS indicator display signal | Forward recognition camera |
| Slip indicator light | Comes on/Blinks | Input | CAN | Slip indicator light signal | Brake actuator assembly (Skid control ECU) |
| VSC OFF indicator light | Comes on | Input | CAN | VSC OFF light signal | Brake actuator assembly (Skid control ECU) |
| ABS warning light | Comes on/Blinks | Input | CAN | ABS warning light control flag signal | Brake actuator assembly (Skid control ECU) |
| Brake warning light / yellow (minor malfunction) | Comes on | Input | CAN | EPB warning signal | Brake actuator assembly (Skid control ECU) |
| Tire pressure warning light | Comes on/Blinks | Input | CAN | TPMS warning indicator condition 1 signal | Main body ECU (Multiplex network body ECU) |
| Brake hold warning light | Comes on/Blinks | Input | CAN | Brake hold indicator signal | Brake actuator assembly (Skid control ECU) |
| Fuel level warning light | Comes on | Input | Direct line | Fuel level signal | Fuel sender gauge assembly |
| - | Output | CAN | Request GS search signal | Related ECUs | |
| AWD lock indicator light*5 | Comes on/Blinks | Input | CAN | AWD lock indicator ON and flashing request signal | 4WD ECU assembly |
| ICS OFF indicator light*7 | Comes on/Blinks | Input | CAN | ICS OFF light request signal | Clearance warning ECU assembly |
| Automatic high beam indicator light | Comes on | Input | CAN | Smart beam indicator signal | Main body ECU (Multiplex network body ECU) |
| High beam indicator light | Comes on | Input | CAN | High beam headlight request signal | Main body ECU (Multiplex network body ECU) |
| Tail indicator light*3 | Comes on | Input | CAN | Taillight request signal | Main body ECU (Multiplex network body ECU) |
| Head indicator light*4 | Comes on | Input | CAN | Low beam headlight request signal | Main body ECU (Multiplex network body ECU) |
| Front fog indicator light*10 | Comes on | Input | CAN | Front fog light request signal | Main body ECU (Multiplex network body ECU) |
| Turn indicator light | Blinks | Input | CAN | Flasher request signal | Main body ECU (Multiplex network body ECU) |
| PBD hazard request signal | Multiplex network door ECU*9 | ||||
| Hazard light activation request signal | DCM (Telematics transceiver)*9 | ||||
| Airbag hazard light control request signal | Airbag sensor assembly | ||||
| Direct line | LH turn signal switch signal | Headlight dimmer switch assembly | |||
| RH turn signal switch signal | |||||
| Hazard warning switch signal | Radio receiver assembly (Hazard warning signal switch) | ||||
| - | Output | CAN | Turn light state signal | Related ECUs | |
| Hazard switch state signal | |||||
| Direct line | Front and side turn signal light LH output signal | Each turn signal light | |||
| Front and side turn signal light RH output signal | |||||
| Rear turn signal light LH output signal | |||||
| Rear turn signal light RH output signal | |||||
| Hazard warning switch signal | |||||
| Eco driving indicator light | Comes on | Input | CAN | Ecology light indicator signal | ECM |
| Brake hold indicator light | Comes on | Input | CAN | Brake hold standby indicator signal | Brake actuator assembly (Skid control ECU) |
| Clearance sonar OFF indicator light*7 | Comes on/Blinks | Input | CAN | CLSO main switch indicator turn ON signal | Clearance warning ECU assembly |
| RCTA OFF indicator light*8 | Comes on/Blinks | Input | CAN | RCTA switch signal | Blind spot monitor sensor LH |
| BSM indicator light*8 | Comes on | Input | CAN | BSD main switch signal | Blind spot monitor sensor LH |
| Rear seat belt warning light | - | Input | CAN | Rear right door courtesy switch signal | Main body ECU (Multiplex network body ECU) |
| Rear left door courtesy switch signal | |||||
| Parked condition signal | |||||
| Vehicle speed (SP1) signal | Brake actuator assembly (Skid control ECU) | ||||
| Direct line | Rear left seat belt buckle switch signal | Rear seat inner belt assembly LH | |||
| Rear right seat belt buckle switch signal | Rear seat 3 point type belt assembly RH | ||||
| Rear center seat belt buckle switch signal*2 | Rear center seat inner belt assembly | ||||
| Rear No. 2 left seat belt buckle switch signal*6 | Rear No. 2 seat inner belt assembly LH | ||||
| Rear No. 2 right seat belt buckle switch signal*6 | Rear No. 2 seat inner belt assembly RH | ||||
| Comes on | Output | Direct line | Rear left seat belt warning output signal | Radio receiver assembly (Rear seat belt warning light) | |
| Rear right seat belt warning output signal | |||||
| Rear center seat belt warning output signal*2 | |||||
| Rear No. 2 left seat belt warning output signal*6 | |||||
| Rear No. 2 right seat belt warning output signal*6 |
- *1: for TFT Meter Type
- *2: for 60/40 Split Seat Type
- *3: w/ Tail Indicator Light
- *4: w/ Head Indicator Light
- *5: for AWD
- *6: w/ Rear No. 2 Seat
- *7: w/ Intelligent Clearance Sonar System
- *8: w/ Blind Spot Monitor System
- *9: w/ Manual (SOS) Switch
- *10: w/ Front Fog Light

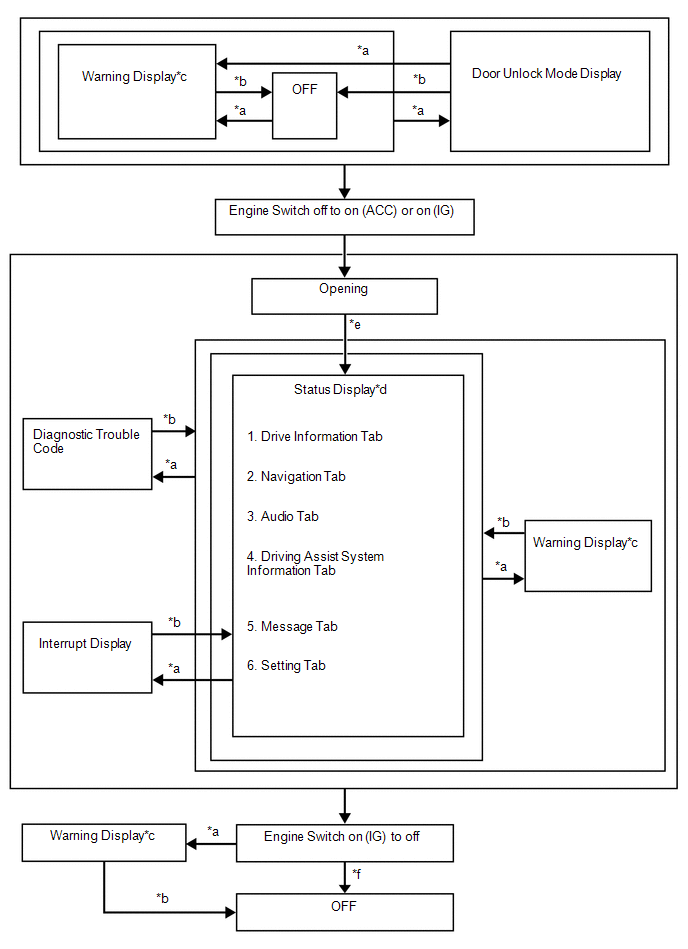

(c) Multi-information Display
| Item | Condition | Input/Output | Communication line | Signal | Component | Display Area |
|---|---|---|---|---|---|---|
| Opening | - | - | - | - | - | A1, A2, A3, A4, B1, B2, B3, B7 |
| Odometer | Displayed | Input | CAN | Vehicle speed pulse signal integrated value signal | Brake actuator assembly (Skid control ECU) | A1, B6 |
| Vehicle speed (SP1) signal | ||||||
| - | Output | CAN | Odometer unit signal | Related ECUs | ||
| Odometer signal | ||||||
| TRIP A / TRIP B | Displayed | Input | CAN | Vehicle speed pulse signal integrated value signal | Brake actuator assembly (Skid control ECU) | A1, B6 |
| Vehicle speed (SP1) signal | ||||||
| Direct line | ODO/TRIP change switch signal | Trip switch | ||||
| - | Output | CAN | TRIP A signal | DCM (Telematics transceiver)*5 | ||
| TRIP B signal | ||||||
| Engine oil maintenance mileage | Displayed | Input | CAN | Oil maintenance mileage signal | ECM | A1, B6 |
| Oil mileage unit signal | ||||||
| Oil maintenance screen inversion demand signal | ||||||
| - | Output | CAN | Unit change 2 (km/mile) signal | Related ECUs | ||
| Drive information tab | Displayed | - | - | - | - | A3, B7 |
| Current fuel consumption | Displayed | Input | CAN | Vehicle speed (SP1) signal | Brake actuator assembly (Skid control ECU) | A2, B3 |
| Vehicle speed pulse signal integrated value signal | ||||||
| Fuel consumption signal | ECM | |||||
| Engine RPM data signal | ||||||
| - | Output | CAN | Drive monitor unit signal 0 | Radio receiver assembly | ||
| Drive monitor display signal (Current fuel consumption) | ||||||
| Average fuel consumption (After reset) | Displayed | Input | CAN | Engine RPM data signal | ECM | A2, B3 |
| Fuel consumption signal | ||||||
| Total average fuel consumption reset request signal | Radio receiver assembly | |||||
| Vehicle speed (SP1) signal | Brake actuator assembly (Skid control ECU) | |||||
| Vehicle speed pulse signal integrated value signal | ||||||
| Direct line | Reset signal | Steering pad switch assembly | ||||
| - | Output | CAN | Drive monitor unit signal 6 | Related ECUs | ||
| Drive monitor display signal (Total average fuel consumption) | ||||||
| Average fuel consumption (After start) | Displayed | Input | CAN | Engine RPM data signal | ECM | A2, B3 |
| Fuel consumption signal | ||||||
| Vehicle speed (SP1) signal | Brake actuator assembly (Skid control ECU) | |||||
| Vehicle speed pulse signal integrated value signal | ||||||
| Average fuel consumption (After refuel) | Displayed | Input | CAN | Engine RPM data signal | ECM | A2, B3 |
| Fuel consumption signal | ||||||
| Vehicle speed (SP1) signal | Brake actuator assembly (Skid control ECU) | |||||
| Vehicle speed pulse signal integrated value signal | ||||||
| - | Output | CAN | Drive monitor display signal (Average fuel consumption after refuel) | Related ECUs | ||
| Average speed (After reset) | Displayed | Input | CAN | Engine RPM data signal | ECM | A2, B3 |
| Vehicle speed (SP1) signal | Brake actuator assembly (Skid control ECU) | |||||
| Vehicle speed pulse signal integrated value signal | ||||||
| Direct line | Reset signal | Steering pad switch assembly | ||||
| Average speed (After start) | Displayed | Input | CAN | Engine RPM data signal | ECM | A2, B3 |
| Vehicle speed (SP1) signal | Brake actuator assembly (Skid control ECU) | |||||
| Vehicle speed pulse signal integrated value signal | ||||||
| - | Output | CAN | Drive monitor unit signal 1 | Radio receiver assembly | ||
| Drive monitor display signal (After starting average speed) | ||||||
| Elapsed time (After reset) | Displayed | Input | CAN | Engine RPM data signal | ECM | A2, B3 |
| Direct line | Reset signal | Steering pad switch assembly | ||||
| Elapsed time (After start) | Displayed | Input | CAN | Engine RPM data signal | ECM | A2, B3 |
| - | Output | CAN | Drive monitor display signal (After starting driving time) | Related ECUs | ||
| Distance (Range) | Displayed | Input | CAN | Engine type information 1 signal | ECM | A2, B3 |
| Engine type information 2 signal | ||||||
| Engine type information 3 signal | ||||||
| Engine type information 4 signal | ||||||
| Engine RPM data signal | ||||||
| Drivetrain information signal | ||||||
| Fuel consumption signal | ||||||
| Vehicle speed pulse signal integrated value signal | Brake actuator assembly (Skid control ECU) | |||||
| Direct line | Fuel level signal | Fuel sender gauge assembly | ||||
| - | Output | CAN | Drive monitor unit signal 4 | Related ECUs | ||
| Drive monitor display signal (Drivable distance) | ||||||
| Distance (After start) | Displayed | Input | CAN | Engine RPM data signal | ECM | A2, B3 |
| Vehicle speed (SP1) signal | Brake actuator assembly (Skid control ECU) | |||||
| Vehicle speed pulse signal integrated value signal | ||||||
| Eco driving indicator zone | Displayed | Input | CAN | Eco-zone indicator level signal | ECM | A2, B3 |
| Tire pressure | Displayed | Input | CAN | TPMS FL (ID1) tire pressure information signal | Main body ECU (Multiplex network body ECU) | A2, B3 |
| TPMS FR (ID2) tire pressure information signal | ||||||
| TPMS RL (ID3) tire pressure information signal | ||||||
| TPMS RR (ID4) tire pressure information signal | ||||||
| TPMS SP (ID5) tire pressure information signal | ||||||
| TPMS FL (ID1) tire indicator information 0 signal | ||||||
| TPMS FR (ID2) tire indicator information 0 signal | ||||||
| TPMS RL (ID3) tire indicator information 0 signal | ||||||
| TPMS RR (ID4) tire indicator information 0 signal | ||||||
| TPMS SP (ID5) tire indicator information 0 signal | ||||||
| TPMS indicator number information 0 signal | ||||||
| TPMS unit information 0 signal | ||||||
| TPMS display request bit 0 signal | ||||||
| TPMS variation signal | ||||||
| AWD control*4 | Displayed | Input | CAN | Drivetrain information signal | 4WD ECU assembly | A2, B3 |
| Request data with AWD display signal | ||||||
| FR composition with AWD display signal | ||||||
| FL composition with AWD display signal | ||||||
| FL composition with AWD display signal | ||||||
| RL composition with AWD display signal | ||||||
| Steering signal | Steering sensor | |||||
| G monitor*6 | Displayed | Input | CAN | GL1, GX error signal | Yaw rate sensor assembly | B3 |
| GL2, GY error signal | ||||||
| GL1, GX invalidation/validation signal | ||||||
| GL2, GY invalidation/validation signal | ||||||
| GL1, GX sensor signal | ||||||
| GL2, GY sensor signal | ||||||
| Sensor type identification signal | ||||||
| G sensor zero point un-corrected status signal | Brake actuator assembly (Skid control ECU) | |||||
| GL1 zero point value signal | ||||||
| GL2 zero point value signal | ||||||
| Data continuity (valid/invalid) flag signal | Steering sensor | |||||
| Sensor error signal | ||||||
| Steering signal | ||||||
| Memorized zero point value inside steering angle sensor signal | ||||||
| Zero point memory invalid/valid inside sensor signal | ||||||
| Pressure of master cylinder error flag signal | Brake actuator assembly (Skid control ECU) | |||||
| Pressure of master cylinder invalid flag signal | ||||||
| Pressure of master cylinder signal | ||||||
| Event-data-recorder ENG03 signal | ECM | |||||
| Direct line | Change switch signal | Steering pad switch assembly | ||||
| Units change*6 | Displayed | Input | Direct line | Change switch signal | Steering pad switch assembly | A2, B3 |
| Other (Blank) | Displayed | - | - | - | - | A2, B3 |
| Navigation tab*8 | Displayed | Input | Local bus | Navigation system signal | Radio receiver assembly | A3, B7 |
| Navigation system-linked*8 | Displayed | Input | Local bus | Navigation system-linked signal | Radio receiver assembly | A2, B3 |
| Audio tab | Displayed | Input | Local bus | Audio system signal | Radio receiver assembly | A3, B7 |
| Audio system-linked | Displayed | Input | Local bus | Audio system-linked signal | Radio receiver assembly | A2, B3 |
| Driving assist system information tab | Displayed | Input | CAN | ACC display ID2 signal | ECM | A3, B7 |
| LDW existence flag signal | Forward recognition camera | |||||
| Dynamic radar cruise control system information (image display) | Displayed | Input | CAN | ACC display ID2 signal | ECM | A2, B3 |
| Control vehicle speed signal | ||||||
| Control vehicle speed unit signal | ||||||
| ACC over speed alert display request signal | ||||||
| C-ACC display request (Control) signal | ||||||
| C-ACC display request (Preceding vehicle communication) signal | ||||||
| Lane control system information (image display) | Displayed | Input | CAN | White line symbol right side signal | Forward recognition camera | A2, B3 |
| White line symbol left side signal | ||||||
| Steering wheel symbol signal | ||||||
| LTC existence flag signal | ||||||
| LTC confidence level signal | ||||||
| Leading vehicle follow-up control mode display request signal | ||||||
| Traffic sign*15 | Displayed | Input | CAN | Traffic sign 1 signal | Forward recognition camera | A2, A4, B1, B3 |
| Traffic sign 2 signal | ||||||
| Traffic sign 3 signal | ||||||
| Traffic sign 4 signal | ||||||
| Traffic sign 5 signal | ||||||
| Traffic sign graying 1 signal | ||||||
| Traffic sign graying 2 signal | ||||||
| Traffic sign graying 3 signal | ||||||
| Traffic sign graying 4 signal | ||||||
| Traffic sign graying 5 signal | ||||||
| Traffic sign highlight 1 signal | ||||||
| Traffic sign highlight 2 signal | ||||||
| Traffic sign highlight 3 signal | ||||||
| Traffic sign highlight 4 signal | ||||||
| Traffic sign highlight 5 signal | ||||||
| Supplemental sign 1 signal | ||||||
| Supplemental sign 2 signal | ||||||
| Supplemental sign 3 signal | ||||||
| Supplemental sign 4 signal | ||||||
| Supplemental sign 5 signal | ||||||
| Speed value 1 signal | ||||||
| Speed value 2 signal | ||||||
| Duplicated sign request signal | ||||||
| Sign number of permanent area signal | ||||||
| Synchronized ID 1 signal | ||||||
| Synchronized ID 2 signal | ||||||
| Synchronized ID 3 signal | ||||||
| Sign number of multi-information display right signal | ||||||
| Sign number of multi-information display center signal | ||||||
| Sign number of multi-information display left signal | ||||||
| Message tab | Displayed | - | - | - | - | A3, B7 |
| Setting tab | Displayed | - | - | - | - | A3, B7 |
| Shift position | Displayed | Input | CAN | Shift position P signal | ECM | A4, B5 |
| Shift position R signal | ||||||
| Shift position N signal | ||||||
| Shift position D signal | ||||||
| Shift gear signal | ||||||
| Mode indicator signal | ||||||
| Sports mode enable signal | ||||||
| Transmission oil temperature range signal | ||||||
| SPORT indicator*10 | Displayed | Input | CAN | Integrated sport mode indicator signal | ECM | A4, B10 |
| Drive mode select signal | ||||||
| SPORT S indicator*11 | Displayed | Input | CAN | Integrated sport mode signal | ECM | A4, B10 |
| Drive mode select signal | ||||||
| SPORT S+ indicator*11 | Displayed | Input | CAN | AVS (TEMS) light signal | Absorber control ECU | A4, B10 |
| Integrated sport mode signal | ECM | |||||
| Drive mode select signal | ||||||
| CUSTOM indicator*11 | Displayed | Input | CAN | Drive mode select signal | ECM | A4, B10 |
| ECO indicator | Displayed | Input | CAN | Eco mode indicator signal | ECM | A4, B10 |
| Drive mode select signal | ||||||
| Cruise control indicator light (Constant speed control mode) | Displayed | Input | CAN | ACC display ID2 signal | ECM | A4, B2 |
| Cruise control indicator light (Vehicle-to-vehicle distance control mode) | Displayed | Input | CAN | ACC display ID2 signal | ECM | A4, B2 |
| Cruise SET indicator light | Displayed | Input | CAN | ACC display ID2 signal | ECM | A4, B2 |
| Lane tracing assist indicator light | Displayed | Input | CAN | Indicator display signal | Forward recognition camera | A4, B2 |
| Fault condition text display signal | ||||||
| Temporary unusable condition text display signal | ||||||
| Front camera vision blocked signal | ||||||
| Steering assist unusable text display signal | ||||||
| Outside temperature | Displayed | Input | CAN | Ambient temperature display signal | Air conditioning amplifier assembly | A3, B1 |
| Ambient temperature display whole number/decimal (0/0.5°C) signal | ||||||
| Icy warning light | Displayed | Input | CAN | Engine RPM data signal | ECM | A3, B1 |
| Vehicle speed (SP1) signal | Brake actuator assembly (Skid control ECU) | |||||
| Ambient temperature display signal | Air conditioning amplifier assembly | |||||
| Ambient temperature display whole number/decimal (0/0.5°C) signal | ||||||
| Clock | Displayed | Input | Local bus | GPS information signal | Steering pad switch assembly | A3, B2 |
| Volume operation | Displayed | Input | Local bus | Volume signal | Radio receiver assembly | A2, B3 |
| Phone (Received call) | Displayed | Input | Local bus | Phone (Received call) signal | Radio receiver assembly | A2, B3 |
| Turn-by-turn navigation*8 | Displayed | Input | Local bus | Turn-by-turn signal | Radio receiver assembly | A2, B3 |
| Cruise control set speed | Displayed | Input | CAN | Control vehicle speed signal | ECM | A2, B3 |
| Control vehicle speed unit signal | ||||||
| REV indicator*6 | Displayed | Input | CAN | Engine RPM data signal | ECM | B9 |
| REV peak*6 | Displayed | Input | CAN | Engine RPM data signal | ECM | B9 |
| ACCESSORY | Displayed | Input | CAN | Display request of vehicle mode signal | Certification ECU (Smart key ECU assembly) | A1, B8 |
| IGNITION ON | Displayed | Input | CAN | Display request of vehicle mode signal | Certification ECU (Smart key ECU assembly) | A1, B8 |
| Suggestion function | Displayed | Input | CAN | Proposal service request 1 signal | Main body ECU (Multiplex network body ECU) | A2, B3 |
| Proposal service request 2 signal | ||||||
| Proposal service request 3 signal | ||||||
| Back door lock information signal | ||||||
| Power window inoperative advice signal | ||||||
| Direct line | Steering pad switch signal | Steering pad switch assembly | ||||
| - | Output | CAN | Proposal service response 1 signal | Main body ECU (Multiplex network body ECU) | ||
| Proposal service response 2 signal | ||||||
| Proposal service response 3 signal | ||||||
| PBD ON/OFF SW operation signal | ||||||
| AWD TEST MODE*4 | Displayed | Input | CAN | AWD warning ON and flashing request signal | 4WD ECU assembly | A2, B3 |
| CDY-2 | Displayed | Input | CAN | CDY mode signal | ECM | A2, B3 |
| CDY-4 | Displayed | Input | CAN | CDY mode signal | ECM | A2, B3 |
| ADJUSTING FORWARD CAMERA | Displayed | Input | CAN | Camera adjustment mode text display signal | Forward recognition camera | A2, B3 |
| ADJUSTING FRONT RADAR BEAM | Displayed | Input | CAN | Inspection mode for ACC signal | Forward recognition camera | A2, B3 |
| FRD adjustment signal | ||||||
| ERROR ADJUSTING FRONT RADAR BEAM | Displayed | Input | CAN | FRD adjustment signal | Forward recognition camera | A2, B3 |
| ADJUSTING FRONT RADAR BEAM VERTICAL | Displayed | Input | CAN | FRD adjustment signal | Forward recognition camera | A2, B3 |
| ADJUSTING FRONT RADAR BEAM HORIZONTAL | Displayed | Input | CAN | FRD adjustment signal | Forward recognition camera | A2, B3 |
| CHECKING PCS BRAKE | Displayed | Input | CAN | Inspection mode signal | Forward recognition camera | A2, B3 |
| CHECKING CRUISE CONTROL BRAKE | Displayed | Input | CAN | Inspection mode for ACC signal | Forward recognition camera | A2, B3 |
| WRITE ZERO-POINT OF STEERING ANGLE*3 | Displayed | Input | CAN | ICS multi-information signal | Clearance warning ECU assembly | A2, B3 |
| END OF ADJUSTMENT*3 | Displayed | Input | CAN | ICS multi-information signal | Clearance warning ECU assembly | A2, B3 |
| MEMORY ERROR*3 | Displayed | Input | CAN | ICS multi-information signal | Clearance warning ECU assembly | A2, B3 |
| Headlight System Uninitialized Visit Your Dealer*1 | Displayed | Input | CAN | LED headlight indicator signal | Headlight ECU sub-assembly LH | A2, B3 |
| BRAKE! | Displayed | Input | CAN | PCS warning message signal | Forward recognition camera | A2, B3 |
| Push and Hold Engine Switch for Emergency Stop | Displayed | Input | CAN | Smart system warning 2 signal | Certification ECU (Smart key ECU assembly) | A2, B3 |
| Shift to N and Press Engine Switch to Restart | Displayed | Input | CAN | Smart system warning 2 signal | Certification ECU (Smart key ECU assembly) | A2, B3 |
| Engine Stopped Shift to P | Displayed | Input | CAN | Engine stall message signal | ECM | A2, B3 |
| Engine Stopped Stop in a Safe Place | Displayed | Input | CAN | Engine stall message signal | ECM | A2, B3 |
| Engine Stopped Press Brake Firmly to Restart | Displayed | Input | CAN | Engine stall message signal | ECM | A2, B3 |
| Dynamic radarcruise contro lsystem warning (image display) | Displayed | Input | CAN | ACC display ID2 signal | ECM | A2, B3 |
| Control vehicle speed signal | ||||||
| Control vehicle speed unit signal | ||||||
| ACC over speed alert display request signal | ||||||
| Braking Power Low Stop in a Safe Place See Owner's Manual | Displayed | Input | CAN | Brake warning light control flag signal | Brake actuator assembly (Skid control ECU) | A2, B3 |
| Engine RPM data signal | ECM | |||||
| Direct line | Brake fluid level warning switch signal | Brake master cylinder reservoir assembly (Brake fluid level warning switch) | ||||
| Vacuum warning switch signal | Vacuum warning switch assembly | |||||
| Switch to Brake*3 | Displayed | Input | CAN | ICS multi-information signal | Clearance warning ECU assembly | A2, B3 |
| Press Brake Pedal*3 | Displayed | Input | CAN | ICS multi-information signal | Clearance warning ECU assembly | A2, B3 |
| BRAKE!*3 | Displayed | Input | CAN | ICS multi-information signal | Clearance warning ECU assembly | A2, B3 |
| Object Detected Acceleration Reduced*3 | Displayed | Input | CAN | ICS multi-information signal | Clearance warning ECU assembly | A2, B3 |
| Shift to P Before Exiting Vehicle | Displayed | Input | CAN | Smart system warning 2 signal | Certification ECU (Smart key ECU assembly) | A2, B3 |
| Each door open (vehicle being driven) (image display) | Displayed | Input | CAN | Driver door courtesy switch signal | Main body ECU (Multiplex network body ECU) | A2, B3 |
| Front passenger door courtesy switch signal | ||||||
| Rear right door courtesy switch signal | ||||||
| Rear left door courtesy switch signal | ||||||
| Back door courtesy switch signal | ||||||
| Hood courtesy switch signal | ||||||
| Steering wheel signal | ||||||
| Vehicle speed (SP1) signal | Brake actuator assembly (Skid control ECU) | |||||
| Each door open (vehicle stopped, engine switch on (IG)) (image display) | Displayed | Input | CAN | Driver door open display signal | Certification ECU (Smart key ECU assembly) | A2, B3 |
| Front passenger door open display signal | ||||||
| Rear right open display signal | ||||||
| Rear left open display signal | ||||||
| Driver door courtesy switch signal | Main body ECU (Multiplex network body ECU) | |||||
| Front passenger door courtesy switch signal | ||||||
| Rear right door courtesy switch signal | ||||||
| Rear left door courtesy switch signal | ||||||
| Back door courtesy switch signal | ||||||
| Hood courtesy switch signal | ||||||
| Steering wheel signal | ||||||
| Clearance sonar detection (image display)*3 | Displayed | Input | CAN | Combination meter display request signal | Clearance warning ECU assembly | A2, B3 |
| Sensor DIAG request signal | ||||||
| Front left area information signal | ||||||
| Front right area information signal | ||||||
| Front center left area information signal | ||||||
| Front center right area information signal | ||||||
| Rear left area information signal | ||||||
| Rear right area information signal | ||||||
| Rear center left area information signal | ||||||
| Rear center right area information signal | ||||||
| Parking Assist Malfunction Visit Your Dealer*3 | Displayed | Input | CAN | Sensor DIAG request signal | Clearance warning ECU assembly | A2, B3 |
| Parking Assist Unavailable Clean Parking Assist Sensor*3 | Displayed | Input | CAN | Sensor DIAG request signal | Clearance warning ECU assembly | A2, B3 |
| Parking Assist Unavailable*3 | Displayed | Input | CAN | Sensor DIAG request signal | Clearance warning ECU assembly | A2, B3 |
| Rear Cross Traffic Alert Malfunction Visit Your Dealer*13 | Displayed | Input | CAN | RCTA system status signal | Blind spot monitor sensor LH | A2, B3 |
| Rear Cross Traffic Alert Unavailable*13 | Displayed | Input | CAN | RCTA system status signal | Blind spot monitor sensor LH | A2, B3 |
| Check Fuel Cap | Displayed | Input | CAN | Fuel cap open indicator (multi-information display) signal | ECM | A2, B3 |
| EPB can't be Released Close Door and Fasten Your Seatbelt | Displayed | Input | CAN | EPB multi-information display signal | Brake actuator assembly (Skid control ECU) | A2, B3 |
| Power Turned Off to Save Battery | Displayed | Input | CAN | Smart system warning 2 signal | Certification ECU (Smart key ECU assembly) | A2, B3 |
| Shift to P Before Exiting Vehicle | Displayed | Input | CAN | Smart system warning 2 signal | Certification ECU (Smart key ECU assembly) | A2, B3 |
| Power Steering Malfunction Steering Power Low Visit Your Dealer | Displayed | Input | CAN | Multi-information request signal | Power steering ECU assembly | A2, B3 |
| Steering Power Low Visit Your Dealer | Displayed | Input | CAN | Multi-information request signal | Power steering ECU assembly | A2, B3 |
| Power Steering Malfunction Visit Your Dealer | Displayed | Input | CAN | Multi-information request signal | Power steering ECU assembly | A2, B3 |
| Release Parking Brake | Displayed | Input | CAN | EPB multi-information display signal | Brake actuator assembly (Skid control ECU) | A2, B3 |
| Vehicle May Roll Shift to P | Displayed | Input | CAN | EPB multi-information display signal | Brake actuator assembly (Skid control ECU) | A2, B3 |
| Brake Hold Fault Depress Brake to Deactivate Visit Your Dealer | Displayed | Input | CAN | Brake hold information control flag signal | Brake actuator assembly (Skid control ECU) | A2, B3 |
| Brake Hold Warning Depress Brake on Slope | Displayed | Input | CAN | Brake hold information control flag signal | Brake actuator assembly (Skid control ECU) | A2, B3 |
| Wiper System Malfunction Visit Your Dealer | Displayed | Input | CAN | Wiper fault signal | Main body ECU (Multiplex network body ECU) | A2, B3 |
| EPB Activation Stopped Incompletely | Displayed | Input | CAN | EPB multi-information display signal | Brake actuator assembly (Skid control ECU) | A2, B3 |
| Key Not Detected Check Key Location | Displayed | Input | CAN | Smart system warning 1 signal | Certification ECU (Smart key ECU assembly) | A2, B3 |
| Release Parking Brake while Depressing Brake | Displayed | Input | CAN | EPB multi-information display signal | Brake actuator assembly (Skid control ECU) | A2, B3 |
| Release Accelerator | Displayed | Input | CAN | GOS multi-information request signal | ECM | A2, B3 |
| LTA Hold Steering Wheel | Displayed | Input | CAN | Hands free caution text display signal | Forward recognition camera | A2, B3 |
| LTC existence information signal | ||||||
| LTA Steering Assist Unavailable Hold Steering Wheel | Displayed | Input | CAN | Hands free caution text display signal | Forward recognition camera | A2, B3 |
| LTC existence information signal | ||||||
| Parking Brake Overheated Parking Brake Unavailable | Displayed | Input | Direct line | EPB multi-information display signal | Brake actuator assembly (Skid control ECU) | A2, B3 |
| Check Engine Visit Your Dealer | Displayed | Input | CAN | Engine malfunction message signal | ECM | A2, B3 |
| Check Engine Reduced Engine Power Visit Your Dealer | Displayed | Input | CAN | Engine malfunction message signal | ECM | A2, B3 |
| Reduced Engine Power Visit Your Dealer | Displayed | Input | CAN | Engine malfunction message signal | ECM | A2, B3 |
| Engine Maintenance Required Visit Your Dealer | Displayed | Input | CAN | Engine malfunction message signal | ECM | A2, B3 |
| SRS Airbag System Malfunction Visit Your Dealer | Displayed | Input | CAN | Airbag warning light control request signal | Airbag sensor assembly | A2, B3 |
| Antilock Brake System Malfunction Visit Your Dealer | Displayed | Input | CAN | ABS warning light control flag signal | Brake actuator assembly (Skid control ECU) | A2, B3 |
| Engine Coolant Temp High Stop in a Safe Place See Owner's Manual | Displayed | Input | CAN | Engine coolant temperature signal | ECM | A2, B3 |
| Charging System Malfunction See Owner's Manual | Displayed | Input | CAN | Charge light indicator signal | ECM | A2, B3 |
| Radar Cruise Control Unavailable Clean Sensor | Displayed | Input | CAN | ACC display ID2 signal | ECM | A2, B3 |
| Radar Cruise Control Unavailable | Displayed | Input | CAN | ACC display ID2 signal | ECM | A2, B3 |
| Radar Cruise Control Unavailable Depress Brake to Resume Driving | Displayed | Input | CAN | ACC display ID2 signal | ECM | A2, B3 |
| Access System with Elec. Key Malfunction See Owner's Manual | Displayed | Input | CAN | Smart system warning 2 signal | Certification ECU (Smart key ECU assembly) | A2, B3 |
| Blind Spot Monitor Unavailable*13 | Displayed | Input | CAN | BSD module status signal | Blind spot monitor sensor LH | A2, B3 |
| Cruise Control Malfunction Visit Your Dealer | Displayed | Input | CAN | ACC display ID2 signal | ECM | A2, B3 |
| Cruise Control Fault Press Brake to Deactivate Visit Your Dealer | Displayed | Input | CAN | ACC display ID2 signal | ECM | A2, B3 |
| LTA Malfunction Visit Your Dealer | Displayed | Input | CAN | Fault condition text display signal | Forward recognition camera | A2, B3 |
| LTC existence information signal | ||||||
| Front Camera System Unavailable | Displayed | Input | CAN | PCS temperature message (Camera) signal | Forward recognition camera | A2, B3 |
| LTA Unavailable | Displayed | Input | CAN | Steering assist unusable text display signal | Forward recognition camera | A2, B3 |
| LTC existence information signal | ||||||
| LTA Turned On Steering Assist Active | Displayed | Input | CAN | LKA mode text display signal | Forward recognition camera | A2, B3 |
| LTC existence information signal | ||||||
| LTA Turned On Steering Assist Inactive | Displayed | Input | CAN | LKA mode text display signal | Forward recognition camera | A2, B3 |
| LTC existence information signal | ||||||
| Front Camera Unavailable See Owner's Manual | Displayed | Input | CAN | PCS dust message (Camera) signal | Forward recognition camera | A2, B3 |
| Pre-Collision System Malfunction Visit Your Dealer | Displayed | Input | CAN | PCS fault condition text display signal | Driving support ECU assembly | A2, B3 |
| Blind Spot Monitor System Malfunction Visit Your Dealer*13 | Displayed | Input | CAN | BSD module status signal | Blind spot monitor sensor LH | A2, B3 |
| Oil Pressure Low Stop in a Safe Place See Owner's Manual | Displayed | Input | CAN | Engine RPM data signal | ECM | A2, B3 |
| Direct line | Engine oil pressure signal | Engine oil pressure switch assembly | ||||
| Transmission Fluid Temp High See Owner's Manual | Displayed | Input | CAN | Engine RPM data signal | ECM | A2, B3 |
| AT oil temperature warning signal | ||||||
| AT oil temperature warning mode signal | ||||||
| AWD System Malfunction 2WD Mode Engaged Visit Your Dealer*4 | Displayed | Input | CAN | AWD warning ON and flashing request signal | 4WD ECU assembly | A2, B3 |
| Parking Brake Unavailable | Displayed | Input | CAN | EPB multi-information display signal | Brake actuator assembly (Skid control ECU) | A2, B3 |
| Electronic Parking Brake Malfunction Visit Your Dealer | Displayed | Input | CAN | EPB multi-information display signal | Brake actuator assembly (Skid control ECU) | A2, B3 |
| Radar Cruise Active Please Pay Attention to Other Vehicles | Displayed | Input | CAN | ACC display ID2 signal | ECM | A2, B3 |
| LTA Unavailable Below Approx 50km/h | Displayed | Input | CAN | Speed condition failure text display signal | Forward recognition camera | A2, B3 |
| LTC existence information signal | ||||||
| LTA Unavailable Below Approx 32MPH | Displayed | Input | CAN | Speed condition failure text display signal | Forward recognition camera | A2, B3 |
| LTC existence information signal | ||||||
| LTA Unavailable at Current Speed | Displayed | Input | CAN | Speed condition failure text display signal | Forward recognition camera | A2, B3 |
| Dynamic radar cruise control or lane tracing assist indicator | Displayed | Input | CAN | White line symbol left side signal | Forward recognition camera | A2, B3 |
| White line symbol right side signal | ||||||
| Steering wheel symbol signal | ||||||
| ACC display ID2 signal | ECM | |||||
| Engine Stopped Steering Power Low | Displayed | Input | CAN | Multi-information request signal | Power steering ECU assembly | A2, B3 |
| Turn Off Vehicle | Displayed | Input | CAN | Smart system warning 2 signal | Certification ECU (Smart key ECU assembly) | A2, B3 |
| Would You Like to Take a Break? | Displayed | Input | CAN | SWS rest advisory display signal | Forward recognition camera | A2, B3 |
| Please Take a Break | Displayed | Input | CAN | SWS rest advisory display signal | Forward recognition camera | A2, B3 |
| Key Left inside Vehicle | Displayed | Input | CAN | Smart system warning 3 signal | Certification ECU (Smart key ECU assembly) | A2, B3 |
| Turn Lights Off*9 | Displayed | Input | CAN | Driver door courtesy switch signal | Main body ECU (Multiplex network body ECU) | A2, B3 |
| Lighting system state signal | ||||||
| Moon Roof Open*7 | Displayed | Input | CAN | Slide roof open warning request signal | Main body ECU (Multiplex network body ECU) | A2, B3 |
| Window Open | Displayed | Input | CAN | Power window open warning request signal | Main body ECU (Multiplex network body ECU) | A2, B3 |
| Window / Moon Roof Open*7 | Displayed | Input | CAN | Slide roof open warning request signal | Main body ECU (Multiplex network body ECU) | A2, B3 |
| Power window open warning request signal | ||||||
| Depress Brake and Then Touch Key to Engine Switch | Displayed | Input | CAN | Smart system warning 1 signal | Certification ECU (Smart key ECU assembly) | A2, B3 |
| Depress Brake and Then Start Engine | Displayed | Input | CAN | Smart system warning 3 signal | Certification ECU (Smart key ECU assembly) | A2, B3 |
| Steering Wheel Lock Press Engine Switch while Turning Wheel | Displayed | Input | CAN | Smart system warning 1 signal | Certification ECU (Smart key ECU assembly) | A2, B3 |
| Brake Hold Malfunction Visit Your Dealer | Displayed | Input | CAN | Brake hold information control flag signal | Brake actuator assembly (Skid control ECU) | A2, B3 |
| Brake Hold Less Effective during Icy Conditions | Displayed | Input | CAN | Brake hold information control flag signal | Brake actuator assembly (Skid control ECU) | A2, B3 |
| Brake Hold Active Depress Brake and Switch to Deactivate | Displayed | Input | CAN | Brake hold information control flag signal | Brake actuator assembly (Skid control ECU) | A2, B3 |
| Brake Hold Unavailable Driver Door Open | Displayed | Input | CAN | Brake hold information control flag signal | Brake actuator assembly (Skid control ECU) | A2, B3 |
| Brake Hold Unavailable Driver Seat Belt Unbuckled | Displayed | Input | CAN | Brake hold information control flag signal | Brake actuator assembly (Skid control ECU) | A2, B3 |
| Brake Hold Unavailable Hood or Trunk Open | Displayed | Input | CAN | Brake hold information control flag signal | Brake actuator assembly (Skid control ECU) | A2, B3 |
| Depress Brake to Maintain Brake Hold | Displayed | Input | CAN | Brake hold information control flag signal | Brake actuator assembly (Skid control ECU) | A2, B3 |
| Close Driver Door to Maintain Brake Hold | Displayed | Input | CAN | Brake hold information control flag signal | Brake actuator assembly (Skid control ECU) | A2, B3 |
| Fasten Driver Seat Belt to Maintain Brake Hold | Displayed | Input | CAN | Brake hold information control flag signal | Brake actuator assembly (Skid control ECU) | A2, B3 |
| Parking Brake Activated Release before Driving | Displayed | Input | CAN | EPB multi-information display signal | Brake actuator assembly (Skid control ECU) | A2, B3 |
| Brake Hold Unavailable | Displayed | Input | CAN | Brake hold information control flag signal | Brake actuator assembly (Skid control ECU) | A2, B3 |
| Brake Hold Deactivated | Displayed | Input | CAN | Brake hold information control flag signal | Brake actuator assembly (Skid control ECU) | A2, B3 |
| Brake Hold Deactivated Parking Brake Automatically Applied | Displayed | Input | CAN | Brake hold information control flag signal | Brake actuator assembly (Skid control ECU) | A2, B3 |
| AWD System Overheated 2WD Mode Engaged*4 | Displayed | Input | CAN | AWD warning ON and flashing request signal | 4WD ECU assembly | A2, B3 |
| AWD System Overheated Switching to 2WD Mode*4 | Displayed | Input | CAN | AWD warning ON and flashing request signal | 4WD ECU assembly | A2, B3 |
| Drive-Start Control Malfunction Visit Your Dealer | Displayed | Input | CAN | GOS multi-information request signal | ECM | A2, B3 |
| ICS Malfunction Visit Your Dealer*3 | Displayed | Input | CAN | ICS multi-information signal | Clearance warning ECU assembly | A2, B3 |
| Brake Override Malfunction Visit Your Dealer | Displayed | Input | CAN | BOS multi-information request signal | ECM | A2, B3 |
| Parking Support Brake Malfunction Visit Your Dealer*3 | Displayed | Input | CAN | ICS multi-information signal | Clearance warning ECU assembly | A2, B3 |
| Parking Support Brake Unavailable*3 | Displayed | Input | CAN | ICS multi-information signal | Clearance warning ECU assembly | A2, B3 |
| Parking Support Brake Unavailable Remove the Dirt of Rear Camera*3 | Displayed | Input | CAN | ICS multi-information signal | Clearance warning ECU assembly | A2, B3 |
| Key Battery Low | Displayed | Input | CAN | Smart system warning 1 signal | Certification ECU (Smart key ECU assembly) | A2, B3 |
| Engine Oil Level Low Add or Replace | Displayed | Input | CAN | Engine RPM data signal | ECM | A2, B3 |
| Engine coolant temperature signal | ||||||
| Direct line | Engine oil level signal | Engine oil level sensor | ||||
| Headlight System Malfunction Visit Your Dealer | Displayed | Input | CAN | AFS OFF indicator request signal*14 | Headlight ECU sub-assembly LH | A2, B3 |
| Headlight leveling indicator signal*1 | ||||||
| LED headlight indicator signal*1 | ||||||
| LED headlight indicator signal*12 | Main body ECU (Multiplex network body ECU) | |||||
| Smart beam indicator signal | ||||||
| RSA Malfunction Visit Your Dealer*17 | Displayed | Input | CAN | TSR warning message signal | Forward recognition camera | A2, B3 |
| Accelerator and Brake Pedals Depressed Simultaneously | Displayed | Input | CAN | BOS multi-information request signal | ECM | A2, B3 |
| Tire pressure indicator (image display) | Displayed | Input | CAN | TPMS display request bit 0 signal | Main body ECU (Multiplex network body ECU) | A2, B3 |
| Windshield Washer Fluid Low | Displayed | Input | Direct line | Washer fluid level signal | Level warning switch assembly | A2, B3 |
| Fuel Low | Displayed | Input | CAN | Fuel level signal | Fuel sender gauge assembly | A2, B3 |
| - | Output | CAN | Request GS search signal | Radio receiver assembly*8 | ||
| Roads May Be Icy Drive with Care | Displayed | Input | CAN | Engine RPM data signal | ECM | A2, B3 |
| Vehicle speed (SP1) signal | Brake actuator assembly (Skid control ECU) | |||||
| Ambient temperature display signal | Air conditioning amplifier assembly | |||||
| Ambient temperature display whole number/decimal (0/0.5°C) signal | ||||||
| Traction Control Turned Off | Displayed | Input | CAN | Traction control off light signal | Brake actuator assembly (Skid control ECU) | A2, B3 |
| Oil Maintenance Required Soon | Displayed | Input | CAN | Oil change indicator 2 signal | ECM | A2, B3 |
| Maintenance Required Soon*2 | Displayed | Input | CAN | Oil change indicator signal | ECM | A2, B3 |
| Oil Maintenance Required Visit Your Dealer | Displayed | Input | CAN | Oil change indicator 2 signal | ECM | A2, B3 |
| Maintenance Required Visit Your Dealer*2 | Displayed | Input | CAN | Oil change indicator signal | ECM | A2, B3 |
| To Activate Auto High Beam, Switch Headlights to High Beam | Displayed | Input | CAN | Smart beam advice signal | Main body ECU (Multiplex network body ECU) | A2, B3 |
| A New Key has been Registered Contact Your Dealer for Details | Displayed | Input | CAN | Smart system warning 2 signal | Certification ECU (Smart key ECU assembly) | A2, B3 |
| Depress Brake and Then Start Engine | Displayed | Input | CAN | Smart system warning 1 signal | Certification ECU (Smart key ECU assembly) | A2, B3 |
| VSC Turned Off Pre-Collision Brake System Unavailable | Displayed | Input | CAN | PB temporary unusable condition text display signal | Forward recognition camera | A2, B3 |
| VSC OFF light signal | Brake actuator assembly (Skid control ECU) | |||||
| Pre-Collision System Unavailable | Displayed | Input | CAN | PCS temporary unusable condition text display signal | Forward recognition camera | A2, B3 |
| High Power Consumption Partial Limit On AC/Heater Operation | Displayed | Input | CAN | A/C load limitation warning signal | Air conditioning amplifier assembly | A2, B3 |
| Pre-Collision System Unavailable | Displayed | Input | CAN | PCS temperature message (Radar) signal | Forward recognition camera | A2, B3 |
| Pre-Collision System Unavailable Clean Sensor | Displayed | Input | CAN | PCS dust message (Radar) signal | Forward recognition camera | A2, B3 |
| Pre-Collision System Off | Displayed | Input | CAN | PCS warning message signal | Forward recognition camera | A2, B3 |
| PCS warning distance unusable condition text display signal | ||||||
| PCS distance warning signal | ||||||
| PCS ped warning signal | ||||||
| PCS preceding vehicle start notification signal | ||||||
| Automatic Mode On Shift Operation Sets or Releases Parking Brake | Displayed | Input | Direct line | EPB warning 2 signal | Brake actuator assembly (Skid control ECU) | A2, B3 |
| Automatic Mode Off | Displayed | Input | Direct line | EPB warning 2 signal | Brake actuator assembly (Skid control ECU) | A2, B3 |
| Each door open (vehicle stopped, engine switch off) | Displayed | Input | CAN | Driver door courtesy switch signal | Main body ECU (Multiplex network body ECU) | A2, B3 |
| Front passenger door courtesy switch signal | ||||||
| Rear right door courtesy switch signal | ||||||
| Rear left door courtesy switch signal | ||||||
| Back door courtesy switch signal | ||||||
| Hood courtesy switch signal | ||||||
| Steering wheel signal | ||||||
| Clearance sonar temporary mute operation guide (image display)*3 | Displayed | Input | CAN | Clearance sonar mute switch input signal | Clearance warning ECU assembly | A2, B3 |
| - | Output | CAN | Clearance sonar mute switch input signal | Clearance warning ECU assembly |
- *1: w/ Automatic Headlight Beam Level Control System
- *2: w/ Scheduled Maintenance Required Reminder
- *3: w/ Intelligent Clearance Sonar System
- *4: for AWD
- *5: w/ Manual (SOS) Switch
- *6: for TFT Meter Type
- *7: w/ Sliding Roof System or Panoramic Moon Roof System
- *8: w/ Navigation System
- *9: w/ Light Reminder Warning
- *10: w/o Adaptive Variable Suspension System
- *11: w/ Adaptive Variable Suspension System
- *12: w/o Automatic Headlight Beam Level Control System
- *13: w/ Blind Spot Monitor System
- *14: w/ AFS (Adaptive Front-lighting System)
- *15: w/ Road Sign Assist System
(d) Buzzer
| Item | Condition | Input/Output | Communication line | Signal | Component |
|---|---|---|---|---|---|
| Seat belt warning (for Driver side) buzzer | Sounds intermittently (Maximum 5 times) | Input | CAN | Driver seat belt buckle switch signal | Main body ECU (Multiplex network body ECU) |
| Sounds once/Sounds intermittently | Input | CAN | Driver seat buckle switch signal | Main body ECU (Multiplex network body ECU) | |
| Parking brake switch signal | |||||
| Shift position P signal | ECM | ||||
| Shift position R signal | |||||
| Restart while driving notification buzzer | Sounds continuously | Input | CAN | Smart system warning 2 signal | Certification ECU (Smart key ECU assembly) |
| Engine switch operation while driving warning buzzer | Sounds intermittently | Input | CAN | Buzzer request signal | Certification ECU (Smart key ECU assembly) |
| Seat belt warning (for Front passenger side) buzzer | Sounds once/Sounds intermittently | Input | CAN | Parking brake switch signal | Main body ECU (Multiplex network body ECU) |
| Shift position P signal | ECM | ||||
| Shift position R signal | |||||
| Front passenger seat occupant detection status signal | Airbag sensor assembly | ||||
| Front passenger seat belt buckle switch detection status signal | |||||
| Seat belt warning (for Rear seat) buzzer | Sounds intermittently | Input | CAN | Parking brake switch signal | Main body ECU (Multiplex network body ECU) |
| Rear right door courtesy switch signal | |||||
| Rear left door courtesy switch signal | |||||
| Vehicle speed (SP1) signal | Brake actuator assembly (Skid control ECU) | ||||
| Shift position P signal | ECM | ||||
| Shift position R signal | |||||
| Direct line | Rear No. 1 left seat belt buckle switch signal | Rear seat inner belt assembly LH | |||
| Rear No. 1 right seat belt buckle switch signal | Rear seat 3 point type belt assembly RH | ||||
| Rear center seat belt buckle switch signal | Rear center seat inner belt assembly*3 | ||||
| Rear No. 2 left seat belt buckle switch signal | Rear No. 2 seat inner belt assembly LH*2 | ||||
| Rear No. 2 right seat belt buckle switch signal | Rear No. 2 seat inner belt assembly RH*2 | ||||
| Lane tracing alert cancel buzzer | Sounds twice | Input | CAN | Lane departure alert cancel buzzer signal | Forward recognition camera |
| Emergency stop buzzer | Sounds continuously | Input | CAN | Buzzer request signal | Certification ECU (Smart key ECU assembly) |
| Vehicle roll-away notification buzzer | Sounds once/Sounds intermittently | Input | CAN | Engine stall buzzer signal | ECM |
| Brake fluid low warning buzzer | Sounds intermittently | Input | CAN | Vehicle speed (SP1) signal | Brake actuator assembly (Skid control ECU) |
| Direct line | Brake fluid level warning switch signal | Brake master cylinder reservoir assembly (Brake fluid level warning switch) | |||
| Oil pressure warning buzzer | Sounds intermittently | Input | CAN | Engine RPM data signal | ECM |
| Direct line | Engine oil pressure signal | Engine oil pressure switch assembly | |||
| EPS warning buzzer | Sounds once/Sounds intermittently | Input | CAN | Demand buzzer to meter signal | Power steering ECU assembly |
| Lane tracing alert warning buzzer | Sounds intermittently | Input | CAN | LDW buzzer signal | Forward recognition camera |
| Engine coolant temperature warning buzzer | Sounds once | Input | CAN | Engine coolant temperature signal | ECM |
| Smart key warning buzzer | Sounds intermittently | Input | CAN | Meter buzzer intermittence request signal | Certification ECU (Smart key ECU assembly) |
| Sounds intermittently (Maximum 9 times) | Input | CAN | Meter buzzer intermittent request (0.7 sec. cycle) signal | ||
| Sounds once | Input | CAN | Meter buzzer single-shot request signal | ||
| Sounds continuously | Input | CAN | Meter buzzer continuation request signal | ||
| P shift operation advice buzzer | Sounds once | Input | CAN | Buzzer request signal | Certification ECU (Smart key ECU assembly) |
| Multi-information display warning buzzer | Sounds once | Input | CAN | Multi-information display warning signal | Related ECUs |
| Direct line | |||||
| Electric parking brake cancel buzzer | Sounds twice | Input | CAN | Brake hold information control flag signal | Brake actuator assembly (Skid control ECU) |
| Brake hold control non-cancellation warning buzzer | Sounds twice | Input | CAN | Brake hold information control flag signal | Brake actuator assembly (Skid control ECU) |
| Radar cruise control low speed cancel buzzer | Sounds twice | Input | CAN | Low speed cancel buzzer request signal | ECM |
| Low speed range of the vehicle in front buzzer | Sounds four times | Input | CAN | Low speed zone leading vehicle lost buzzer signal | ECM |
| Lane tracing alert hands-free caution buzzer | Sounds intermittently | Input | CAN | Hands-free caution text display signal | Forward recognition camera |
| Immobiliser key identification completion buzzer | Sounds once | Input | CAN | Immobiliser key identification completion signal | Certification ECU (Smart key ECU assembly) |
| Driving with parking brake unreleased warning buzzer | Sounds intermittently | Input | CAN | EPB multi-information display signal | Brake actuator assembly (Skid control ECU) |
| Driving with door open warning buzzer | Sounds intermittently | Input | CAN | Driver door courtesy switch signal | Main body ECU (Multiplex network body ECU) |
| Front passenger door courtesy switch signal | |||||
| Rear right door courtesy switch signal | |||||
| Rear left door courtesy switch signal | |||||
| Back door courtesy switch signal | |||||
| Hood courtesy switch signal | |||||
| Vehicle speed (SP1) signal | Brake actuator assembly (Skid control ECU) | ||||
| Unsteady driving alert buzzer | Sounds twice | Input | CAN | SWS buzzer request signal | Forward recognition camera |
| Sports shift reject buzzer | Sounds twice | Input | CAN | Reject buzzer signal | ECM |
| Light reminder buzzer*1 | Sounds continuously | Input | CAN | Lighting system state signal | Main body ECU (Multiplex network body ECU) |
| Driver door courtesy switch signal | |||||
| Vehicle sway warning buzzer | Sounds twice | Input | CAN | SWS buzzer request signal | Forward recognition camera |
| Road sign assist buzzer*6 | Sounds intermittently | Input | CAN | Buzzer request of permanent area signal | Forward recognition camera |
| Buzzer request of driving assist system information tab signal | |||||
| Engine malfunction buzzer | Sounds once | Input | CAN | Engine malfunction buzzer signal | ECM |
| Turn signal flasher buzzer | Sounds intermittently | Input | CAN | Flasher request signal | Main body ECU (Multiplex network body ECU) |
| PBD hazard request signal | Multiplex network door ECU*4 | ||||
| Hazard light activation request signal | DCM (Telematics transceiver)*5 | ||||
| Direct line | LH turn signal switch signal | Headlight dimmer switch assembly | |||
| RH turn signal switch signal | |||||
| Hazard warning switch signal | Radio receiver assembly (Hazard warning signal switch) |
- *1: w/ Light Reminder Warning
- *2: w/ Rear No. 2 Seat
- *3: for 60/40 Split Seat Type
- *4: w/ Power Back Door System
- *5: w/ Manual (SOS) Switch
- *6: w/ Road Sign Assist System
(e) Others
| Item | Condition | Input/Output | Communication line | Signal | Component |
|---|---|---|---|---|---|
| Speed signal for direct line | - | Input | Direct line | Vehicle speed pulse input signal | Brake actuator assembly (Skid control ECU) |
| Output | Direct line | Vehicle speed pulse output signal | Related ECUs | ||
| Meter illumination | Illumination level | Input | CAN | Illuminance data signal | Main body ECU (Multiplex network body ECU) |
| Auto dimmer signal | |||||
| Taillight request signal | |||||
| Parked condition signal | |||||
| Panel lighting request signal | |||||
| Direct line | Illumination level signal | Trip switch assembly | |||
| - | Output | CAN | Rheostat duty signal | Related ECUs | |
| Lounge illumination off signal | |||||
| Tail cancel signal | |||||
| Direct line | Illumination level output signal |
MULTI-INFORMATION DISPLAY FLOW CHART
| *a | Conditions are met | *b | Conditions are not met |
| *c | If there are multiple display requests, items will be displayed in sequence | *d | Item or display is selected by operating the steering pad switch |
| *e | Odometer display is displayed for a certain period of time after the engine switch is turned off | *f | After engine switch is turned on (IG) |
DESCRIPTION OF WARNING DISPLAYS
| Priority | System name/(Vehicle Function) | Master Warning Light ○: Comes on ●: Blinks | Buzzer (*1) | Display | Level |
|---|---|---|---|---|---|
| 1 | Dynamic torque control AWD system | - | - | AWD TEST MODE | Caution |
| (Chassis dynamometer mode) | - | - | CDY-2 | Caution | |
| - | - | CDY-4 | Caution | ||
| Lane control system | - | - | ADJUSTING FORWARD CAMERA | Caution | |
| Dynamic radar cruise control system | - | - | ADJUSTING FRONT RADAR BEAM | Caution | |
| Pre-collision system | - | - | ERROR ADJUSTING FRONT RADAR BEAM | Caution | |
| - | - | ADJUSTING FRONT RADAR BEAM VERTICAL | Caution | ||
| - | - | ADJUSTING FRONT RADAR BEAM HORIZONTAL | Caution | ||
| - | - | CHECKING PCS BRAKE | Caution | ||
| Dynamic radar cruise control system | - | - | CHECKING CRUISE CONTROL BRAKE | Caution | |
| Intelligent clearance sonar system | - | - | WRITE ZERO-POINT OF STEERING ANGLE | Caution | |
| - | - | END OF ADJUSTMENT | Caution | ||
| - | - | MEMORY ERROR | Caution | ||
| Lighting system | - | - | Headlight System Uninitialized Visit Your Dealer | Advisory | |
| Pre-collision system | - | - | BRAKE! | Warning | |
| Smart access system with push-button start | ● | * | Push and Hold Engine Switch for Emergency Stop | Warning | |
| ● | * | Shift to N and Press Engine Switch to Restart | Caution | ||
| (Vehicle roll-away warning) | ○ | * | Engine Stopped Shift to P | Caution | |
| ● | * | Engine Stopped Stop in a Safe Place | Caution | ||
| ○ | * | Engine Stopped Press Brake Firmly to Restart | Caution | ||
| 2 | Dynamic radar cruise control system | - | - | Dynamic radar cruise control system warning (image display) | Warning |
| Vehicle stability control system | ● | ○ | Braking Power Low Stop in a Safe Place See Owner's Manual | Warning | |
| Intelligent clearance sonar system | ● | ○ | Switch to Brake | Caution | |
| ● | ○ | BRAKE! | Caution | ||
| ● | ○ | Object Detected Acceleration Reduced | Caution | ||
| Smart access system with push-button start | ● | ○ | Shift to P Before Exiting Vehicle | Caution | |
| 3 | (Each door warning (vehicle being driven)) | ● | * | Each door open (vehicle being driven) (image display) | Caution |
| (Each door warning (vehicle stopped, engine switch on (IG)) | - | - | Each door open (vehicle stopped) (image display) | Caution | |
| Intuitive parking assist system (w/ Intelligent Clearance Sonar System) | - | - | Clearance sonar detection (image display) | Caution | |
| ○ | ○ | Parking Assist Malfunction Visit Your Dealer | Caution | ||
| ○ | ○ | Parking Assist Unavailable Clean Parking Assist Sensor | Caution | ||
| ○ | ○ | Parking Assist Unavailable | Caution | ||
| Blind spot monitor system | ○ | ○ | Rear Cross Traffic Alert Malfunction Visit Your Dealer | Caution | |
| ○ | ○ | Rear Cross Traffic Alert Unavailable | Caution | ||
| 4 | SFI system | ○ | ○ | Check Fuel Cap | Caution |
| Smart access system with push-button start | - | - | Power Turned Off to Save Battery | Caution | |
| 5 | Electrical parking brake system | ● | ○ | EPB can't be Released Close Door and Fasten Your Seatbelt | Caution |
| 6 | Smart access system with push-button start | ● | * | Shift to P Before Exiting Vehicle | Caution |
| 7 | Power steering system | ●/○ | * | Power Steering Malfunction Steering Power Low Visit Your Dealer | Caution |
| ●/○ | * | Steering Power Low Visit Your Dealer | Caution | ||
| ○ | * | Power Steering Malfunction Visit Your Dealer | Caution | ||
| Electric parking brake system | ● | * | Release Parking Brake | Caution | |
| ● | ○ | Vehicle May Roll Shift to P | Caution | ||
| Vehicle stability control system | ○ | ○ | Brake Hold Fault Depress Brake to Deactivate Visit Your Dealer | Caution | |
| ● | ○ | Brake Hold Warning Depress Brake on Slope | Caution | ||
| Wiper and washer system | ○ | ○ | Wiper System Malfunction Visit Your Dealer | Caution | |
| Electric parking brake system | ● | ○ | EPB Activation Stopped Incompletely | Caution | |
| Smart access system with push-button start | - | * | Key Not Detected Check Key Location | Caution | |
| Electric parking brake system | - | * | Release Parking Brake while Depressing Brake | Caution | |
| Drive start control system | ● | ○ | Release Accelerator | Caution | |
| 8 | Lane control system | -/○ | -/* | LTA Hold Steering Wheel | Caution |
| ○ | - | LTA Steering Assist Unavailable Hold Steering Wheel | Caution | ||
| Electric parking brake system | ○ | * | Parking Brake Overheated Parking Brake Unavailable | Caution | |
| 9 | SFI system | ○ | - | Check Engine Visit Your Dealer | Caution |
| ○ | - | Check Engine Reduced Engine Power Visit Your Dealer | Caution | ||
| ○ | - | Reduced Engine Power Visit Your Dealer | Caution | ||
| ○ | - | Engine Maintenance Required Visit Your Dealer | Caution | ||
| Airbag system | ○ | ○ | SRS Airbag System Malfunction Visit Your Dealer | Caution | |
| Vehicle stability control system | - | ○ | Antilock Brake System Malfunction Visit Your Dealer | Caution | |
| SFI system | ○ | - | Engine Coolant Temp High Stop in a Safe Place See Owner's Manual | Caution | |
| Charging system | - | - | Charging System Malfunction See Owner's Manual | Caution | |
| Dynamic radar cruise control system | ○ | ○ | Radar Cruise Control Unavailable See Owner's Manual | Caution | |
| ○ | ○ | Radar Cruise Control Unavailable | Caution | ||
| - | - | Radar Cruise Control Unavailable Depress Brake to Resume Driving | Caution | ||
| Smart access system with push-button start | ○ | * | Access System with Elec. Key Malfunction See Owner's Manual | Caution | |
| Blind spot monitor system | ○ | ○ | Blind Spot Monitor Unavailable | Caution | |
| Dynamic radar cruise control system | ○ | ○ | Cruise Control Malfunction Visit Your Dealer | Caution | |
| ○ | ○ | Cruise Control Fault Press Brake to Deactivate Visit Your Dealer | Caution | ||
| Lane control system | ○ | ○ | LTA Malfunction Visit Your Dealer | Caution | |
| Front camera system | - | - | Front Camera System Unavailable | Caution | |
| Lane control system | ○ | ○ | LTA Unavailable | Caution | |
| - | - | LTA Turned On Steering Assist Active | Advisory | ||
| - | - | LTA Turned On Steering Assist Inactive | Advisory | ||
| Front camera system | - | - | Front Camera Unavailable See Owner's Manual | Advisory | |
| 9 | Pre-collision system | ○ | ○ | Pre-Collision System Malfunction Visit Your Dealer | Caution |
| Blind spot monitor system | ○ | ○ | Blind Spot Monitor System Malfunction Visit Your Dealer | Caution | |
| (Engine oil pressure switch assembly) | ○ | * | Oil Pressure Low Stop in a Safe Place See Owner's Manual | Caution | |
| Automatic transaxle system | ○ | ○ | Transmission Fluid Temp High See Owner's Manual | Caution | |
| Dynamic torque control AWD system | ○ | ○ | AWD System Malfunction 2WD Mode Engaged Visit Your Dealer | Caution | |
| Electric parking brake system | ○ | ○ | Parking Brake Unavailable | Caution | |
| ○ | ○ | Electronic Parking Brake Malfunction Visit Your Dealer | Caution | ||
| Dynamic radar cruise control system | - | - | Radar Cruise Active Please Pay Attention to Other Vehicles | Caution | |
| Lane control system | - | - | LTA Unavailable Below Approx 50 km/h | Advisory | |
| - | - | LTA Unavailable Below Approx 32 MPH | Advisory | ||
| - | - | LTA Unavailable at Current Speed | Advisory | ||
| 10 | Dynamic radar cruise control system | - | - | Dynamic radar cruise control indicator | - |
| Power steering system | ○ | * | Engine Stopped Steering Power Low | Caution | |
| Smart access system with push-button start | ●/- | * | Turn Off Vehicle | Caution | |
| Lane control system | - | * | Would You Like to Take a Break? | Advisory | |
| - | * | Please Take a Break | Advisory | ||
| Front camera system | - | - | Vehicle Ahead Moving | Advisory | |
| Pre-collision system | |||||
| Smart access system with push-button start | - | - | Key Left inside Vehicle | Caution | |
| Lighting system | ● | * | Turn Lights Off | Caution | |
| Sliding roof system | ● | ○ | Moon Roof Open | Caution | |
| Panoramic moon roof system | |||||
| Power window control system | ● | ○ | Window Open | Caution | |
| Power window control system | ● | ○ | Window / Moon Roof Open | Caution | |
| Panoramic moon roof system | |||||
| Sliding roof system | |||||
| Smart access system with push-button start | - | * | Depress Brake and Then Touch Key to Engine Switch | Caution | |
| - | -/* | Depress Brake and Then Start Engine | Caution | ||
| 11 | Steering lock system | ● | * | Steering Wheel Lock Press Engine Switch while Turning Wheel | Caution |
| Vehicle stability control system | ○ | ○ | Brake Hold Malfunction Visit Your Dealer | Caution | |
| ○ | ○ | Brake Hold Less Effective during Icy Conditions | Caution | ||
| - | * | Brake Hold Active Depress Brake and Switch to Deactivate | Caution | ||
| - | * | Brake Hold Unavailable Driver Door Open | Caution | ||
| - | * | Brake Hold Unavailable Driver Seat Belt Unbuckled | Caution | ||
| - | * | Brake Hold Unavailable Hood or Trunk Open | Caution | ||
| - | * | Depress Brake to Maintain Brake Hold | Caution | ||
| - | * | Close Driver Door to Maintain Brake Hold | Caution | ||
| - | * | Fasten Driver Seat Belt to Maintain Brake Hold | Caution | ||
| Electric parking brake system | - | * | Parking Brake Activated Release before Driving | Caution | |
| Vehicle stability control system | - | * | Brake Hold Unavailable | Caution | |
| - | ○ | Brake Hold Deactivated | Caution | ||
| - | ○ | Brake Hold Deactivated Parking Brake Automatically Applied | Caution | ||
| Dynamic torque control AWD system | ● | ○ | AWD System Overheated 2WD Mode Engaged | Caution | |
| ● | ○ | AWD System Overheated Switching to 2WD Mode | Caution | ||
| Drive start control system | ○ | ○ | Drive-Start Control Malfunction Visit Your Dealer | Caution | |
| Brake override system | ○ | ○ | Brake Override Malfunction Visit Your Dealer | Caution | |
| Intelligent clearance sonar system | ● | ○ | Parking Support Brake Malfunction Visit Your Dealer | Caution | |
| ● | - | Parking Support Brake Unavailable | Caution | ||
| ● | - | Parking Support Brake Unavailable Remove the Dirt of Rear Camera | Caution | ||
| 12 | Smart access system with push-button start | - | * | Key Battery Low | Caution |
| (Engine oil level sensor) | - | - | Engine Oil Level Low Add or Replace | Advisory | |
| Automatic high beam system | ○ | ○ | Headlight System Malfunction Visit Your Dealer | Caution | |
| Automatic headlight beam level control system | |||||
| AFS (Adaptive front-lighting system) | |||||
| Lighting system | |||||
| Intelligent clearance sonar system | ○ | ○ | ICS Malfunction Visit Your Dealer | Caution | |
| Brake override system | ● | - | Accelerator and Brake Pedals Pressed Simultaneously | Advisory | |
| Tire pressure warning system | - | - | Tire pressure indicator (image display) | Advisory | |
| 13 | (Windshield washer fluid warning) | - | - | Windshield Washer Fluid Low | Advisory |
| (Fuel level warning) | - | - | Fuel Low | Advisory | |
| (Ice warning) | - | ○ | Roads May Be Icy Drive with Care | Advisory | |
| Vehicle stability control system | - | - | Traction Control Turned Off | Caution | |
| (Oil maintenance) | - | - | Oil Maintenance Required Soon | Advisory | |
| (Scheduled maintenance) | - | - | Maintenance Required Soon | Advisory | |
| (Oil maintenance) | - | - | Oil Maintenance Required Visit Your Dealer | Advisory | |
| (Scheduled maintenance) | - | - | Maintenance Required Visit Your Dealer | Advisory | |
| Automatic high beam system | - | - | To Activate Auto High Beam, Switch Headlights to High Beam | Advisory | |
| Smart access system with push-button start | - | - | A New Key has been Registered Contact Your Dealer for Details | Caution | |
| - | - | Depress Brake and Then Start Engine | Caution | ||
| Pre-collision system | - | - | VSC Turned Off Pre-Collision Brake System Unavailable | Advisory | |
| - | - | Pre-Collision System Unavailable | Advisory | ||
| Intelligent clearance sonar system | ● | - | ICS Unavailable | Advisory | |
| Air conditioning system | ● | - | High Power Consumption Partial Limit On AC/Heater Operation | Advisory | |
| Pre-collision system | - | - | Pre-Collision System Unavailable | Advisory | |
| - | - | Pre-Collision System Unavailable Clean Sensor | Advisory | ||
| - | - | Pre-Collision System Off | Advisory | ||
| Electric parking brake system | - | ○ | Automatic Mode On Shift Operation Sets or Releases Parking Brake | Advisory | |
| - | ○ | Automatic Mode Off | Advisory | ||
| (Each door open (vehicle stopped, engine switch off)) | - | - | Each door open (vehicle stopped, engine switch off) | Caution | |
| Intelligent clearance sonar system | - | - | Clearance sonar temporary mute operation guide (image display) | Caution |
- *: An exclusive buzzer sounds depending on condition
- *1: Buzzers that are linked with the master warning light
System Diagram
SYSTEM DIAGRAM ...
Customize Parameters
CUSTOMIZE PARAMETERS CUSTOMIZE METER / GAUGE SYSTEM (a) Customizing with the Techstream (1) Connect the Techstream to the DLC3. (2) Turn the engine switch on (IG). (3) Turn the Techstream on. (4) Ente ...
Other materials:
Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual > Vehicle Stability Control System: Steering Angle Sensor Module Component Internal Failure (C052696)
DESCRIPTION The skid control ECU (brake actuator assembly) outputs this DTC when it receives an internal malfunction signal from the steering angle sensor. DTC No. Detection Item DTC Detection Condition Trouble Area C052696 Steering Angle Sensor Module Component Internal Failure Wit ...
Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual > Sfi System: Control Module Performance Bank 2 Component Internal Failure (P060596,P060796)
MONITOR DESCRIPTION The ECM continuously monitors its internal processors (CPUs) and heated oxygen sensor transistors. This self-check ensures that the ECM is functioning properly. DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory Note P060596 Control Module ...
Lexus RX (RX 350L, RX450h) 2016-{YEAR} Owners Manual
- For your information
- Pictorial index
- For safety and security
- Instrument cluster
- Operation of each component
- Driving
- Lexus Display Audio system
- Interior features
- Maintenance and care
- When trouble arises
- Vehicle specifications
- For owners
Lexus RX (RX 350L, RX450h) 2016-{YEAR} Repair Manual
0.0177
