Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: Parts Location
PARTS LOCATION

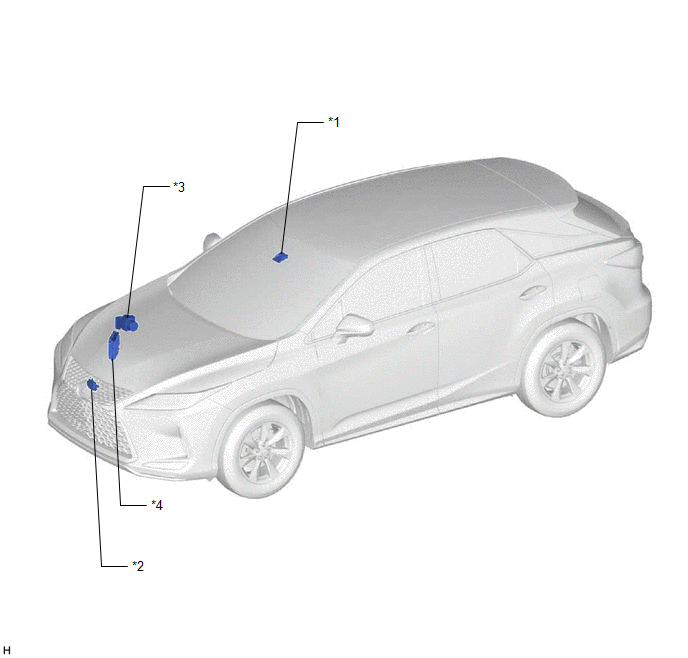

ILLUSTRATION
| *1 | FORWARD RECOGNITION CAMERA | *2 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *3 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU | *4 | ECM |
ILLUSTRATION
| *A | w/o VDIM | *B | w/ VDIM |
| *1 | AIRBAG SENSOR ASSEMBLY - YAW RATE SENSOR | *2 | YAW RATE SENSOR ASSEMBLY |
| *3 | SKID CONTROL BUZZER ASSEMBLY | *4 | STOP LIGHT SWITCH ASSEMBLY |
| *5 | DLC3 | - | - |
ILLUSTRATION
| *1 | STEERING SENSOR | *2 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY -ECU IG1 NO. 2 FUSE |
