Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: Components
COMPONENTS
ILLUSTRATION
| *1 | FRONT INNER SEAT TRACK BRACKET COVER | *2 | FRONT OUTER SEAT TRACK BRACKET COVER |
| *3 | FRONT SEAT ASSEMBLY | *4 | FRONT SEAT HEADREST ASSEMBLY |
| *5 | REAR INNER SEAT TRACK BRACKET COVER | *6 | REAR OUTER SEAT TRACK BRACKET COVER |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | for Driver Side | - | - |
| *1 | SEAT POSITION AIRBAG SENSOR | *2 | SEAT SLIDE POSITION SENSOR PROTECTOR |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | for Front Passenger Side | - | - |
| *1 | OCCUPANT DETECTION ECU | - | - |
ILLUSTRATION
| *A | w/ Seat Heater System | - | - |
| *1 | SEAT HEATER CONTROL SUB-ASSEMBLY | - | - |
ILLUSTRATION
| *A | for Driver Side | *B | for Front Passenger Side |
| *1 | FRONT SEAT INNER BELT ASSEMBLY LH | *2 | FRONT SEAT INNER BELT ASSEMBLY RH |
| *3 | FRONT SEAT BELT ANCHOR PLATE | - | - |
.png) | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |
ILLUSTRATION
| *A | for Standard Seat Type | *B | for Sports Seat Type |
| *1 | FRONT SEAT CUSHION SHIELD | *2 | FRONT SEAT INNER CUSHION SHIELD |
| *3 | INNER NO. 1 FRONT SEAT CUSHION SHIELD | - | - |

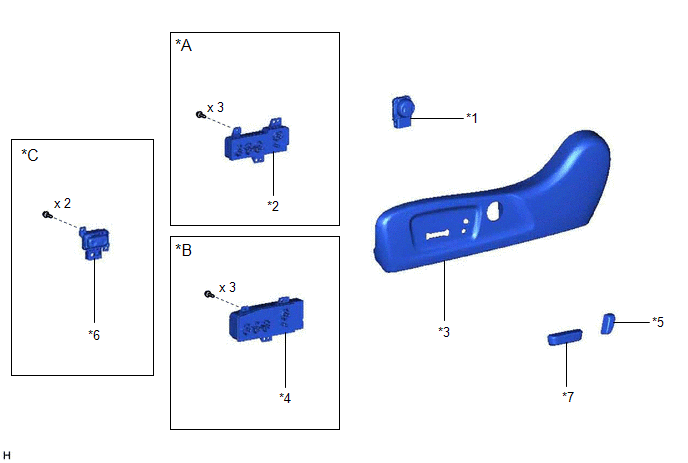

ILLUSTRATION
| *A | w/o Seat Position Memory System | *B | w/ Seat Position Memory System |
| *C | w/ Variable Seat Cushion System | - | - |
| *1 | FRONT LUMBAR POWER SEAT SWITCH | *2 | FRONT POWER SEAT SWITCH |
| *3 | FRONT SEAT CUSHION SHIELD | *4 | POSITION CONTROL ECU AND SWITCH ASSEMBLY LH |
| *5 | RECLINING POWER SEAT SWITCH KNOB | *6 | SEAT VARIABLE CUSHION SWITCH |
| *7 | SLIDE AND VERTICAL POWER SEAT SWITCH KNOB | - | - |
ILLUSTRATION
| *1 | SEPARATE TYPE FRONT SEATBACK ASSEMBLY | *2 | SEPARATE TYPE FRONT SEAT CUSHION ASSEMBLY |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | for Sports Seat Type | *B | for Standard Seat Type |
| *1 | FRONT SEAT HEADREST SUPPORT | *2 | FRONT SEATBACK BOARD SUB-ASSEMBLY |
| *3 | FRONT SEATBACK PAD WITH COVER | *4 | SEATBACK FELT |
| *5 | SEPARATE TYPE FRONT SEATBACK COVER WITH PAD | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | for Standard Seat Type | *B | w/ Seat Heater System |
| *1 | FRONT SEATBACK HEATER ASSEMBLY | *2 | SEAT COVER WIRE |
| *3 | SEPARATE TYPE FRONT SEATBACK COVER | *4 | SEPARATE TYPE FRONT SEATBACK PAD |
| *5 | HOG RING | *6 | TAG PIN |
| ● | Non-reusable part | - | - |
ILLUSTRATION
| *1 | FRONT SEAT AIRBAG ASSEMBLY | *2 | SEPARATE TYPE FRONT SEATBACK SPRING ASSEMBLY |
| | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
ILLUSTRATION
| *A | w/o Variable Seat Cushion System | *B | w/ Variable Seat Cushion System |
| *1 | FRONT SEAT NO. 2 WIRE | *2 | FRONT SEATBACK EDGE PROTECTOR |
| *3 | FRONT SEATBACK HOOK | *4 | LUMBAR SUPPORT ADJUSTER ASSEMBLY |
| *5 | FRONT SEATBACK FRAME SUB-ASSEMBLY | - | - |
ILLUSTRATION
| *A | w/ Climate Control Seat System | - | - |
| *1 | SEATBACK CLIMATE CONTROL BLOWER | - | - |
ILLUSTRATION
| *A | for Sports Seat Type | *B | for Standard Seat Type |
| *C | w/ Variable Seat Cushion System | - | - |
| *1 | FRONT SEAT CUSHION PAD WITH COVER | *2 | SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD |
| *3 | SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY | *4 | HOG RING |
| ● | Non-reusable part | - | - |
ILLUSTRATION
| *A | for Standard Seat Type | *B | w/o Variable Seat Cushion System |
| *C | w/ Variable Seat Cushion System | *D | w/ Seat Heater System |
| *1 | FRONT SEAT CUSHION HEATER ASSEMBLY | *2 | SEAT COVER WIRE |
| *3 | SEPARATE TYPE FRONT SEAT CUSHION COVER | *4 | SEPARATE TYPE FRONT SEAT CUSHION PAD |
| *5 | HOG RING | *6 | TAG PIN |
| ● | Non-reusable part | - | - |
ILLUSTRATION
| *A | for Front Passenger Side | *B | w/ Variable Seat Cushion System |
| *1 | FRONT SEAT CUSHION AIRBAG ASSEMBLY RH | *2 | FRONT SEAT VERTICAL ADJUSTER ASSEMBLY |
| | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
ILLUSTRATION
| *A | w/ Climate Control Seat System | - | - |
| *1 | SEAT CUSHION CLIMATE CONTROL BLOWER ASSEMBLY | *2 | SEAT CUSHION CLIMATE CONTROL BRACKET |
| *3 | SEAT CUSHION CLIMATE CONTROL DUCT | - | - |
ILLUSTRATION
| *A | for Front Passenger Side | - | - |
| *1 | FRONT SEAT CUSHION EDGE PROTECTOR LH | *2 | FRONT SEAT CUSHION EDGE PROTECTOR RH |
| *3 | FRONT SEAT CUSHION SPRING SUB-ASSEMBLY | *4 | FRONT SEAT LOWER CUSHION SHIELD LH |
| *5 | FRONT SEAT LOWER CUSHION SHIELD RH | *6 | FRONT SEAT WIRE |
| *7 | FRONT SEAT WIRE RH | *8 | SEAT ADJUSTER COVER CAP |
| *9 | FRONT SEAT ADJUSTER ASSEMBLY | - | - |
Inspection
INSPECTION PROCEDURE 1. INSPECT FRONT SEAT ADJUSTER ASSEMBLY LH (a) Check the operation of the slide motor. (1) Check that the seat cushion moves smoothly when the battery is connected to the slide ...
