INSPECTION

PROCEDURE

1. INSPECT FRONT SEATBACK HEATER ASSEMBLY (for LH Side)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 - 2

Seat heater temperature 20 °C (68 °F)

1.89 to 2.27 Ω

If the result is not as specified, replace the front seatback heater assembly (for LH side).

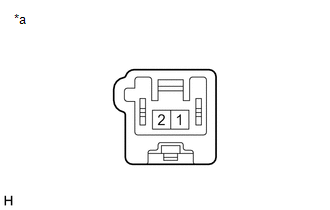

*a

Component without harness connected

(Front Seatback Heater Assembly (for LH Side))

2. INSPECT FRONT SEATBACK HEATER ASSEMBLY (for RH Side)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 - 2

Seat heater temperature 20 °C (68 °F)

1.89 to 2.27 Ω

If the result is not as specified, replace the front seatback heater assembly (for RH side).

*a

Component without harness connected

(Front Seatback Heater Assembly (for RH Side))

3. INSPECT FRONT SEATBACK HEATER (FRONT SEATBACK PAD WITH COVER LH)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 - 2

Seat heater temperature 23 °C (73 °F)

2.36 to 2.90 Ω

If the result is not as specified, replace the front seatback heater (front seatback pad with cover LH).

*a

Component without harness connected

Front Seatback Heater (Front Seatback Pad with Cover LH)

4. INSPECT FRONT SEATBACK HEATER (FRONT SEATBACK PAD WITH COVER RH)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 - 2

Seat heater temperature 23 °C (73 °F)

2.36 to 2.90 Ω

If the result is not as specified, replace the front seatback heater (front seatback pad with cover RH).

*a

Component without harness connected

Front Seatback Heater (Front Seatback Pad with Cover RH)
