Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual: Components
COMPONENTS
ILLUSTRATION
| *A | for 60/40 Split Seat Type RH Side | - | - |
| *1 | POWER SEAT SWITCH ASSEMBLY | *2 | REAR POWER SEAT SWITCH RH |
| *3 | RECLINING REMOTE CONTROL BEZEL RH | - | - |
ILLUSTRATION
| *A | for 60/40 Split Seat Type LH Side | - | - |
| *1 | POWER SEAT SWITCH ASSEMBLY | *2 | REAR POWER SEAT SWITCH LH |
| *3 | RECLINING REMOTE CONTROL BEZEL RH | - | - |

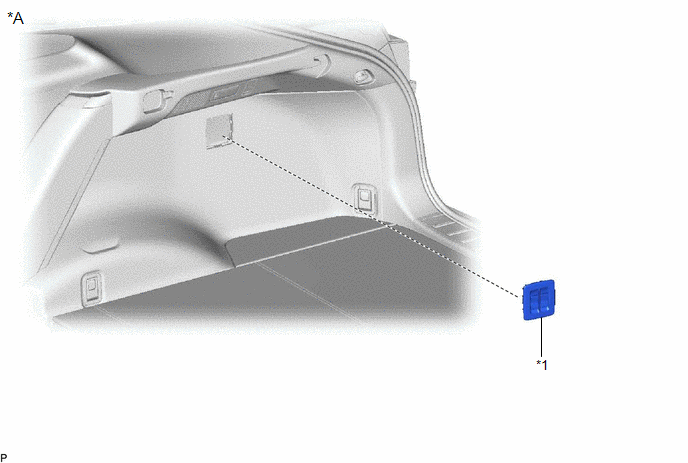

ILLUSTRATION
| *A | for Luggage Compartment | - | - |
| *1 | FOLD SEAT SWITCH ASSEMBLY | - | - |
Removal
REMOVAL PROCEDURE 1. REMOVE POWER SEAT SWITCH ASSEMBLY (for 60/40 Split Seat Type RH Side) (a) Using a moulding remover A, disengage the 2 claws as shown in the illustration. Remove in this Dir ...
Other materials:
Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual > Rear Door: Inspection
INSPECTION PROCEDURE 1. INSPECT REAR DOOR OUTSIDE HANDLE ASSEMBLY LH (a) Apply 6.0 V (4 dry cell batteries in series) to the rear door outside handle assembly LH and check that the light comes on. NOTICE: Do not apply more than 6.0 V. OK: Condition Specified Condition Battery positive ( ...
Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual > Exterior Panels / Trim: Front Door Outside Moulding
ComponentsCOMPONENTS ILLUSTRATION *1 FRONT DOOR OUTSIDE MOULDING SUB-ASSEMBLY *2 NO. 3 FRONT DOOR WEATHERSTRIP *3 HOLE PLUG - - InstallationINSTALLATION CAUTION / NOTICE / HINT HINT:
Use the same procedure for the RH side and LH side.
The following procedure is for the LH ...
