Lexus RX (RX 350L, RX450h) 2016-2025 Owners Manual: Front seats

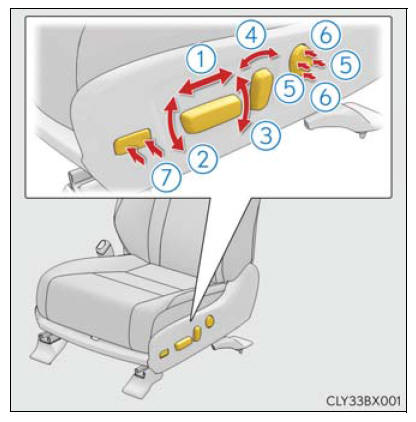

Adjustment procedure

  1. Seat position adjustment switch
  2. Seat cushion (front) angle adjustment switch
  3. Vertical height adjustment switch
  4. Seatback angle adjustment switch
  5. Lumbar support firmness adjustment switch
  6. Lumbar support height adjustment switch (if equipped)
  7. Seat cushion length adjustment switch (if equipped)

Lexus RX. Front seats

■ Power easy access system The driver's seat (on some models) and steering wheel move in accordance with power switch mode and the driver's seat belt condition.

WARNING

■ When adjusting the seat position

  • Take care when adjusting the seat position to ensure that other passengers are not injured by the moving seat.
  • Do not put your hands under the seat or near the moving parts to avoid injury.

    Fingers or hands may become jammed in the seat mechanism.

  • Make sure to leave enough space around the feet so they do not get stuck.

■ Seat adjustment To reduce the risk of sliding under the lap belt during a collision, do not recline the seat more than necessary.

If the seat is too reclined, the lap belt may slide past the hips and apply restraint forces directly to the abdomen, or your neck may contact the shoulder belt, increasing the risk of death or serious injury in the event of an accident.

Adjustments should not be made while driving as the seat may unexpectedly move and cause the driver to lose control of the vehicle.

    Adjusting the seats
    ...

    Rear seats
    ...
