REASSEMBLY
CAUTION / NOTICE / HINT
CAUTION:
Wear protective gloves. Sharp areas on the seat frame may injure your hands.
PROCEDURE
1. INSTALL REAR SEATBACK FRAME SUB-ASSEMBLY RH

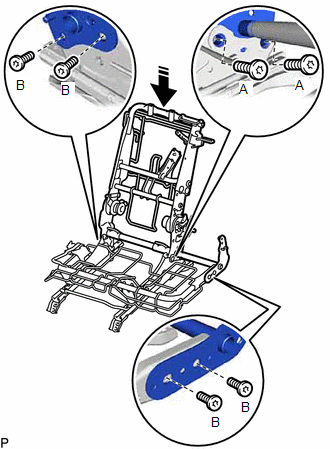

(a) Using a T40 "TORX" socket wrench, install the 4 bolts (B).
Install in this Direction |
Torque:
29 N·m {296 kgf·cm, 21 ft·lbf}
(b) Using a T55 "TORX" socket wrench, install the rear seatback frame sub-assembly to the rear seat cushion frame sub-assembly RH with the 2 bolts (A) as shown in the illustration
Torque:
64 N·m {653 kgf·cm, 47 ft·lbf}

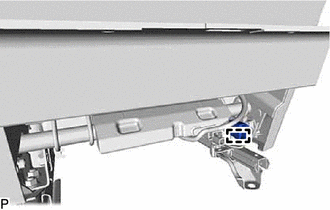

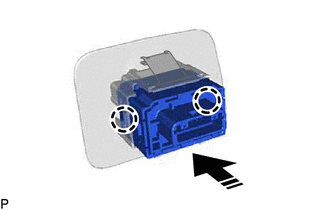

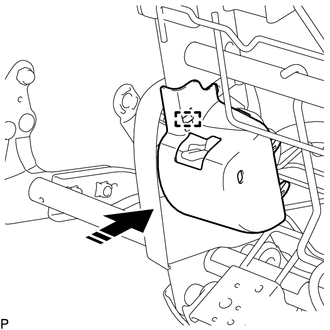

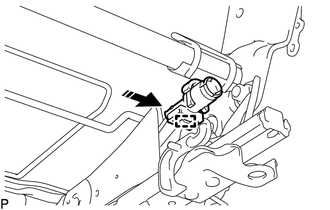

(c) Engage the clamp to install the joint case as shown in the illustration.
Install in this Direction |
2. INSTALL REAR SEAT LEG PLATE SUB-ASSEMBLY RH
(a) Install the rear seat leg plate sub-assembly RH with the nut. Torque: 7.5 N·m {76 kgf·cm, 66 in·lbf} | |
3. INSTALL REAR SEAT RECLINING CONTROL CABLE (for Manual Seat)

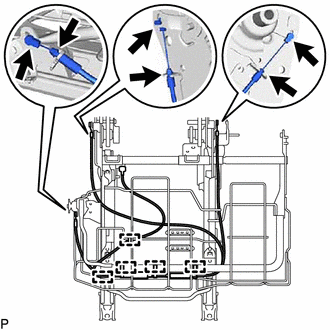

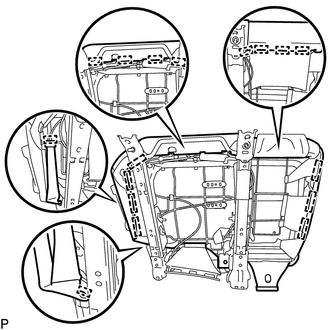

(a) Connect the 6 cable clamps. | |
(b) Engage the 5 clamps to install the No. 2 rear seat reclining control cable.
4. INSTALL RECLINING ADJUSTER INSIDE COVER LH (for Manual Seat)

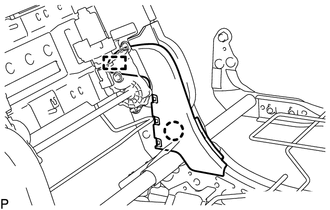

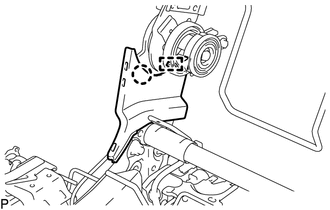

(a) Engage the guide and claw to install the reclining adjuster inside cover LH. | |
5. INSTALL UPPER NO. 1 REAR SEATBACK MOULDING (for Power Seat)
(a) Engage the guide and install the upper No. 1 rear seatback moulding as indicated by the arrows, in the order shown in the illustration.
Install in this Direction (1) | |
Install in this Direction (2) |
6. INSTALL UPPER NO. 2 REAR SEATBACK MOULDING (for Power Seat)

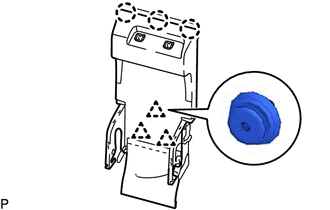

(a) Engage the guide and 7 claws as indicated by the arrows, in the order shown in the illustration to install the upper No. 2 rear seatback moulding.
Install in this Direction (1) | |
Install in this Direction (2) |
7. INSTALL RECLINING ADJUSTER INSIDE COVER LH (for Power Seat)
(a) Engage the guide and claw to install the reclining adjuster inside cover LH. | |
8. INSTALL RECLINING ADJUSTER INSIDE COVER LH (for Power Seat)
(a) Engage the guide and 3 claws to install the reclining adjuster inside cover LH as shown in the illustration.
Install in this Direction |
9. INSTALL REAR SEAT INNER RECLINING COVER RH

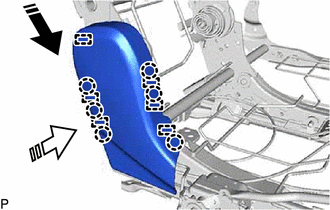

(a) Engage the 6 guides and 4 claws as indicated by the arrows, in the order shown in the illustration to install the rear seat inner reclining cover RH.
Install in this Direction (1) | |
Install in this Direction (2) |
10. INSTALL RECLINING ADJUSTER INSIDE COVER RH
(a) Engage the guide and claw to install the reclining adjuster inside cover RH. | |
11. INSTALL REAR SEATBACK MOULDING RH

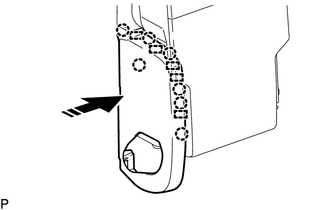

(a) Engage the 6 guides and 6 claws as indicated by the arrow, in the order shown in the illustration to install the rear seatback moulding RH.
Install in this Direction (1) | |
Install in this Direction (2) |
12. INSTALL RECLINING ADJUSTER INSIDE COVER LH
(a) Engage the 3 claws and guide to install the reclining adjuster inside cover LH. | |

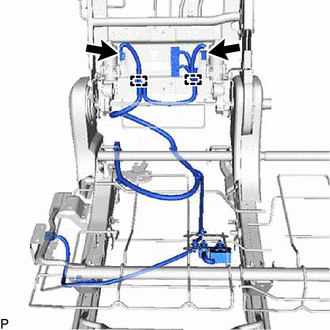

13. INSTALL REAR SEAT WIRE RH (for Power Seat)

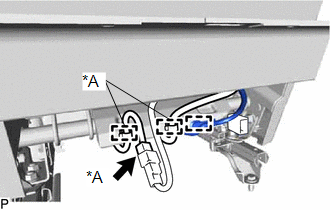

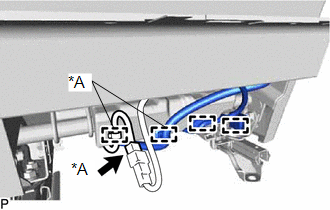

(a) Engage the 2 clamps and install the rear seat wire RH. | |

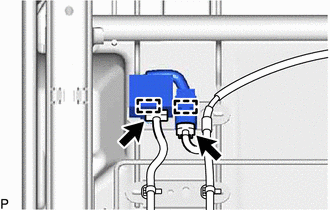

(b) Connect the 2 connectors.

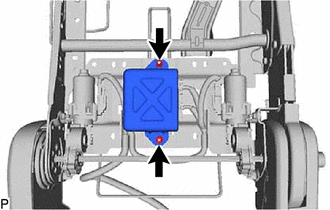

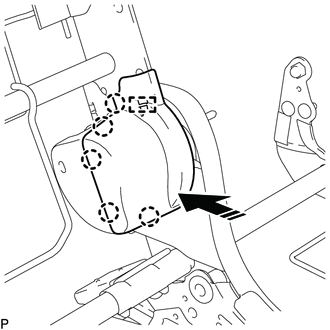

14. INSTALL FOLD SEAT CONTROL ECU (for Power Seat)

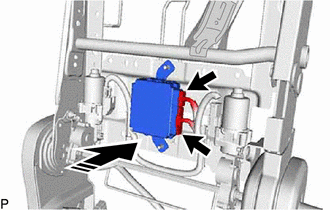

(a) Connect the 2 connectors and install the fold seat control ECU as shown in the illustration.
Install in this Direction |
15. INSTALL REAR SEATBACK PROTECTOR (for Power Seat)

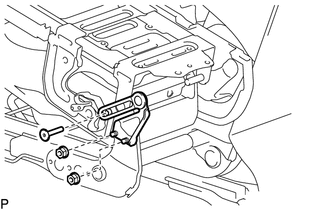

(a) Install the rear seatback protector with the 2 nuts. Torque: 5.5 N·m {56 kgf·cm, 49 in·lbf} | |
16. INSTALL NO. 2 RECLINING LINK COVER RH (for Manual Seat)

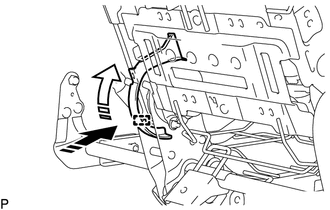

(a) Engage the guide to install the No. 2 reclining link cover RH as shown in the illustration.
Install in this Direction |

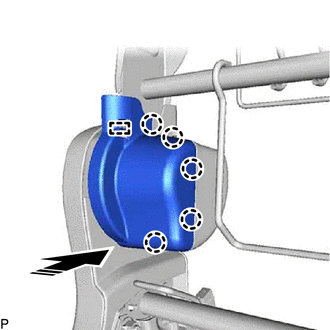

17. INSTALL NO. 1 RECLINING LINK COVER RH (for Manual Seat)

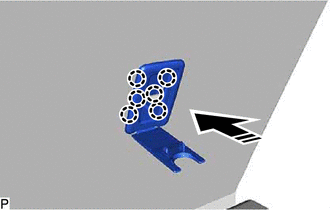

(a) Engage the guide and 5 claws to install the No. 1 reclining link cover RH as shown in the illustration.
Install in this Direction |
18. INSTALL NO. 2 RECLINING LINK COVER LH (for Manual Seat)
(a) Engage the guide to install the No. 2 reclining link cover LH as shown in the illustration.
Install in this Direction |
19. INSTALL NO. 1 RECLINING LINK COVER LH (for Manual Seat)
(a) Engage the guide and 5 claws to install the No. 1 reclining link cover LH as shown in the illustration.
Install in this Direction |
20. INSTALL REAR SEAT AIRBAG ASSEMBLY RH
Click here
21. INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY
Click here
22. INSTALL SEATBACK FELT RH (for TMK Made)
(a) Install a new seatback felt RH. | |
23. INSTALL SEAT HEATER ASSEMBLY (w/ Seat Heater System)
Click here
24. INSTALL SEAT COVER WIRE

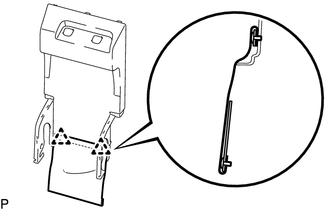

(a) Install the 5 seat cover wires.
HINT:
Click here

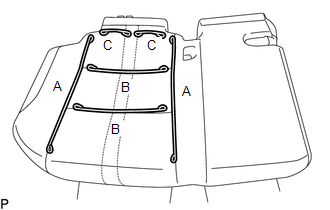

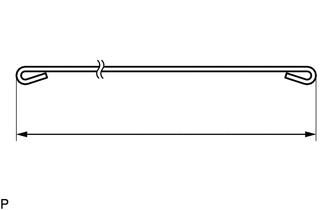

Length:

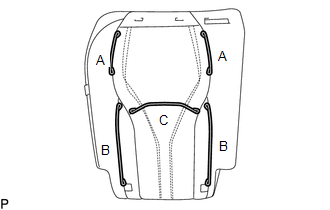

A | 130 mm (5.12 in.) |
B | 330 mm (1.0824 ft.) |
C | Available as supplied parts. |
HINT:
The dimension shown in the illustration is the length.

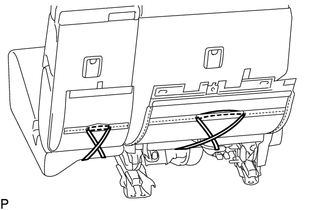

25. INSTALL SEPARATE TYPE REAR SEATBACK COVER
HINT:
When installing a separate type rear seatback cover, refer to Precaution in order to prevent wrinkles from forming.
Click here

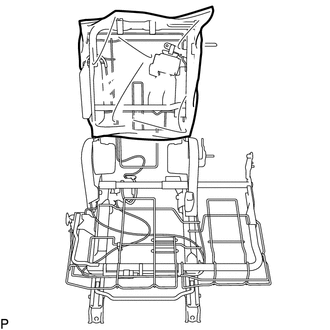

(a) for Manual Seat: (1) Using hog ring pliers, install the separate type rear seatback cover to the separate type rear seatback pad with 11 new hog rings in the order shown in the illustration. NOTICE:
| |
(b) for Power Seat:
(1) Using hog ring pliers, install the separate type rear seatback cover to the separate type rear seatback pad with 11 new hog rings in the order shown in the illustration. NOTICE:
| |

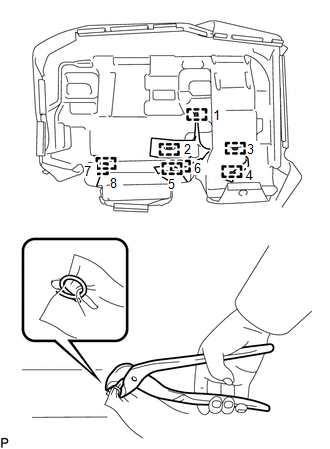

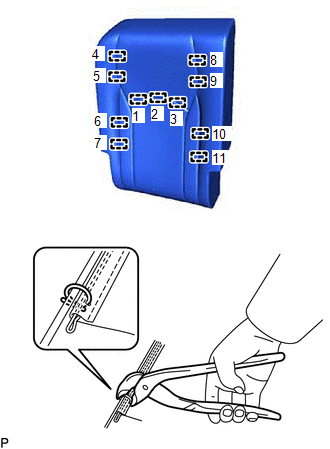

(2) Using hog ring pliers, install a new hog ring. NOTICE:
| |
26. INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD

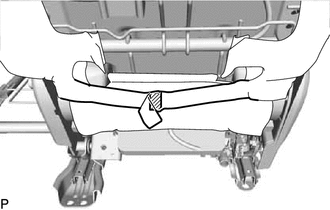

(a) Temporarily install the separate type rear seatback cover with pad to the rear seatback frame sub-assembly.

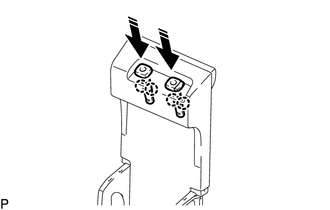

(b) Install the 2 rear seatback cover brackets with the nut. Torque: 5.5 N·m {56 kgf·cm, 49 in·lbf} NOTICE:
| |
(c) for Manual Seat:

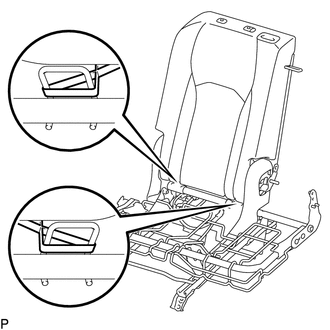

(1) Engage the 2 hooks. | |
(2) Engage the fastener.
Fastener |

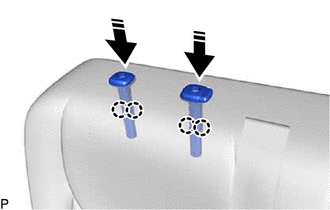

(d) Engage the 4 claws to install the 2 rear No. 1 seat headrest supports as shown in the illustration.
Install in this Direction |
(e) Engage each hook to install the separate type rear seatback cover with pad. | |
27. INSTALL REAR SEAT SHOULDER BELT COVER
(a) Pass rear center seat outer belt assembly through the rear seat shoulder belt cover and engage the 2 guides and 2 claws to install it. | |
28. INSTALL SEAT BELT ANCHOR COVER CAP

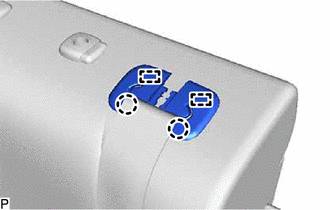

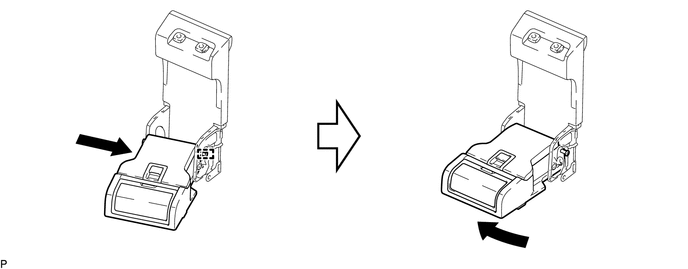

(a) Engage the 2 guides to install the seat belt anchor cap as shown in the illustration.
Install in this Direction |
29. CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
Click here
30. INSTALL REAR SEATBACK BOARD CARPET ASSEMBLY RH
(a) Engage the 3 guides as shown in the illustration. | |
(b) Engage the 2 guides and 4 clips as shown in the illustration.
Install in this Direction |

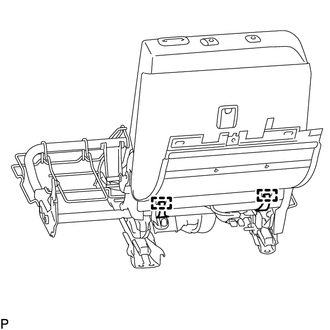

(c) for TMK Made: (1) Engage the 2 hooks to install the rear seatback board carpet assembly RH. | |
(d) for TMMC Made: (1) Connect the 2 rubber bands to install the rear seatback board carpet assembly RH. | |
31. INSTALL SEAT CUSHION FELT RH (for TMK Made)
(a) Install a new seat cushion felt RH.
32. INSTALL REAR SEATBACK COVER RH

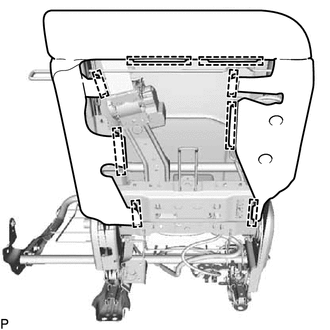

(a) Engage the 6 claws to install the rear seatback cover RH as shown in the illustration.
Install in this Direction |
(b) Engage the 2 claws as shown in the illustration. | |

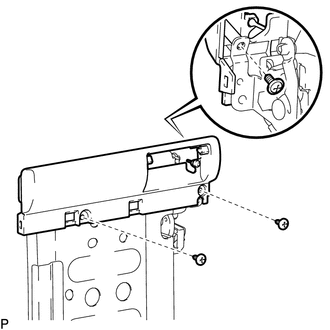

33. INSTALL REAR SEATBACK LOCK ASSEMBLY RH

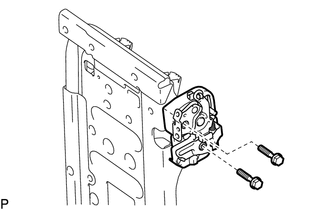

(a) Install the rear seatback lock assembly RH with the 2 bolts. Torque: 13.5 N·m {138 kgf·cm, 10 ft·lbf} | |
34. INSTALL NO. 2 CENTER SEATBACK COVER

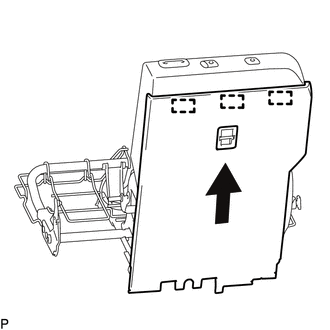

(a) Install the No. 2 center seatback cover with the 3 screws. | |
35. INSTALL REAR SEATBACK LOCK LEVER

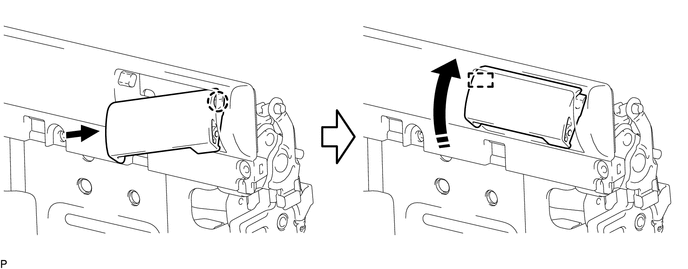

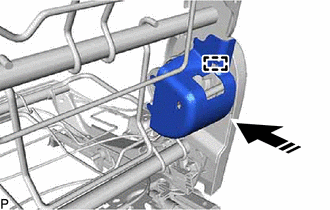

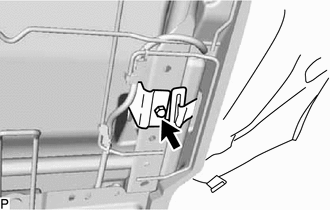

(a) Engage the guide and claw to install the rear seatback lock lever as shown in the illustration.
Install in this Direction | - | - |

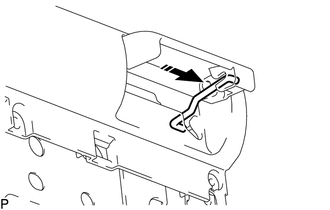

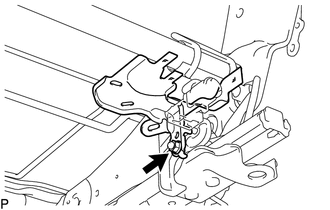

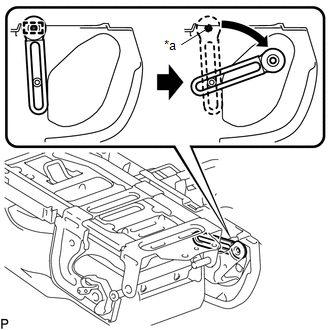

(b) Install the fold seatback wire as shown in the illustration.
Install in this Direction |
(c) Install the fold seatback wire and engage the retainer as shown in the illustration to secure it. | |
36. INSTALL REAR SEAT CENTER ARMREST COVER SUB-ASSEMBLY
(a) Engage the 2 clips to install the rear seat center armrest cover sub-assembly as shown in the illustration. | |
37. INSTALL NO. 1 SEATBACK COVER
(a) Engage the 3 claws and 3 clips to install the No. 1 seatback cover. | |
(b) Engage the 4 claws to install the 2 rear seat headrest support assemblies as shown in the illustration.
Install in this Direction |
38. INSTALL NO. 2 REAR SEAT CENTER ARMREST BOX (w/ Console Box Lid)

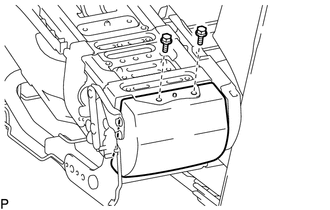

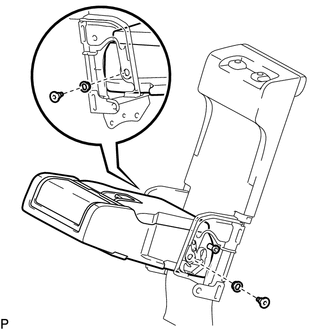

(a) Install the No. 2 rear seat center armrest box with the 5 screws. | |
39. INSTALL REAR SEAT CENTER ARMREST DOOR SUB-ASSEMBLY (w/ Console Box Lid)
(a) Install the rear seat center armrest door sub-assembly with the 2 screws. | |
(b) Engage the 2 fasteners.
Fastener |

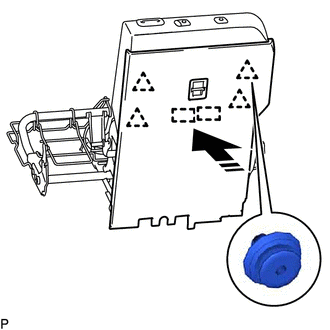

40. INSTALL CUP HOLDER ASSEMBLY

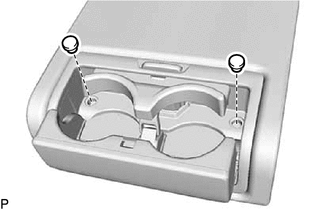

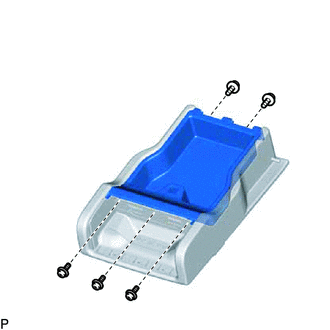

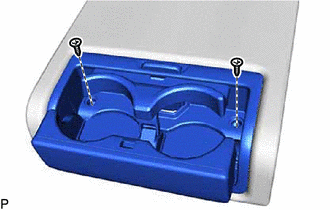

(a) Install the cup holder assembly with the 2 screws. | |
41. INSTALL REAR SEAT CENTER ARMREST COVER
(a) Install the 2 rear seat center armrest covers. | |
42. INSTALL REAR SEAT CENTER ARMREST ASSEMBLY
(a) Engage the guide as shown in the illustration.
(b) Using a T45 "TORX" socket wrench, install the rear seat center armrest assembly with the No. 2 rear seat reclining spacer and 2 bolts. Torque: 21 N·m {214 kgf·cm, 15 ft·lbf} | |

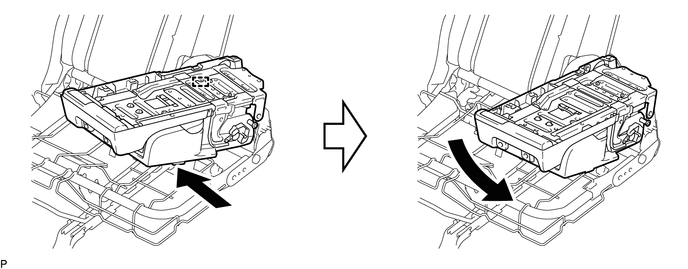

(c) Fold the rear seat center armrest assembly RH as shown in the illustration.

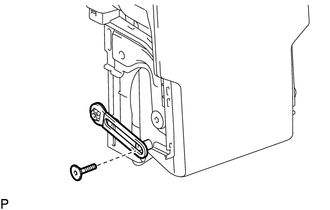

(d) Using a T45 "TORX" socket wrench, install the bolt and rear seatback hinge. Torque: 13.5 N·m {138 kgf·cm, 10 ft·lbf} | |
43. INSTALL CENTER ARMREST HINGE COVER RH

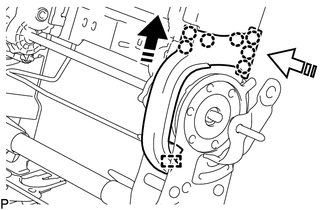

(a) Engage the 5 guides and 7 claws to install the center armrest hinge cover RH as shown in the illustration.
Install in this Direction |
44. INSTALL ARMREST ASSEMBLY
(a) Install the rear seat center armrest plate as shown in the illustration.

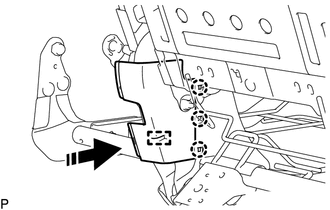

Install in this Direction |

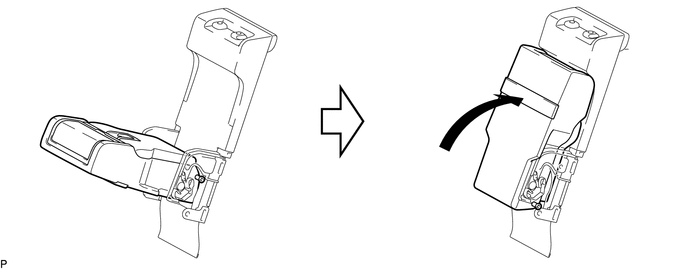

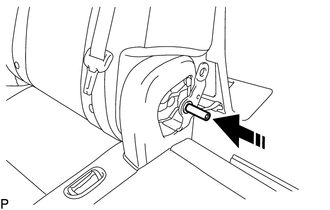

(b) Engage the pin and temporarily install the armrest assembly as indicated by the arrows, in the order shown in the illustration.
(c) Engage the rear seatback hinge to the pin of the center armrest hinge cover RH as shown in the illustration. NOTICE: If the rear seatback hinge is not engaged to the pin of the center armrest hinge cover RH, the armrest assembly cannot be installed as it will interfere with the rear seatback frame sub-assembly RH. |
|

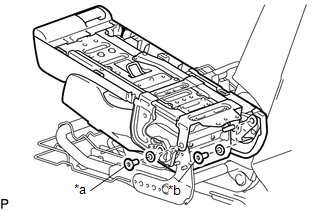

(d) Using a T45 "TORX" socket wrench, install the armrest assembly with the 2 rear seat reclining spacers, bolt (A) and bolt (B). Torque: Bolt (A) : 21 N·m {214 kgf·cm, 15 ft·lbf} Bolt (B) : 13.5 N·m {138 kgf·cm, 10 ft·lbf} |
|
(e) Using a T30 "TORX" socket wrench, install the bolt. Torque: 13.5 N·m {138 kgf·cm, 10 ft·lbf} | |
(f) Install the rear seatback center hinge sub-assembly with the 2 nuts.
Torque:
21 N·m {214 kgf·cm, 15 ft·lbf}

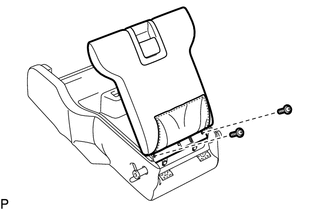

45. INSTALL NO. 1 SEAT ARMREST ASSEMBLY
(a) Engage the 2 clips. | |
(b) Install the No. 1 seat armrest assembly with the 2 bolts. Torque: 21 N·m {214 kgf·cm, 15 ft·lbf} | |
46. INSTALL CENTER ARMREST HINGE COVER LH
(a) Engage the 5 guides and 7 claws to install the center armrest hinge cover LH as shown in the illustration.
Install in this Direction |
47. INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY

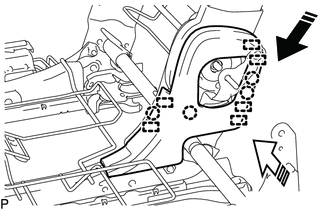

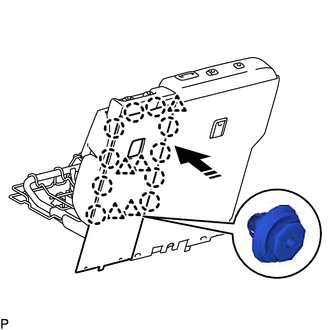

(a) Engage the 5 clips and 10 claws to install the rear seatback board sub-assembly as shown in the illustration.
Install in this Direction |
48. INSTALL REAR SEATBACK COVER

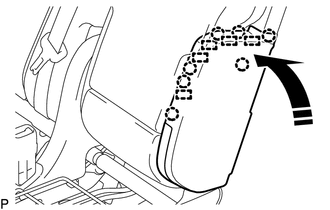

(a) Engage the 6 claws to install the rear seatback cover as shown in the illustration.
Install in this Direction |
(b) Engage the 2 claws as shown in the illustration. | |
49. INSTALL REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH
Click here
50. INSTALL SEAT HEATER ASSEMBLY (w/ Seat Heater System)
Click here

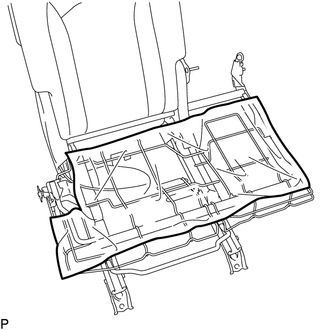

51. INSTALL SEAT COVER WIRE
(a) Install the 6 seat cover wires.
HINT:
Length:
A | 420 mm (1.3776 ft.) |
B | 240 mm (9.45 in.) |
C | 90 mm (3.54 in.) |
HINT:
The dimension shown in the illustration is the length.
52. INSTALL SEPARATE TYPE REAR SEAT CUSHION COVER
HINT:
When installing a separate type rear seat cushion cover, refer to Precaution in order to prevent wrinkles from forming.
Click here

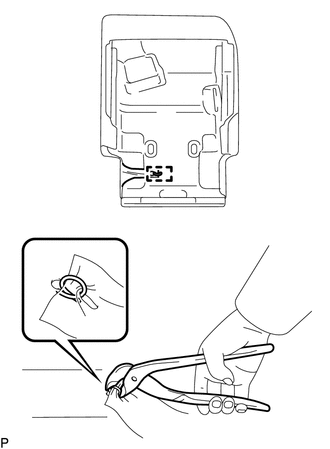

(a) Using hog ring pliers, install the separate type rear seat cushion cover to the separate type rear seat cushion pad with 20 new hog rings in the order shown in the illustration. NOTICE:
| |

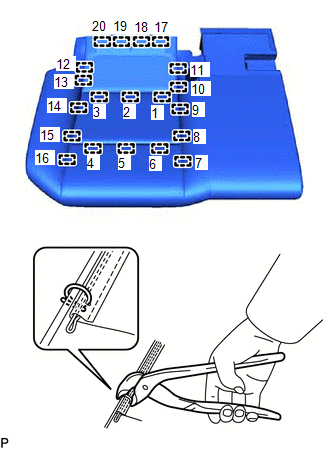

(b) Using hog ring pliers, install 8 new hog rings in the order shown in the illustration. NOTICE:
| |
53. INSTALL SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD

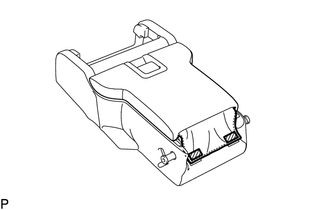

(a) Temporarily install the separate type rear cushion cover with pad to the rear seat cushion frame sub-assembly RH.
(b) Engage each hook to install the separate type rear seat cushion cover with pad. | |
(c) for Manual Seat: (1) Engage the clamp. (2) w/ Seat Heater System:
|
|
(d) for Power Seat: (1) w/ Seat Heater System:
(2) Engage the 2 clamps. |
|

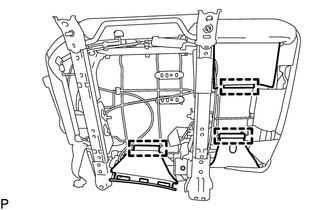

(e) Engage the 3 hooks. | |
(f) Connect the 2 rubber bands. | |
54. INSTALL CONNECTOR MALE HOUSING (for Manual Seat)
(a) w/o Seat Heater System:

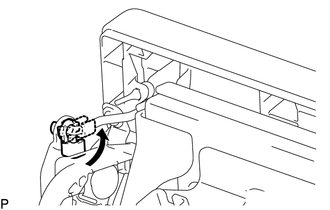

(1) Engage the clamp to install the connector male housing. | |

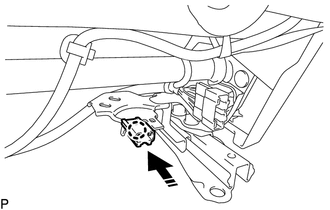

55. INSTALL CONNECTOR BRACKET

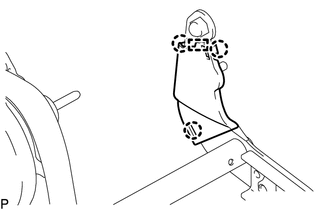

(a) Engage the claw as shown in the illustration to install the connector bracket.
Install in this Direction |
56. INSTALL SEAT HEATER CONTROL SUB-ASSEMBLY (w/ Seat Heater System)

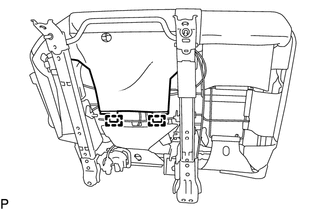

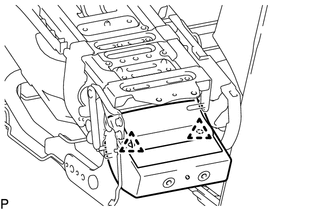

(a) Engage the 2 clamps to install the seat heater control sub-assembly. | |
(b) Connect the 2 connectors.
57. CONNECT SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD

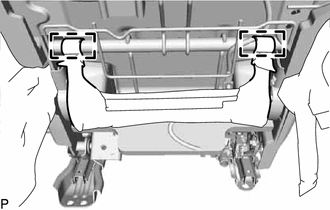

(a) Engage the 2 hooks to connect the separate type rear seat cushion cover with pad. | |
58. INSTALL NO. 1 RECLINING ADJUSTER RELEASE HANDLE RH (for Manual Seat)

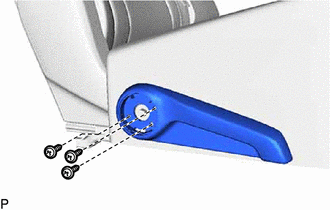

(a) Install the No. 1 reclining adjuster release handle RH with the 3 screws. | |
59. INSTALL REAR SEAT COVER CAP RH (for Manual Seat)

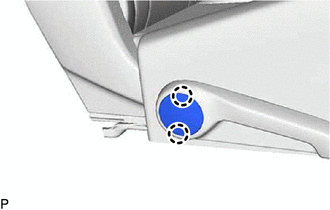

(a) Engage the 2 claws to install the rear seat cover cap RH. | |

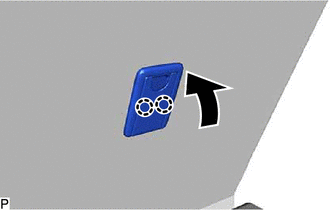

60. INSTALL REAR POWER SEAT SWITCH RH (for Power Seat)

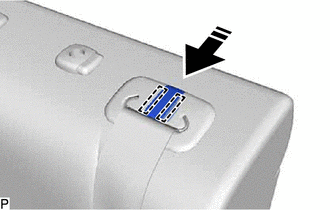

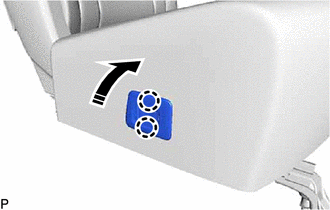

(a) Engage the 2 claws to install the rear power seat switch RH as shown in the illustration.
Install in this Direction |
61. INSTALL POWER SEAT SWITCH ASSEMBLY (for Power Seat)

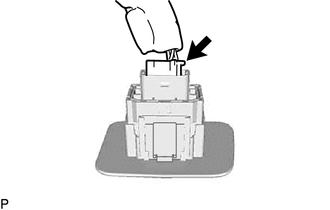

(a) Connect the connector. | |
(b) Engage the 2 claws to install the power seat switch assembly as shown in the illustration.
Install in this Direction |
