INSPECTION

PROCEDURE

1. INSPECT SEAT MEMORY SWITCH LH

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 - 8

M1 switch pressed

Below 100 Ω

M1 switch not pressed

1 MΩ or higher

1 - 6

M2 switch pressed

Below 100 Ω

M2 switch not pressed

1 MΩ or higher

1 - 3

M3 switch pressed

Below 100 Ω

M3 switch not pressed

1 MΩ or higher

1 - 2

SET switch pressed

Below 100 Ω

SET switch not pressed

1 MΩ or higher

If the result is not as specified, replace the seat memory switch LH.

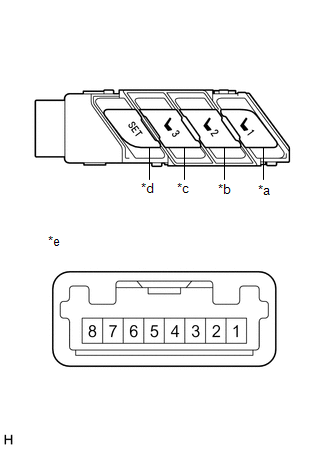

*a

M1 Switch

*b

M2 Switch

*c

M3 Switch

*d

SET Switch

*e

Component without harness connected

(Seat Memory Switch LH)
