Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual: Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during rear No. 1 seat inner belt assembly removal/installation are shown below.
Necessary Procedure After Parts Removed/Installed/Replaced| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Disconnect cable from negative battery terminal | Memorize steering angle neutral point | Lane Control System | |
| Pre-collision system | |||
| Intelligent clearance sonar system*1 | |||
| Parking assist monitor system | | ||
| Panoramic view monitor system | | ||
| Lighting system (w/ Automatic Headlight Beam Level Control System) | | ||
| Initialize back door lock | Power door lock control system | | |
| Reset back door close position | Power Back Door System (w/ Outside Door Control Switch) | |
*1: When performing learning using the Techstream.
Click here .gif)
CAUTION:
-
Be sure to read Precaution thoroughly before servicing.
Click here
- Wear protective gloves. Sharp areas on the parts may injure your hands.
.png)
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
NOTICE:
After the engine switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) battery terminal.
PROCEDURE
1. REMOVE REAR NO. 1 SEAT ASSEMBLY LH
Click here
2. REMOVE REAR SEAT COVER CAP LH
Click here
3. REMOVE NO. 1 RECLINING ADJUSTER RELEASE HANDLE LH
Click here
4. REMOVE REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY LH
Click here
5. REMOVE CUP HOLDER ASSEMBLY
Click here
6. REMOVE REAR SEAT INNER RECLINING COVER LH
Click here
7. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD
Click here
8. REMOVE REAR NO. 1 SEAT RECLINING ADJUSTER INSIDE COVER
Click here
9. REMOVE REAR SEAT INNER BELT ASSEMBLY LH

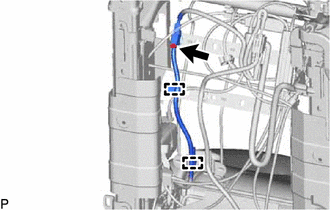

| (a) Disconnect the connector. |
|
(b) Disengage 2 clamps.

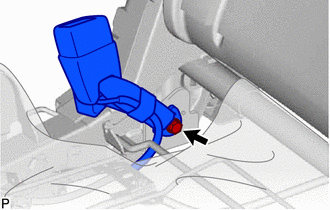

| (c) Remove the bolt and rear seat inner belt assembly LH. |
|
Components
COMPONENTS ILLUSTRATION *1 CUP HOLDER ASSEMBLY *2 NO. 1 RECLINING ADJUSTER RELEASE HANDLE LH *3 REAR NO. 1 SEAT RECLINING ADJUSTER INSIDE COVER *4 REAR SEAT COVER CAP LH *5 R ...
Installation
INSTALLATION CAUTION / NOTICE / HINT HINT:
Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.
PROCEDURE 1. INSTALL REAR SEAT INNER BELT ASSEMBLY LH ...
