REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during rear seat outer belt assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Disconnect cable from negative battery terminal

Memorize steering angle neutral point

Lane Control System

Pre-collision system

Intelligent clearance sonar system*1

Lighting system (w/ Automatic Headlight Beam Level Control System)

Parking assist monitor system

Panoramic view monitor system

Initialize back door lock

Power door lock control system

Reset back door close position

Power Back Door System (w/ Outside Door Control Switch)

*1: When performing learning using the Techstream.

Click here

CAUTION:

  • Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

    Click here

  • Wear protective gloves. Sharp areas on the parts may injure your hands.

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

NOTICE:

After the engine switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) battery terminal.

PROCEDURE

1. PRECAUTION

NOTICE:

After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click here

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:

  • Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
  • If an SRS part is accidentally deployed, it may cause a serious injury.

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click here

3. REMOVE TONNEAU COVER ASSEMBLY

Click here

4. REMOVE DECK BOARD ASSEMBLY

Click here

5. REMOVE REAR NO. 3 FLOOR BOARD

Click here

6. REMOVE REAR DECK FLOOR BOX

Click here

7. REMOVE REAR NO. 4 FLOOR BOARD

Click here

8. REMOVE FRONT DECK FLOOR BOX (for LH Side)

Click here

9. REMOVE DECK SIDE TRIM BOX RH

Click here

10. REMOVE REAR FLOOR FINISH PLATE

Click here

11. REMOVE REAR DOOR SCUFF PLATE

Click here

12. REMOVE REAR SEAT ASSEMBLY LH (for LH Side)

Click here

13. REMOVE REAR SEAT ASSEMBLY RH (for RH Side)

Click here

14. REMOVE UPPER QUARTER TRIM PAD

Click here

15. REMOVE REAR SEAT SIDE GARNISH

Click here

16. REMOVE REAR FLOOR FINISH SIDE PLATE

Click here

17. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for LH Side)

Click here

18. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for RH Side)

Click here

19. REMOVE ROPE HOOK ASSEMBLY (for LH Side)

Click here

20. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for LH Side)

Click here

21. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for RH Side)

Click here

22. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)

Click here

23. REMOVE RECLINING REMOTE CONTROL BEZEL RH (for RH Side)

w/o Rear Power Seat System:

Click here

24. REMOVE FOLD SEAT SWITCH ASSEMBLY (for RH Side)

w/ Rear Power Seat System:

Click here

25. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)

Click here

26. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY

Click here

27. DISCONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY

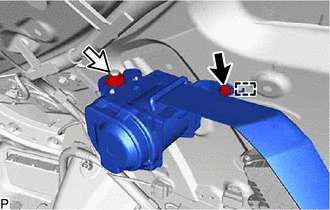

(a) Remove the bolt to disconnect the floor anchor of the rear No. 1 seat outer belt assembly.

28. REMOVE REAR NO. 1 SEAT OUTER BELT ASSEMBLY (for TMC Made)

(a) Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector.

HINT:

Tape the screwdriver tip before use.

*a

Protective Tape

*b

Locking Button

*c

Release

(b) Remove the bolt and nut.

Bolt

Nut

(c) Disengage the guide and remove the rear No. 1 seat outer belt assembly.

29. REMOVE NO. 2 CLEARANCE WARNING BUZZER (for RH Side)

w/ Intelligent Clearance Sonar System:

Click here

30. REMOVE OUTER BELT ANCHOR BRACKET SUB-ASSEMBLY (for TMC Made)

(a) Remove the 2 bolts and outer belt anchor bracket sub-assembly.

31. REMOVE REAR NO. 1 SEAT OUTER BELT ASSEMBLY (for TMMC Made)

(a) Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector.

HINT:

Tape the screwdriver tip before use.

*a

Protective Tape

*b

Locking Button

*c

Release

(b) Remove the 3 bolts.

(c) Disengage the guide and remove the rear No. 1 seat outer belt assembly.

    On-vehicle Inspection
    ON-VEHICLE INSPECTION CAUTION / NOTICE / HINT CAUTION: Be sure to correctly follow the removal and installation procedures for the rear No. 1 seat outer belt assembly. PROCEDURE 1. INSPECT REAR NO. 1 ...

    Inspection
    INSPECTION PROCEDURE 1. INSPECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY (a) Before installing the rear No. 1 seat outer belt assembly, check the ELR function. NOTICE: Do not disassemble the retractor. ...
