Lexus RX (RX 350L, RX450h) 2016-2025 Owners Manual: Second-row seats (RX450h)

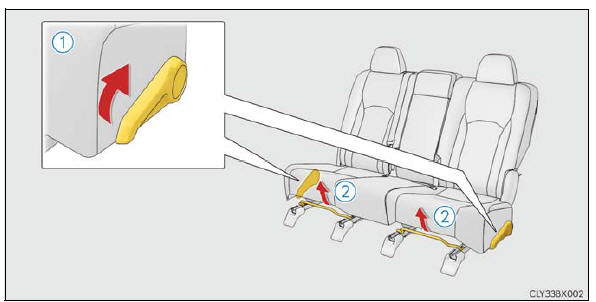

Manual seat

Lexus RX. Adjusting the seats

  1. Seatback angle adjustment lever
  2. Seat position adjustment lever

Power seat

Lexus RX. Adjusting the seats

  1. Seatback angle adjustment switch
  2. Seat position adjustment lever

Second-row seats (RX450hL)

Lexus RX. Adjusting the seats

  1. Seatback angle adjustment lever
  2. Seat position adjustment lever
  3. Seatback folding lever

Third-row seats (RX450hL)

Lexus RX. Adjusting the seats

  1. Right seat fold switch
  2. Right seat return switch
  3. Left seat fold switch
  4. Left seat return switch
    Rear seats
    ...

    Folding the second-row seat seatbacks (RX450h)
    ■ Before folding the rear seatbacks 1. Stow the center seat seat belt buckle. 2. Lower the rear seat head restraints to the lowest position. ■ Folding the rear seatbacks (manual seat) Using th ...
