Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

(a) Check that the engine switch is off.

(b) Check that the cable is disconnected from the negative (-) battery terminal.

CAUTION:

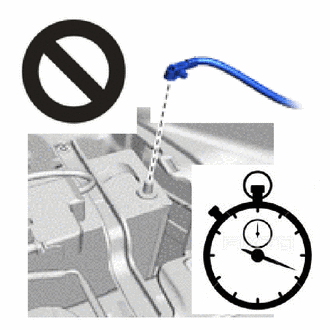

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(c) Connect the airbag connector to the lower No. 1 instrument panel airbag assembly.

NOTICE:

When connecting any airbag connector, take care not to damage the airbag wire harness.

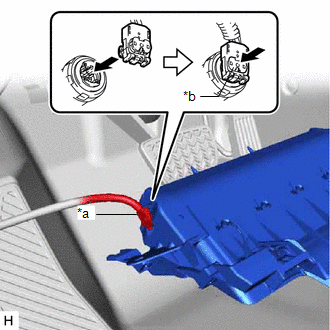

*a

Airbag Connector

*b

Airbag Connector Lock

(d) Push in the airbag connector lock to install the airbag connector.

(e) Engage the hook, 2 guides and 3 claws to temporarily install the lower No. 1 instrument panel airbag assembly.

(f) Install the 2 bolts.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

NOTICE:

Confirm that the lower No. 1 instrument panel airbag assembly is installed securely without any excessive gaps and is not protruding outward.

2. INSTALL LOWER INSTRUMENT FINISH PANEL SUB

Click here

3. INSTALL INSTRUMENT CLUSTER FINISH PANEL ORNAMENT

Click here

4. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

Click here

5. INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

Click here

6. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

Click here

7. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Click here

8. INSTALL INSTRUMENT PANEL GARNISH LH

Click here

9. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click here

10. INSTALL COWL SIDE TRIM BOARD LH

Click here

11. INSTALL FRONT DOOR SCUFF PLATE LH

w/o Rear No. 2 Seat: Click here

w/ Rear No. 2 Seat: Click here

12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click here

13. PERFORM DIAGNOSTIC SYSTEM CHECK

Click here

14. INSPECT SRS WARNING LIGHT

Click here
