REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the rear seat airbag assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced

Replacement Part or Procedure

Necessary Procedures

Effects / Inoperative when not performed

Link

Disconnect cable from negative battery terminal

Memorize steering angle neutral point

Lane control system

Pre-collision system

Intelligent clearance sonar system*1

Lighting system (w/ Automatic Headlight Beam Level Control System)

Parking assist monitor system

Panoramic view monitor system

Initialize back door lock

Power door lock control system

Reset back door close position

Power back door system

*1: When performing learning using the Techstream.

Click here

CAUTION:

  • Be sure to read Precaution thoroughly before servicing.

    Click here

  • Wear protective gloves. Sharp areas on the parts may injure your hands.

NOTICE:

If a rear seat airbag assembly has been deployed, replace the rear seat airbag assembly, rear seatback frame sub-assembly, separate type rear seatback pad and separate type rear seatback cover with the necessary parts in accordance with the extent of the collision damage.

Click here

PROCEDURE

1. REMOVE REAR NO. 1 SEAT ASSEMBLY

Click here

2. REMOVE REAR SEAT COVER CAP

Click here

3. REMOVE NO. 1 RECLINING ADJUSTER RELEASE HANDLE

Click here

4. REMOVE REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY

Click here

5. REMOVE CUP HOLDER ASSEMBLY

Click here

6. REMOVE REAR SEAT INNER RECLINING COVER

Click here

7. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD

Click here

8. REMOVE REAR SEATBACK COVER

Click here

9. REMOVE REAR SEATBACK BOARD CARPET ASSEMBLY

Click here

10. REMOVE NO. 1 SEAT ARMREST CAP

Click here

11. REMOVE REAR SEAT ARMREST ASSEMBLY

Click here

12. REMOVE REAR SEAT UPPER RECLINING COVER

Click here

13. REMOVE RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY

Click here

14. REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD

Click here

15. REMOVE RECLINING REMOTE CONTROL BEZEL

Click here

16. REMOVE REAR SEAT AIRBAG ASSEMBLY

CAUTION:

When storing the rear seat airbag assembly, keep the airbag deployment side facing upward.

Deployment Side

*a

White Housing Lock

*b

Yellow CPA

Slide

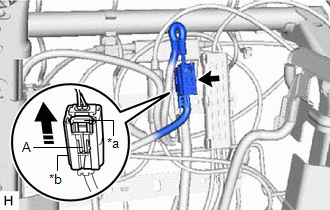

(a) Disconnect the rear seat airbag assembly connector.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.

(1) Push down the white housing lock and slide the yellow CPA. (At this time, the connector cannot be disconnected yet.)

(2) Push down the white housing lock again and disconnect the connector.

NOTICE:

Do not push down the part (A) shown in the illustration when disconnecting the connector.

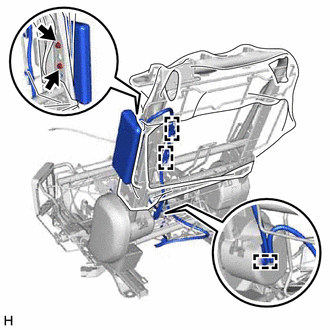

(b) Disengage the 3 clamps.

(c) Disengage the 3 clamps and remove the 2 nuts and rear seat airbag assembly.

NOTICE:

  • Do not reuse the nuts.
  • Make sure that the rear seatback frame sub-assembly is not deformed. If it is deformed, replace it with a new one.
    Installation
    INSTALLATION PROCEDURE 1. INSTALL REAR SEAT AIRBAG ASSEMBLY (a) Install the rear seat airbag assembly with 2 new nuts. Torque: 5.5 N·m {56 kgf·cm, 49 in·lbf} NOTICE: Do not reuse the nuts. Ma ...
