REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during telephone antenna assembly removal/installation are shown below.
Necessary Procedures After Parts Removed/Installed/Replaced Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
---|---|---|---|
*1: When performing learning using the Techstream.
Click here | |||
Disconnect cable from negative battery terminal | Memorize steering angle neutral point | Lane Control System |
|
Pre-collision System | |||
Intelligent Clearance Sonar System*1 | |||
Parking Assist Monitor System |
| ||
Panoramic View Monitor System |
| ||
Lighting System (w/ Automatic Headlight Beam Level Control System) |
| ||
Initialize back door lock | Power Door Lock Control System |
| |
Reset back door close position | Power Back Door System (w/ Outside Door Control Switch) |
|
CAUTION:
Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.
Click here
PROCEDURE
1. REMOVE ROOF HEADLINING ASSEMBLY (w/o Rear No. 2 Seat)
Click here
2. REMOVE ROOF HEADLINING ASSEMBLY (w/ Rear No. 2 Seat)
Click here
3. REMOVE TELEPHONE ANTENNA ASSEMBLY WITH COVER

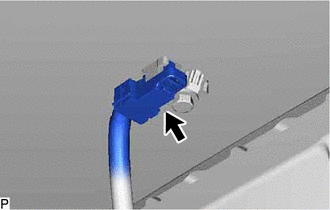

(a) Disconnect the connector. | |
(b) Remove the bolt. | |
(c) Pull the washer and holder as shown in the illustration and remove the telephone antenna assembly with cover.
Remove in this Direction |
4. REMOVE TELEPHONE ANTENNA ASSEMBLY
(a) Pull the telephone antenna assembly in the direction indicated by the arrow (1) shown in the illustration to disengage the 3 claws and 2 guides.
Remove in this Direction (1) | |
Remove in this Direction (2) |
(b) Pull the telephone antenna assembly in the direction indicated by the arrow (2) shown in the illustration to disengage the guide and remove the telephone antenna assembly.
(c) When reusing the telephone antenna assembly:

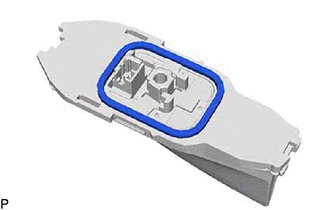

(1) Remove the seal. | |
