Lexus RX (RX 350L, RX450h) 2016-2024 Owners Manual: Rear window wiper and washer

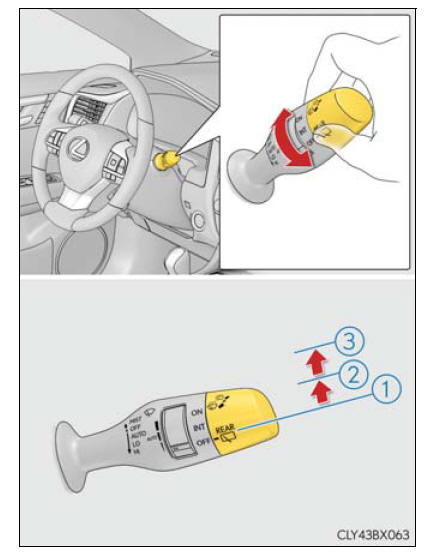

Operating the wiper lever
Operating the
switch operates the
rear wiper as follows:
-
(U.S.A.) or
(Canada)
Off -
(U.S.A.) or
(Canada)
Intermittent operation -
(U.S.A.) or
(Canada)
Normal operation
-

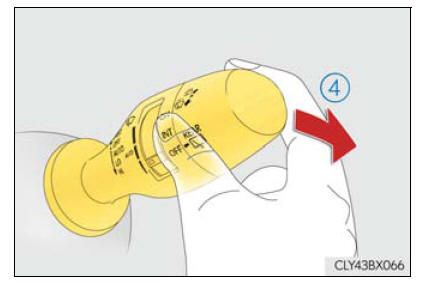

Washer/wiper
dual operation
Pushing the lever operates the wiper and washer.
The wiper will automatically operate a couple of times after the washer squirts.
■ The rear window wiper and washer can be operated when The power switch is in ON mode.
■ If no washer fluid sprays Check that the washer nozzle is not blocked if there is washer fluid in the washer fluid tank.
NOTICE
■ When the rear window is dry Do not use the wiper, as it may damage the rear window.
■ When the washer fluid tank is empty Do not operate the switch continually as the washer fluid pump may overheat.
■When a nozzle becomes blocked In this case, contact your Lexus dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.
