INSTALLATION
PROCEDURE
1. INSTALL REAR CORNER ULTRASONIC SENSOR RETAINER
HINT:

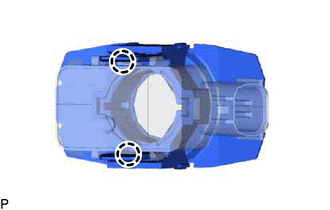

(a) Engage the 2 claws to install a new rear corner ultrasonic sensor retainer to the rear corner ultrasonic sensor. | |
(b) Clean the surface of the rear bumper assembly.
(1) Remove any remaining double-sided tape from the rear bumper assembly.
(2) Wipe off any adhesive residue with cleaner.
(c) Cover the sensor installation hole with a 19 mm (0.748 in.) circular piece of tape. |
|
(d) Using a brush or felt, apply primer or equivalent to the rear corner ultrasonic sensor retainer installation area.
NOTICE:
Primer |
(e) Confirm that the primer has completely dried by touching the rear bumper assembly. Then remove the tape.
(f) Peel off the release paper from the rear corner ultrasonic sensor retainer.
(g) Align the rear corner ultrasonic sensor retainer with rear corner ultrasonic sensor with the mark on the rear bumper assembly and install it as shown in the illustration.
NOTICE:
HINT:
Press the area shown in the illustration with a force of 30 N (3.0 kgf) for 3 seconds to securely install the rear corner ultrasonic sensor retainer to the rear bumper assembly. Confirm there is no clearance between the rear corner ultrasonic sensor retainer and rear bumper assembly.
*a | Scribed Line |
Press Here |
2. INSTALL REAR CENTER ULTRASONIC SENSOR RETAINER
HINT:
(a) Engage the 2 claws to install a new rear center ultrasonic sensor retainer to the rear center ultrasonic sensor. | |
(b) Clean the surface of the rear bumper assembly.
(1) Remove any remaining double-sided tape from the rear bumper assembly.
(2) Wipe off any adhesive residue with cleaner.
(c) Cover the sensor installation hole with a 19 mm (0.748 in.) circular piece of tape. |
|
(d) Using a brush or felt, apply primer or equivalent to the rear center ultrasonic sensor retainer installation area.
NOTICE:
Primer |
(e) Confirm that the primer has completely dried by touching the rear bumper assembly. Then remove the tape.
(f) Peel off the release paper from the rear center ultrasonic sensor retainer.
(g) Align the rear center ultrasonic sensor retainer with rear center ultrasonic sensor with the mark on the rear bumper assembly and install it as shown in the illustration.
NOTICE:
HINT:
Press the area shown in the illustration with a force of 30 N (3.0 kgf) for 3 seconds to securely install the rear center ultrasonic sensor retainer to the rear bumper assembly. Confirm there is no clearance between the rear center ultrasonic sensor retainer and rear bumper assembly.
*a | Scribed Line |
Press Here |
3. INSTALL ULTRASONIC SENSOR CLIP
HINT:
(a) Engage the clamp to install the ultrasonic sensor clip to the wire. | |
4. INSTALL REAR CORNER ULTRASONIC SENSOR
HINT:
The illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.
(a) When replacing only the rear corner ultrasonic sensor:
(1) Engage the 2 claws to install the rear corner ultrasonic sensor as shown in the illustration.
Install in this Direction |
(b) for RH Side with Rear No. 2 Seat:
(1) Engage the 4 claws as shown in the illustration.
Install in this Direction |
(2) Connect the connector.
(c) except RH Side with Rear No. 2 Seat:
(1) Connect the connector.
5. INSTALL REAR CENTER ULTRASONIC SENSOR
HINT:
The illustration is for the LH side. Use the same procedure for the RH side and LH side.
(a) When replacing only the rear center ultrasonic sensor:
(1) Engage the 2 claws to install the rear center ultrasonic sensor as shown in the illustration.
Install in this Direction |
(b) Engage the 4 claws as shown in the illustration.
Install in this Direction |
(c) Connect the connector.
6. INSTALL REAR BUMPER ASSEMBLY (w/o Rear No. 2 Seat)
Click here
7. INSTALL REAR BUMPER ASSEMBLY (w/ Rear No. 2 Seat)
Click here
8. PERFORM CALIBRATION
Click here
SST: 09989-00020
