INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL REAR DISC

(a) Align the matchmarks of the rear disc and rear axle hub and bearing assembly, and install the rear disc.

NOTICE:

When replacing the rear disc with a new one, select the installation position where the rear disc has minimal runout.

*a

Matchmark

2. INSTALL REAR DISC BRAKE CYLINDER MOUNTING

(a) Install the rear disc brake cylinder mounting to the rear axle carrier sub-assembly with the 2 bolts.

Torque:

150 N·m {1530 kgf·cm, 111 ft·lbf}

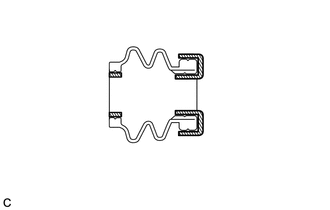

3. INSTALL REAR DISC BRAKE BUSHING DUST BOOT

(a) Apply a light layer of lithium soap base glycol grease to the entire circumference of 2 new rear disc brake bushing dust boots.

HINT:

Apply more than 0.3 g (0.01 oz) of lithium soap base glycol grease to each rear disc brake bushing dust boot.

Lithium Soap Base Glycol Grease

(b) Install the 2 rear disc brake bushing dust boots to the rear disc brake cylinder mounting.

4. INSTALL REAR DISC BRAKE CYLINDER SLIDE PIN

Lithium Soap Base Glycol Grease

(a) Apply a light layer of lithium soap base glycol grease to the contact surface of the rear No. 2 disc brake cylinder slide pin.

(b) Install a new rear disc brake cylinder slide bushing to the rear No. 2 disc brake cylinder slide pin.

Lithium Soap Base Glycol Grease

(c) Apply a light layer of lithium soap base glycol grease to the sliding part and the sealing surfaces of the rear No. 1 disc brake cylinder slide pin and rear No. 2 disc brake cylinder slide pin.

(d) Install the rear No. 1 disc brake cylinder slide pin and rear No. 2 disc brake cylinder slide pin to the rear disc brake cylinder mounting.

*1

Rear No. 1 Disc Brake Cylinder Slide Pin

*2

Rear No. 2 Disc Brake Cylinder Slide Pin

(e) Push the rear No. 1 disc brake cylinder slide pin and rear No. 2 disc brake cylinder slide pin into each rear disc brake bushing dust boot to engage the pins to the boots.

5. INSTALL REAR DISC BRAKE PAD SUPPORT PLATE

(a) Install the 4 rear disc brake pad support plates to the rear disc brake cylinder mounting.

NOTICE:

Be sure to install each rear disc brake pad support plate in the correct position and direction.

6. INSTALL REAR DISC BRAKE ANTI-SQUEAL SHIM

NOTICE:

  • When replacing worn rear disc brake pads, the rear disc brake anti-squeal shims and rear disc brake pad wear indicator plates must be replaced together with the rear disc brake pads.
  • Install each rear disc brake pad wear indicator plate in the correct position and direction.
  • Install the rear disc brake anti-squeal shims in the correct positions and directions.

(a) Check the rear disc brake pad.

HINT:

If the rear disc brake pad has an identification mark, be sure to confirm the installation location.

*A

for TMC Made

*B

for TMMC Made

*a

Inner Side (Light Blue)

*b

Outer Side (Pink)

*c

Inner Side (White)

*d

Outer Side (White)

(b) Install the rear No. 1 disc brake anti-squeal shim and rear No. 2 disc brake anti-squeal shim to each rear disc brake pad.

NOTICE:

  • Install the rear No. 1 disc brake anti-squeal shim and rear No. 2 disc brake anti-squeal shim in the correct positions and direction as shown in the illustration.
  • Install the rear No. 1 disc brake anti-squeal shim and rear No. 2 disc brake anti-squeal shim with the claws in the locations shown in the illustration to the outer side of the vehicle.
  • Install so that the claws are towards the outer side of the vehicle.

*1

Rear No. 1 Disc Brake Anti-squeal Shim

*2

Rear No. 2 Disc Brake Anti-squeal Shim

*3

Rear Disc Brake Pad Wear Indicator Plate

*a

Claw

(c) Install new rear disc brake pad wear indicator plate to each rear disc brake pad.

7. INSTALL REAR DISC BRAKE PAD

(a) Install the 2 rear disc brake pads to the rear disc brake cylinder mounting.

NOTICE:

Install the rear disc brake pad so that the rear disc brake pad wear indicator plate is mounted on the lower side of the vehicle.

HINT:

If the rear disc brake pad has an identification mark, be sure to confirm the installation location.

*A

for TMC Made

*B

for TMMC Made

*a

Inner Side (Light Blue)

*b

Outer Side (Pink)

*c

Inner Side (White)

*d

Outer Side (White)

8. INSTALL REAR DISC BRAKE CYLINDER ASSEMBLY

(a) Hold the 2 rear disc brake cylinder slide pins, and install the rear disc brake cylinder assembly to the rear disc brake cylinder mounting with 2 bolts.

Torque:

34.3 N·m {350 kgf·cm, 25 ft·lbf}

NOTICE:

If bleeding of air from the rear brake cylinder assembly will be performed, reuse the bolts. If bleeding of air from the rear brake cylinder assembly will not be performed, install new bolts.

9. INSTALL PARKING BRAKE ACTUATOR ASSEMBLY

(a) Apply a light coat of lithium soap base glycol grease to a new O-ring.

(b) Install the O-ring to the rear disc brake cylinder assembly.

NOTICE:

Make sure to replace the O-ring with a new one when installing the parking brake actuator assembly.

(c) Using a 5 mm hexagon socket wrench, install the parking brake actuator assembly to the rear disc brake cylinder assembly with the 2 bolts.

Torque:

8.4 N·m {86 kgf·cm, 74 in·lbf}

10. CONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY

(a) Connect the No. 2 parking brake wire assembly connector to the parking brake actuator assembly.

11. CONNECT REAR FLEXIBLE HOSE

(a) Connect the rear flexible hose to the rear disc brake cylinder assembly with a new union bolt and a new gasket.

Torque:

30.4 N·m {310 kgf·cm, 22 ft·lbf}

NOTICE:

Install the rear flexible hose lock securely into the lock hole in the rear disc brake cylinder assembly.

12. BLEED BRAKE LINE

Click here

13. BLEED REAR DISC BRAKE CYLINDER ASSEMBLY

CAUTION:

If the rear disc brake cylinder assembly has been disassembled, perform air bleeding for the rear disc brake cylinder assembly.

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.
  • While performing air bleeding of the rear disc brake cylinder assembly, the bolts can be reused during the bleeding procedure. After air bleeding is complete, replace the bolts with new ones.

(a) Perform the procedure to enter rear disc brake pad replacement mode 5 times.

Click here

(b) Release the parking brake.

(c) Disconnect the No. 2 parking brake wire assembly connector from the parking brake actuator assembly.

(d) Remove the brake master cylinder reservoir filler cap assembly.

(e) Add brake fluid to keep the level between the MIN and MAX lines of the reservoir while bleeding the brakes.

NOTICE:

  • Make sure that there is sufficient brake fluid in the reservoir.
  • If brake fluid leaks onto any painted surface, immediately wash it off.
  • Do not remove the filter from the brake master cylinder reservoir assembly and be sure to fill the brake master cylinder reservoir assembly with new brake fluid to avoid any potential contamination of the brake system. Contamination, for example by dirt particles or mineral oil, could lead to functional brake problems.

(f) Hold the 2 rear disc brake cylinder slide pins and remove the 2 bolts and separate the rear disc brake cylinder assembly from the rear disc brake cylinder mounting.(*1)

*a

Turn

*b

Hold

(g) Hold the rear disc brake cylinder assembly horizontally, then tilt it 45° toward the bleeder plug side as shown in the illustration.(*2)

(h) Temporarily install the rear disc brake cylinder assembly to the rear disc brake cylinder mounting with the 2 bolts.(*3)

(i) Depress the brake pedal several times, and then loosen the bleeder plug with the pedal depressed.(*4)

(j) When fluid stops coming out, tighten the bleeder plug and release the brake pedal.(*5)

(k) Repeat steps (*1) through (*5) 3 times.

NOTICE:

If there is still air in the system after performing steps (*1) through (*5) 3 times, repeat the steps (*1) through (*5) until the air has been bled.

(l) Tighten the bleeder plug completely.

Torque:

8.3 N·m {85 kgf·cm, 73 in·lbf}

(m) Hold the 2 rear disc brake cylinder slide pins, and install the rear disc brake cylinder assembly to the rear disc brake cylinder mounting with 2 new bolts.

Torque:

34.3 N·m {350 kgf·cm, 25 ft·lbf}

(n) Connect the No. 2 parking brake wire assembly connector to the parking brake actuator assembly.

(o) Inspect for brake fluid leaks.

(p) Inspect the brake fluid level in the reservoir.

Click here

(q) Install the brake master cylinder reservoir filler cap assembly.

14. INSTALL REAR WHEEL

Click here

15. NORMAL CONDITION RECOVERY

Click here
