Selecting the audio source
Switching between audio sources, such as the radio and CD, is explained in this section.
Changing audio source
1. Press the "AUDIO" button to display the "Source" screen.
If the "Source" screen is not displayed, press the button again.
2. Select the desired audio source.
The audio source can be selected by pressing the "RADIO" or "MEDIA" button.
Using the steering wheel switches to change audio sources
Press the "MODE" switch when the audio system is turned on. The audio source changes each time the "MODE" switch is pressed.
■ Rearranging the list The listing order of the source list can be rearranged.
1. Move the controller to the left while on the "Source" screen.
2. Select "Audio Source Select".
3. Select an item you wish to move and then select where to move the item to.
Optimal use of the audio system
On the "Sound Settings" screen, sound quality (Treble/Mid/Bass), volume balance and DSP settings can be adjusted.
How to adjust the sound settings and sound quality
Go to "Sound Settings": Move the controller to the left on the audio top screen → "Sound Settings"
To change between the sound setting screen and DSP setting screen, move the controller to the right then select the desired screen.
"Sound Settings"
"DSP"
■ The sound quality level is adjusted individually The treble, mid and bass levels can be adjusted for each audio mode separately.
■ About Automatic Sound Levelizer (ASL) ASL automatically adjusts the volume and tone quality according to the vehicle speed.
Audio settings
Screen for audio settings
Go to "Audio Settings": "MENU" button → "Setup" → "Audio"
Changing radio settings
To display the radio settings screen in a different way, select "Radio Settings" on the audio menu screen.
Changing iPod settings
To display the iPod settings screen in a different way, select "iPod Settings" on the audio menu screen.
Changing A/V settings
To display the A/V settings screen in a different way, select "External Video Settings" on the audio menu screen.

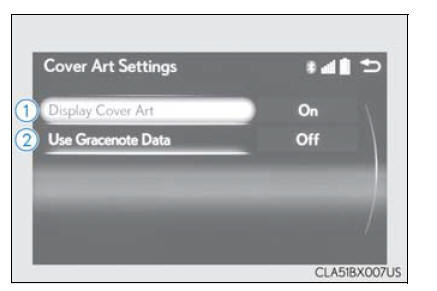

Changing the cover art settings
To display the cover art settings screen in a different way, select "Cover Art Settings" on the audio menu screen.
Changing USB settings
To display the USB settings screen in a different way, select "USB Settings" on the audio menu screen.
Audio menu screen operation
You can change the settings and control functions for each audio source.
Audio menu screen
Go to audio menu screen: Move the controller to the left on the audio top screen
Radio mode
Media mode
Repeat play
Random/shuffle playback
