Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL NO. 2 CYLINDER HEAD GASKET

(a) Place a new No. 2 cylinder head gasket on the cylinder block sub-assembly as shown in the illustration.

*a

Lot No.

Front of Engine

NOTICE:

  • Remove any oil from the contact surfaces.
  • Make sure to install the No. 2 cylinder head gasket in the correct direction.

(b) Apply seal packing to the No. 2 cylinder head gasket as shown in the illustration.

Seal Packing:

Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

NOTICE:

  • Remove any oil from the contact surfaces.
  • Install the No. 2 cylinder head gasket within 3 minutes and tighten the cylinder head set bolts within 15 minutes of applying seal packing.

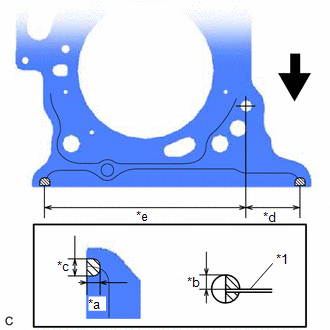

*1

No. 2 Cylinder Head Gasket

*a

5.0 to 7.0 mm (0.197 to 0.276 in.)

*b

3.0 to 5.0 mm (0.118 to 0.197 in.)

*c

7.0 to 9.0 mm (0.276 to 0.354 in.)

*d

39.3 mm (1.55 in.)

*e

111.3 mm (4.38 in.)

Front of Engine

Seal Packing

2. INSTALL CYLINDER HEAD LH

Click here

3. INSTALL CYLINDER HEAD GASKET

(a) Place a new cylinder head gasket on the cylinder block sub-assembly as shown in the illustration.

*a

Lot No.

Front of Engine

NOTICE:

  • Remove any oil from the contact surfaces.
  • Make sure to install the cylinder head gasket in the correct direction.

(b) Apply seal packing to the cylinder head gasket as shown in the illustration.

Seal Packing:

Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

NOTICE:

  • Remove any oil from the contact surfaces.
  • Install the cylinder head gasket within 3 minutes and tighten the cylinder head set bolts within 15 minutes of applying seal packing.

*1

Cylinder Head Gasket

*a

5.0 to 7.0 mm (0.197 to 0.276 in.)

*b

3.0 to 5.0 mm (0.118 to 0.197 in.)

*c

7.0 to 9.0 mm (0.276 to 0.354 in.)

*d

38.6 mm (1.52 in.)

*e

142.7 mm (5.62 in.)

Front of Engine

Seal Packing

4. INSTALL CYLINDER HEAD SUB-ASSEMBLY

Click here

5. INSTALL WATER OUTLET

Click here

6. INSTALL VALVE STEM CAP

Click here

7. INSTALL VALVE LASH ADJUSTER ASSEMBLY

Click here

8. INSTALL NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY

Click here

9. INSTALL NO. 1 CHAIN VIBRATION DAMPER

Click here

10. INSTALL NO. 2 CHAIN VIBRATION DAMPER

Click here

11. INSTALL SENSOR WIRE

Click here

12. INSTALL NO. 3 CAMSHAFT SUB-ASSEMBLY

Click here

13. INSTALL NO. 4 CAMSHAFT SUB-ASSEMBLY

Click here

14. INSTALL CAMSHAFT BEARING CAP (for Bank 2)

Click here

15. SET CAMSHAFT TIMING GEAR ASSEMBLY, CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY AND NO. 2 CHAIN SUB-ASSEMBLY (for Bank 2)

Click here

16. TEMPORARILY INSTALL CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 2)

Click here

17. TEMPORARILY INSTALL CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 2)

Click here

18. INSTALL CAMSHAFT HOUSING SUB-ASSEMBLY LH

Click here

19. TIGHTEN CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 2)

Click here

20. TIGHTEN CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 2)

Click here

21. INSTALL CAMSHAFT

Click here

22. INSTALL NO. 2 CAMSHAFT

Click here

23. INSTALL CAMSHAFT BEARING CAP (for Bank 1)

Click here

24. SET CAMSHAFT TIMING GEAR ASSEMBLY, CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY AND NO. 2 CHAIN SUB-ASSEMBLY (for Bank 2)

Click here

25. TEMPORARILY INSTALL CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 1)

Click here

26. TEMPORARILY INSTALL CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 1)

Click here

27. INSTALL CAMSHAFT HOUSING SUB-ASSEMBLY

Click here

28. TIGHTEN CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 1)

Click here

29. TIGHTEN CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 1)

Click here

30. INSTALL NO. 3 CHAIN TENSIONER ASSEMBLY

Click here

31. INSTALL NO. 2 CHAIN TENSIONER ASSEMBLY

Click here

32. INSTALL CHAIN SUB-ASSEMBLY

Click here

33. INSTALL CHAIN TENSIONER SLIPPER

Click here

34. INSTALL NO. 1 CHAIN TENSIONER ASSEMBLY

Click here

35. INSPECT VALVE TIMING

Click here

36. INSTALL TIMING CHAIN COVER ASSEMBLY

Click here

37. INSTALL TIMING CHAIN CASE OIL SEAL

Click here

38. INSTALL OIL PAN SUB-ASSEMBLY

(a) Install 2 new oil pan gaskets to the timing chain cover assembly.

(b) Apply seal packing in a continuous line as shown in the illustration.

Seal Packing:

Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

Seal Packing Diameter:

3.0 to 4.0 mm (0.118 to 0.157 in.)

NOTICE:

  • Remove any oil from the contact surfaces.
  • Install the oil pan sub-assembly within 3 minutes of applying seal packing.
  • Do not start the engine for at least 2 hours after installation.

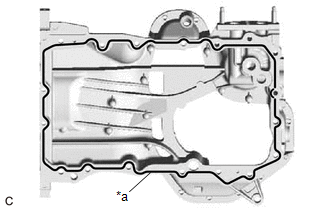

*a

Seal Packing

(c) Install the oil pan sub-assembly with the 16 bolts and 2 nuts in the order shown in the illustration.

*a

Torque

*b

Bolt and Nut Tightening Order

Bolt

Nut

Torque:

Bolt (A) :

10 N·m {102 kgf·cm, 7 ft·lbf}

Bolt (B), (C), (D) :

21 N·m {214 kgf·cm, 15 ft·lbf}

Nut :

21 N·m {214 kgf·cm, 15 ft·lbf}

Bolt Length:

Item

Length

Bolt (A)

16 mm (0.630 in.)

Bolt (B)

45 mm (1.77 in.)

Bolt (C)

25 mm (0.984 in.)

Bolt (D)

70 mm (2.76 in.)

(d) Wipe off any excess seal packing with a clean piece of cloth.

NOTICE:

Do not allow seal packing to contact the No. 1 crankshaft position sensor plate.

Wipe off the Seal Packing

39. INSTALL OIL STRAINER SUB-ASSEMBLY

Click here

40. INSTALL NO. 2 OIL PAN SUB-ASSEMBLY

Click here

41. INSTALL OIL COOLER PIPE (w/ Oil Cooler)

Click here

42. INSTALL OIL COOLER ASSEMBLY (w/ Oil Cooler)

Click here

43. INSTALL SPARK PLUG TUBE GASKET

Click here

44. INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY LH

Click here

45. INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY

Click here

46. INSTALL SENSOR WIRE

Click here

47. INSTALL CRANKSHAFT POSITION SENSOR PROTECTOR

Click here

48. INSTALL CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 2)

Click here

49. INSTALL CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 2)

Click here

50. INSTALL CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 1)

Click here

51. INSTALL CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1)

Click here

52. INSTALL WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

Click here

53. CONNECT WATER BY-PASS HOSE

Click here

54. INSTALL FRONT NO. 1 ENGINE MOUNTING BRACKET LH

Click here

55. INSTALL CRANKSHAFT PULLEY

Click here

56. INSTALL RADIATOR PIPE CLAMP

Click here

57. INSTALL WIRE HARNESS CLAMP BRACKET

Click here

58. INSTALL NO. 5 CYLINDER BLOCK INSULATOR (w/ Oil Cooler)

Click here

59. INSTALL ENGINE OIL LEVEL DIPSTICK GUIDE

Click here

60. INSTALL WATER PUMP PULLEY

Click here

61. INSTALL V-RIBBED BELT TENSIONER ASSEMBLY

Click here

62. INSTALL NO. 2 IDLER PULLEY SUB-ASSEMBLY

Click here

63. INSTALL COMPRESSOR AND MAGNETIC CLUTCH

Click here

64. INSTALL GENERATOR ASSEMBLY

  • for 180A Type:

    Click here

  • for 150A Type:

    Click here

65. INSTALL V-RIBBED BELT

Click here

66. INSTALL VACUUM PUMP ASSEMBLY

Click here

67. INSTALL IGNITION COIL ASSEMBLY

Click here

68. INSTALL KNOCK CONTROL SENSOR

Click here

69. INSTALL ENGINE HANGERS

Click here

70. REMOVE ENGINE ASSEMBLY FROM ENGINE STAND

Click here

    Removal
    REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during eng ...
