Components

COMPONENTS

ILLUSTRATION

*1

FORWARD RECOGNITION CAMERA

*2

FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY

Removal

REMOVAL

PROCEDURE

1. REMOVE FORWARD RECOGNITION CAMERA

Click here

2. REMOVE FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY

NOTICE:

  • Do not touch the inner surface of the forward recognition with heater hood sub-assembly.
  • Do not apply force to the heating element of the forward recognition with heater hood sub-assembly or an open circuit may result.

Inner Surface of Forward Recognition with Heater Hood Sub-assembly

(a) Disconnect the connector.

NOTICE:

Do not pull the harness forcibly when disconnecting the connector.

(b) Disengage the clamp and 3 ribs.

HINT:

Disengage the clamp and ribs in the order shown in the illustration.

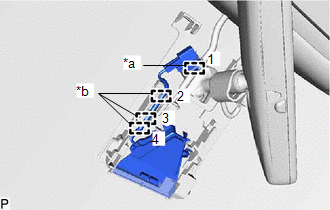

*a

Clamp

*b

Rib

(c) Pull the forward recognition with heater hood sub-assembly in the direction indicated by the arrow (1) shown in the illustration to disengage the 2 claws.

Remove in this Direction (1)

Remove in this Direction (2)

(d) Pull the forward recognition with heater hood sub-assembly in the direction indicated by the arrow (2) shown in the illustration to disengage the 2 guides and remove the forward recognition with heater hood sub-assembly.

Installation

INSTALLATION

PROCEDURE

1. INSTALL FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY

NOTICE:

  • Do not touch the inner surface of the forward recognition with heater hood sub-assembly.

    Inner Surface of Forward Recognition with Heater Hood Sub-assembly
  • Do not apply force to the heating element of the forward recognition with heater hood sub-assembly or an open circuit may result.

(a) Engage the 2 guides and 2 claws as indicated by the arrows in the order shown in the illustration.

Heater Area

Install in this Direction (1)

Install in this Direction (2)

NOTICE:

  • Make sure that the 2 claws are engaged as shown in the illustration. Failure to do so may result in the malfunction of systems that use the forward recognition camera.
  • Do not apply force to the heating element of the forward recognition with heater hood sub-assembly or an open circuit may result.

(b) Engage the clamp and 3 ribs to install the forward recognition with heater hood sub-assembly.

NOTICE:

  • As the No. 1 forward recognition cover cannot be installed correctly if the clamp and ribs are not engaged securely, make sure to engage each clamp and rib securely.
  • Do not forcibly pull the wire harness as it may become damaged.

HINT:

Engage the clamp and ribs in the order shown in the illustration.

*a

Clamp

*b

Rib

(c) Connect the connector.

2. INSTALL FORWARD RECOGNITION CAMERA

Click here
