Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: Components
COMPONENTS
ILLUSTRATION
| *A | for TMMC Made | - | - |
| *1 | COOL AIR INTAKE DUCT SEAL | *2 | FRONT BUMPER ASSEMBLY |
| *3 | FRONT FENDER MOULDING SUB-ASSEMBLY LH | *4 | FRONT FENDER MOULDING SUB-ASSEMBLY RH |
ILLUSTRATION
| *A | w/o Fog Light | *B | w/ Fog Light |
| *C | w/ Panoramic View Monitor System | *D | for Type A |
| *E | for Type B | - | - |
| *1 | CONNECTOR COVER | *2 | FOG LIGHT ASSEMBLY LH |
| *3 | FOG LIGHT ASSEMBLY RH | *4 | FRONT BUMPER ARM HOLE COVER LH |
| *5 | FRONT BUMPER HOLE COVER ASSEMBLY LH | *6 | FRONT BUMPER HOLE COVER ASSEMBLY RH |
| *7 | FRONT TELEVISION CAMERA ASSEMBLY | *8 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *9 | TELEVISION CAMERA WIRE | - | - |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | w/ Intuitive Parking Assist System | - | - |
| *1 | FRONT CENTER ULTRASONIC SENSOR | *2 | FRONT CORNER ULTRASONIC SENSOR |
| *3 | FRONT CORNER ULTRASONIC SENSOR RETAINER | *4 | NO. 4 ENGINE ROOM WIRE |
| *5 | ULTRASONIC SENSOR CLIP | - | - |
| ● | Non-reusable part | - | - |

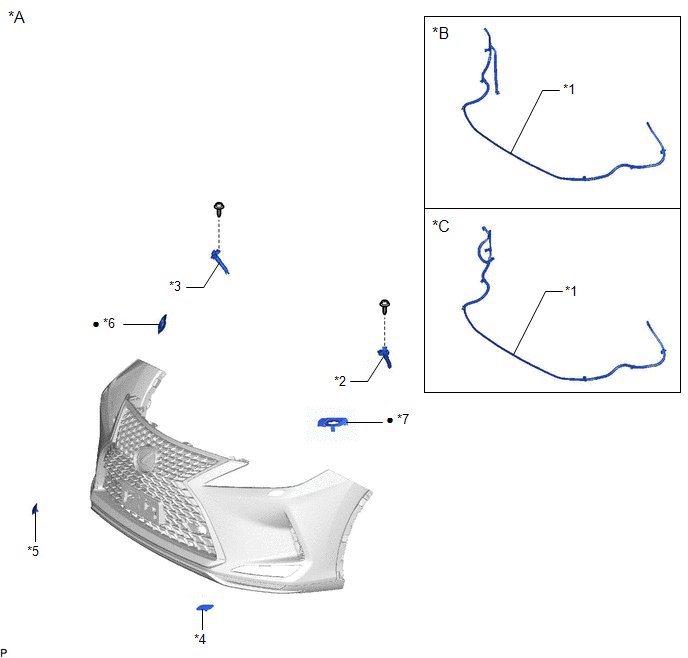

ILLUSTRATION
| *A | w/ Headlight Cleaner System | *B | for TMC Made |
| *C | for TMMC Made | - | - |
| *1 | HEADLIGHT CLEANER HOSE | *2 | HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH |
| *3 | HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH | *4 | HEADLIGHT WASHER COVER LH |
| *5 | HEADLIGHT WASHER COVER RH | *6 | NO. 1 WASHER BRACKET |
| *7 | NO. 2 WASHER BRACKET | - | - |
| ● | Non-reusable part | - | - |
ILLUSTRATION
| *A | except F-Sport | *B | for F-Sport |
| *1 | FRONT BUMPER EXTENSION MOUNTING BRACKET | *2 | FRONT BUMPER HOLE COVER LH |
| *3 | FRONT BUMPER HOLE COVER RH | *4 | LOWER SIDE RADIATOR GRILLE LH |
| *5 | LOWER SIDE RADIATOR GRILLE RH | *6 | NO. 1 MOULDING TAPE |
| ● | Non-reusable part | - | - |
ILLUSTRATION
| *1 | HOOD TO RADIATOR GRILLE SEAL | *2 | INNER RADIATOR GRILLE |
| *3 | RADIATOR GRILLE (OR FRONT PANEL) EMBLEM | *4 | RADIATOR GRILLE SUB-ASSEMBLY |
ILLUSTRATION
| *1 | NO. 1 RADIATOR GRILLE MOULDING | *2 | NO. 2 RADIATOR GRILLE MOULDING |
ILLUSTRATION
| *A | except F-Sport | - | - |
| *1 | FRONT BUMPER GUARD | *2 | FRONT BUMPER GUARD COVER LH |
| *3 | FRONT BUMPER GUARD COVER RH | - | - |
ILLUSTRATION
| *A | for F-Sport | - | - |
| *1 | FRONT BUMPER EXTENSION SUB-ASSEMBLY | *2 | FRONT BUMPER SIDE MOULDING LH |
| *3 | FRONT BUMPER SIDE MOULDING RH | - | - |
ILLUSTRATION
| *1 | FRONT BUMPER ENERGY ABSORBER | *2 | FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY |
| *3 | FRONT BUMPER SIDE RETAINER LH | *4 | FRONT BUMPER SIDE RETAINER RH |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
Front Bumper
...
Installation
INSTALLATION CAUTION / NOTICE / HINT HINT: When the front bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, ...
