Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: Components

COMPONENTS

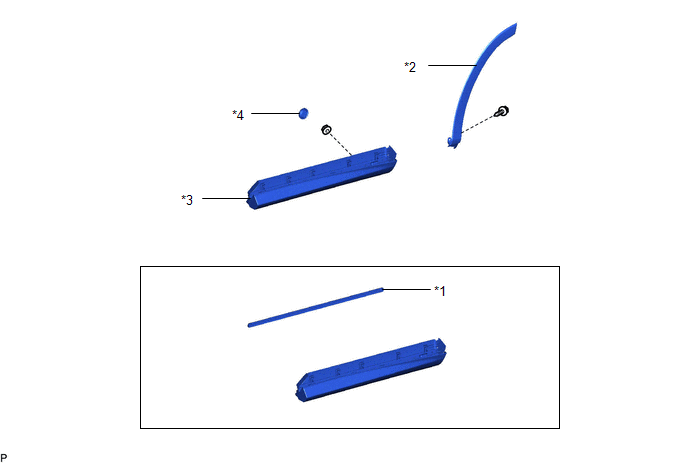

ILLUSTRATION

*1

NO. 3 REAR DOOR WEATHERSTRIP

*2

REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY

*3

REAR DOOR OUTSIDE MOULDING SUB-ASSEMBLY

*4

HOLE PLUG

    Rear Door Outside Moulding
    ...

    Installation
    INSTALLATION CAUTION / NOTICE / HINT HINT: Use the same procedure for the RH side and LH side. The following procedure is for the LH side. PROCEDURE 1. INSTALL NO. 3 REAR DOOR WEATHERSTRIP (a) ...
