Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual: Components
COMPONENTS
ILLUSTRATION
| *1 | FRONT FENDER REINFORCEMENT SUB-ASSEMBLY TOP | *2 | HEADLIGHT ASSEMBLY |
| *3 | CENTER HOOD CUSHION | - | - |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | w/ Automatic Headlight Beam Level Control System | *B | for Bulb Type Turn Signal Light |
| *1 | FRONT SIDE MARKER LIGHT BULB | *2 | FRONT SIDE MARKER LIGHT SOCKET |
| *3 | FRONT TURN SIGNAL LIGHT BULB | *4 | FRONT TURN SIGNAL LIGHT SOCKET |
| *5 | HEADLIGHT GASKET | *6 | HEADLIGHT UNIT |
| *7 | NO. 1 HEADLIGHT ECU SUB-ASSEMBLY | - | - |
| ● | Non-reusable part | - | - |
ILLUSTRATION

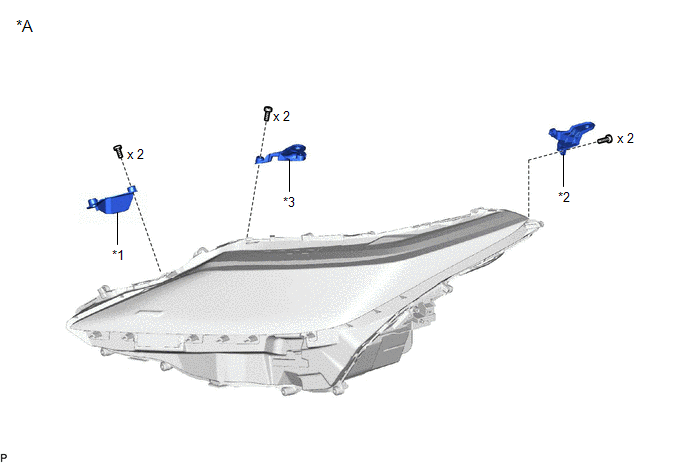

| *A | Bracket for Repair | - | - |
| *1 | LOWER NO. 2 HEADLIGHT PROTECTOR RETAINER | *2 | UPPER HEADLIGHT PROTECTOR RETAINER |
| *3 | UPPER NO. 2 HEADLIGHT PROTECTOR RETAINER | - | - |
Disassembly
DISASSEMBLY CAUTION / NOTICE / HINT HINT:
Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.
PROCEDURE 1. REMOVE FRONT TURN SIGNAL LIGHT BULB (for ...
