Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: Reassembly
REASSEMBLY
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. INSTALL REAR COMBINATION LIGHT LENS AND BODY (for Bulb Type Turn Signal Light)
2. INSTALL REAR COMBINATION LIGHT BRACKET (for Bulb Type Turn Signal Light)
| (a) Install the rear combination light bracket with the screw. |
|
.png)
3. INSTALL REAR LIGHT CORD (for Bulb Type Turn Signal Light)
| (a) Connect the connector to install the rear light cord. |
|
.png)
(b) Turn the rear light cord as shown in the illustration to connect them as a unit.
.png)
.png) | Install in this Direction |
4. INSTALL REAR TURN SIGNAL LIGHT BULB (for Bulb Type Turn Signal Light)
(a) Install the rear turn signal light bulb to the rear light cord.
(b) Turn the rear light cord with the rear turn signal light bulb as shown in the illustration to connect them as a unit.
.png)
| | Install in this Direction |

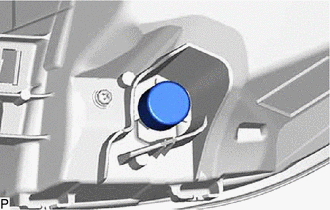

5. INSTALL REAR COMBINATION LIGHT CAP (for LED Type Turn Signal Light)
(a) for TMMC Made:
| (1) Install the rear combination light cap. HINT: Use the same procedure for all rear combination light caps. |
|
.png)
