Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual: Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. INSTALL OUTER MIRROR
(a) Connect the 2 connectors.
(b) Engage the clamp.

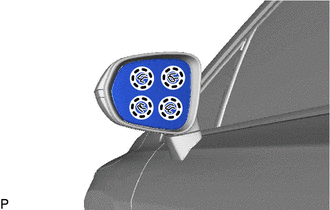

| (c) Engage the 4 claws to install the outer mirror. NOTICE: Do not push the outer mirror with excessive force. Doing so may break the mirror surface. |
|
Inspection
INSPECTION PROCEDURE 1. INSPECT OUTER MIRROR RH (a) Check the outer mirror heater operation. (1) Measure the resistance according to the value(s) in the table below. Standard Resistance: Tester ...
