OPERATION CHECK

WIRELESS CHARGING SYSTEM OPERATION CHECK

(a) Turn the engine switch on (IG or ACC).

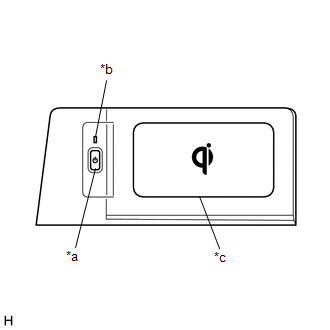

*a

Mobile Wireless Charger Switch

*b

Indicator Light (Green/Amber)

*c

Charging Area

HINT:

If the engine switch is turned off when the wireless charging system is on, the wireless charging system will automatically turn on the next time the engine switch is turned on (IG or ACC).

(b) Turn the wireless charging system on and check that the indicator light (green) illuminates.

(c) Place a rechargeable device on the charging area and check that the indicator light (amber) illuminates, indicating charging is in progress.

HINT:

For details about Qi-compatible rechargeable devices

Click here

(d) Check that the indicator light (green) illuminates when charging is complete.

HINT:

Some mobile devices, cases or accessories may not cause the indicator (green) to illuminate when charging is complete, even though they are Qi-compatible. Check the mobile device to confirm the charge status.

(e) Turn the wireless charging system off and check that the indicator light turns off.
