PARTS LOCATION

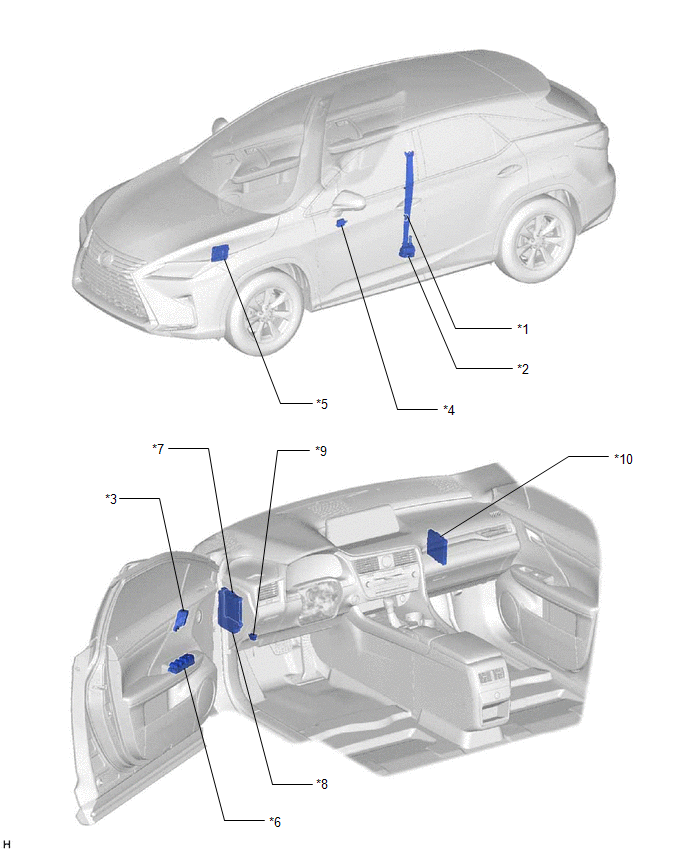

ILLUSTRATION
*1 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (DRIVER DOOR) | *2 | FRONT SEAT OUTER BELT ASSEMBLY LH |
*3 | SEAT MEMORY SWITCH LH | *4 | OUTER MIRROR CONTROL ECU ASSEMBLY (DRIVER DOOR) |
*5 | ECM | *6 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY - DOOR CONTROL SWITCH |
*7 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - DOOR F/L FUSE - P/SEAT F/L FUSE - ECU-DCC NO. 2 FUSE - ECU-IG1 NO. 4 FUSE - ECU-B NO. 2 FUSE |
*9 | DLC3 | *10 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |

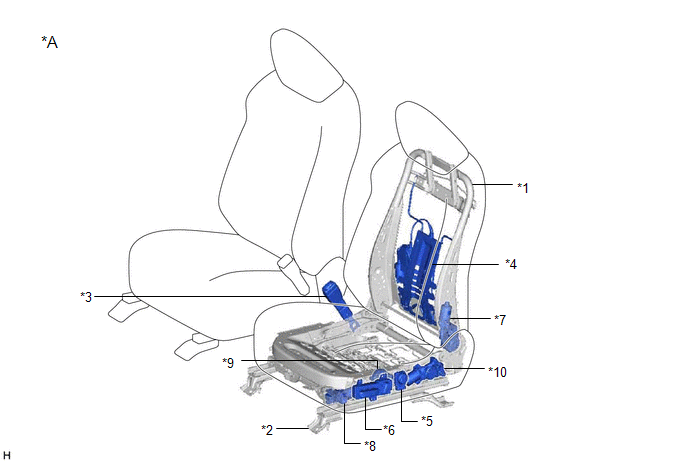

ILLUSTRATION
*A | for Driver Seat without Seat Variable Cushion Switch | - | - |
*1 | FRONT SEATBACK FRAME SUB-ASSEMBLY LH | *2 | FRONT SEAT ADJUSTER ASSEMBLY LH |
*3 | FRONT SEAT INNER BELT ASSEMBLY LH | *4 | LUMBAR SUPPORT ADJUSTER ASSEMBLY LH |
*5 | FRONT LUMBAR POWER SEAT SWITCH (DRIVER SEAT) | *6 | POSITION CONTROL ECU AND SWITCH ASSEMBLY LH |
*7 | RECLINING MOTOR | *8 | SLIDE MOTOR |
*9 | FRONT VERTICAL MOTOR | *10 | LIFTER MOTOR |
ILLUSTRATION
*A | for Driver Seat with Seat Variable Cushion Switch | - | - |
*1 | FRONT SEATBACK FRAME SUB-ASSEMBLY LH | *2 | FRONT SEAT ADJUSTER ASSEMBLY LH |
*3 | FRONT SEAT INNER BELT ASSEMBLY LH | *4 | LUMBAR SUPPORT ADJUSTER ASSEMBLY LH |
*5 | FRONT LUMBAR POWER SEAT SWITCH (DRIVER SEAT) | *6 | SEAT VARIABLE CUSHION SWITCH (DRIVER SEAT) |
*7 | RECLINING MOTOR | *8 | SLIDE MOTOR |
*9 | FRONT VERTICAL MOTOR | *10 | LIFTER MOTOR |
*11 | SEAT LENGTH MOTOR | *12 | POSITION CONTROL ECU AND SWITCH ASSEMBLY LH |
*13 | FRONT SEAT VERTICAL ADJUSTER ASSEMBLY LH | - | - |
