Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: Components
COMPONENTS

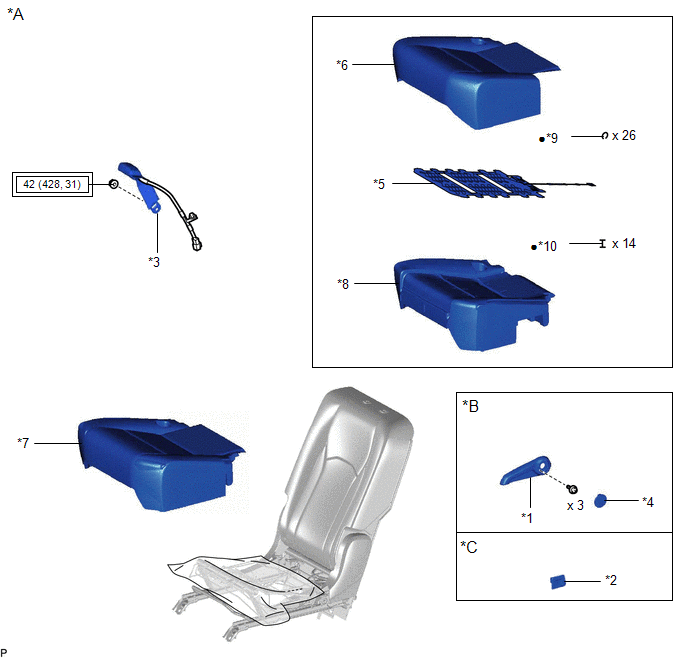

ILLUSTRATION
| *A | w/o Rear No. 2 Seat | *B | for Manual Seat |
| *C | for Power Seat | - | - |
| *1 | NO. 1 RECLINING ADJUSTER RELEASE HANDLE LH | *2 | POWER SEAT SWITCH ASSEMBLY |
| *3 | REAR CENTER SEAT INNER BELT ASSEMBLY | *4 | REAR SEAT COVER CAP LH |
| *5 | SEAT HEATER ASSEMBLY | *6 | SEPARATE TYPE REAR SEAT CUSHION COVER |
| *7 | SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD | *8 | SEPARATE TYPE REAR SEAT CUSHION PAD |
| *9 | HOG RING | *10 | TAG PIN |
.png) | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
ILLUSTRATION
| *A | w/ Rear No. 2 Seat | - | - |
| *1 | NO. 1 RECLINING ADJUSTER RELEASE HANDLE LH | *2 | REAR SEAT COVER CAP LH |
| *3 | REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY LH | *4 | SEAT HEATER ASSEMBLY |
| *5 | SEPARATE TYPE REAR SEAT CUSHION COVER | *6 | SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD |
| *7 | REAR SEAT CUSHION PAD LH | *8 | HOG RING |
| *9 | TAG PIN | - | - |
| ● | Non-reusable part | - | - |
Inspection
INSPECTION PROCEDURE 1. INSPECT SEAT HEATER ASSEMBLY (a) Measure the resistance according to the value(s) in the table below. Standard Resistance: Tester Connection Condition Specified Cond ...
