Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: Components
COMPONENTS

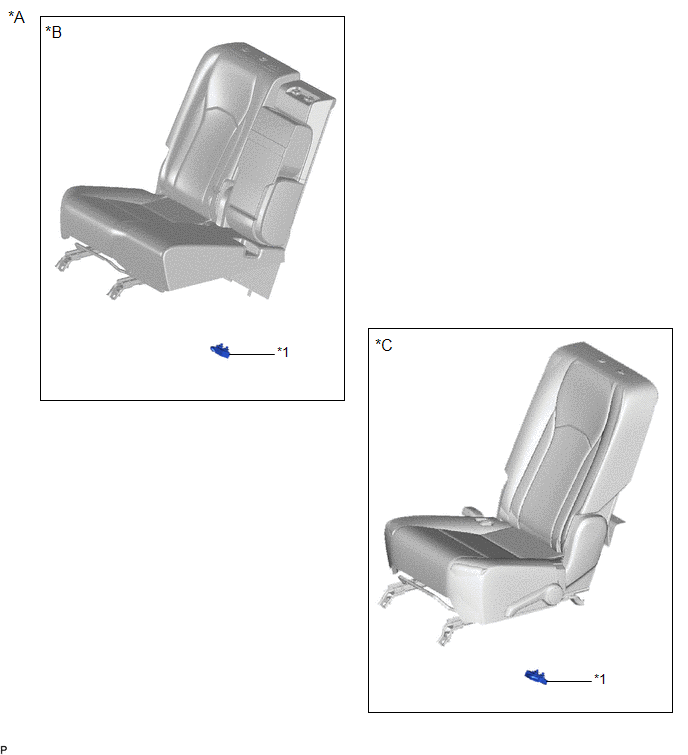

ILLUSTRATION
| *A | w/o Rear No. 2 Seat | *B | for 60/40 Split Seat Type RH Side |
| *C | for 60/40 Split Seat Type LH Side | - | - |
| *1 | SEAT HEATER CONTROL SUB-ASSEMBLY | - | - |
ILLUSTRATION
| *A | w/ Rear No. 2 Seat | *B | for 60/40 Split Seat Type RH Side |
| *C | for 60/40 Split Seat Type LH Side | - | - |
| *1 | SEAT HEATER CONTROL SUB-ASSEMBLY LH | *2 | SEAT HEATER CONTROL SUB-ASSEMBLY RH |
ILLUSTRATION
| *A | w/ Rear No. 2 Seat | *B | for Captain Seat Type |
| *C | for RH Side | *D | for LH Side |
| *1 | SEAT HEATER CONTROL SUB-ASSEMBLY LH | *2 | SEAT HEATER CONTROL SUB-ASSEMBLY RH |
Installation
INSTALLATION CAUTION / NOTICE / HINT CAUTION: Wear protective gloves. Sharp areas on the seat frame may injure your hands. PROCEDURE 1. INSTALL SEAT HEATER CONTROL SUB-ASSEMBLY (w/o Rear No. 2 Seat) ( ...
