Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: Inspection

INSPECTION

PROCEDURE

1. INSPECT REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 - 2

Rear No. 1 RH seat belt unfastened

Below 1 Ω

Rear No. 1 RH seat belt fastened

10 kΩ or higher

If the result is not as specified, replace the rear seat 3 point type belt assembly RH.

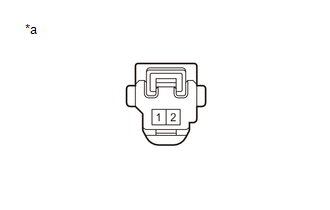

*a

Component without harness connected

(Rear Seat 3 Point Type Belt Assembly RH)

    Removal
    REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during rear ...

    Installation
    INSTALLATION PROCEDURE 1. INSTALL REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH (a) Install the rear seat 3 point type belt assembly RH with the bolt. Torque: 42 N·m {428 kgf·cm, 31 ft·lbf} (b) Engage t ...
