Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: System Diagram

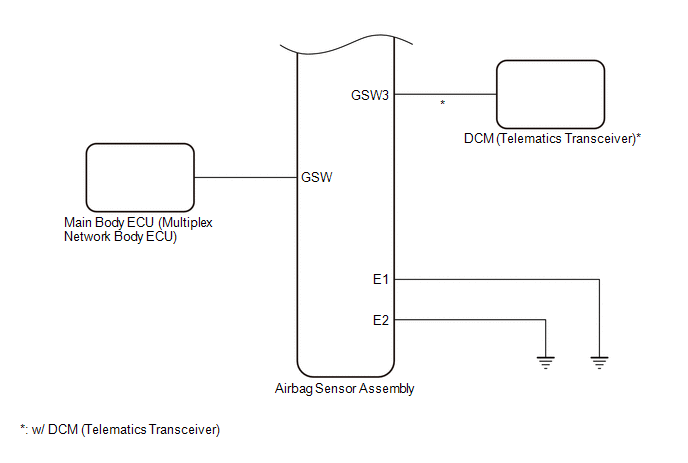

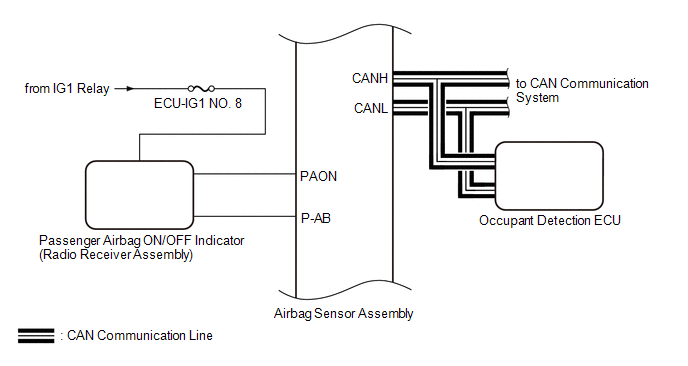

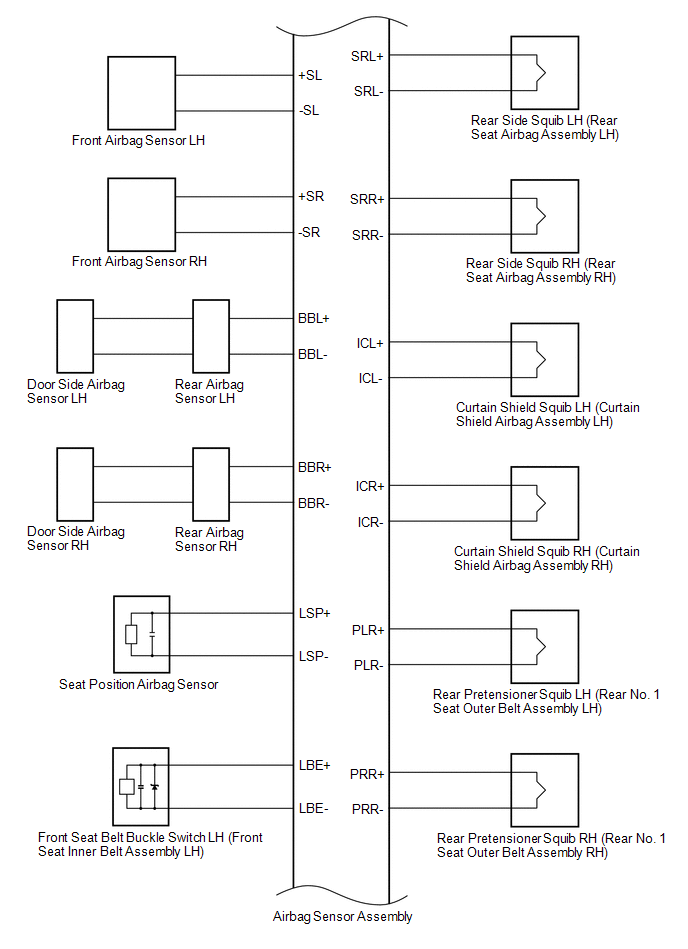

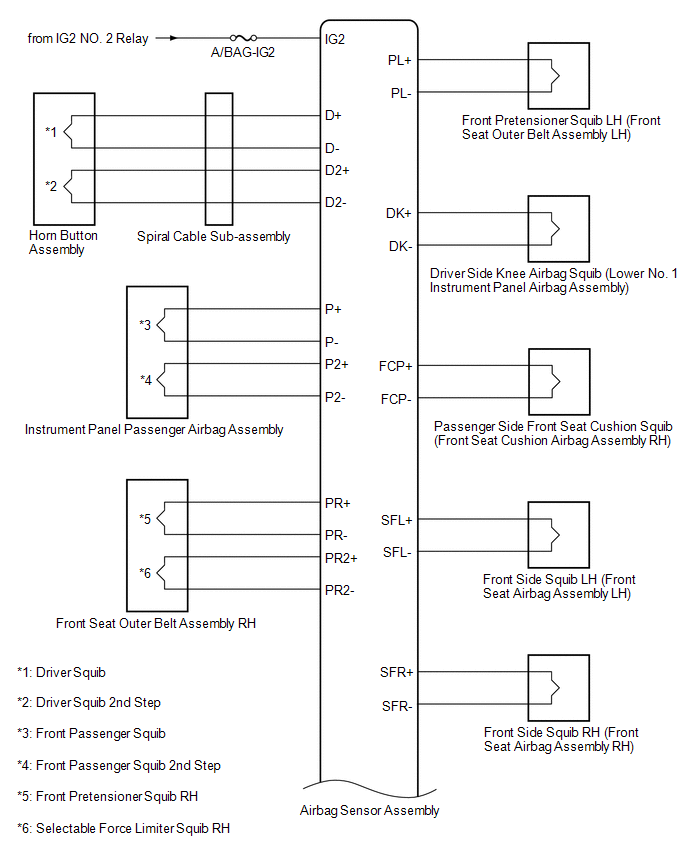

SYSTEM DIAGRAM

Communication Table

Transmitting ECU

(Transmitter)

Receiving ECU

Signal

Communication Method

Airbag Sensor Assembly

Occupant Detection ECU

  • Crash detection signal
  • Acceleration signal

CAN

Airbag Sensor Assembly

ECM

  • Crash detection signal

Airbag Sensor Assembly

Combination Meter Assembly

  • SRS warning light on demand signal

Occupant Detection ECU

Airbag Sensor Assembly

  • Occupant classification system failure signal
  • Occupant classification system zero point error signal
  • Occupant state for front passenger signal
  • Buckle switch state of front passenger signal
    Parts Location
    PARTS LOCATION ILLUSTRATION *A w/o Rear No. 2 Seat - - *1 FRONT AIRBAG SENSOR LH *2 FRONT AIRBAG SENSOR RH *3 DOOR SIDE AIRBAG SENSOR LH *4 DOOR SIDE AIRBAG SENSOR RH ...

    System Description
    SYSTEM DESCRIPTION FUNCTION OF CONNECTORS (a) Location of activation prevention mechanism (b) Function of activation prevention mechanism (1) This mechanism is designed to create a short circuit aut ...
