REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during quarter window assembly removal/installation are shown below.
Necessary Procedure After Parts Removed/Installed/Replaced Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
---|---|---|---|
*1: When performing learning using the Techstream.
Click here | |||
Disconnect cable from negative battery terminal | Memorize steering angle neutral point | Lane Control System |
|
Pre-collision System | |||
Intelligent Clearance Sonar System*1 | |||
Parking Assist Monitor System |
| ||
Panoramic View Monitor System |
| ||
Lighting System (w/ Automatic Headlight Beam Level Control System) |
| ||
Initialize back door lock | Power Door Lock Control System |
| |
Reset back door close position | Power Back Door System (w/ Outside Door Control Switch) |
|
CAUTION:
Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.
Click here
HINT:
PROCEDURE
1. REMOVE TONNEAU COVER ASSEMBLY
Click here
2. REMOVE DECK BOARD ASSEMBLY
Click here
3. REMOVE REAR NO. 3 FLOOR BOARD
Click here
4. REMOVE REAR DECK FLOOR BOX
Click here
5. REMOVE REAR NO. 4 FLOOR BOARD
Click here
6. REMOVE FRONT DECK FLOOR BOX
Click here
7. REMOVE DECK SIDE TRIM BOX RH
Click here
8. REMOVE REAR FLOOR FINISH PLATE
Click here
9. REMOVE REAR DOOR SCUFF PLATE LH
Click here
10. REMOVE REAR SEAT ASSEMBLY LH
Click here
11. REMOVE UPPER QUARTER TRIM PAD LH
Click here
12. REMOVE REAR SEAT SIDE GARNISH LH
Click here
13. REMOVE REAR FLOOR FINISH SIDE PLATE LH
Click here
14. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for LH Side)
Click here
15. REMOVE ROPE HOOK ASSEMBLY (for LH Side)
Click here
16. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for LH Side)
Click here
17. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
Click here
18. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH
Click here
19. REMOVE QUARTER WINDOW ASSEMBLY

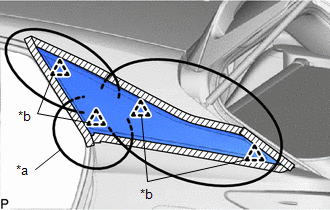

(a) Apply protective tape to the area around the installation position of the quarter window assembly on the vehicle body to prevent it from being scratched.
Protective Tape |

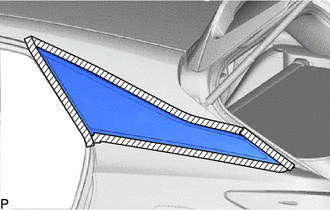

(b) Pass a piano wire between the vehicle body and quarter window assembly from the interior. |
|
(c) Tie both wire ends to wooden blocks or similar objects that can serve as handles.
(d) Cut the adhesive by pulling the piano wire around the quarter window assembly.
NOTICE:
When separating the quarter window assembly, be careful not to damage the paint or interior and exterior ornaments.

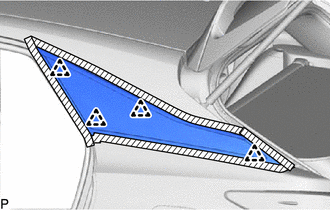

(e) Using suction cups, disengage the 4 clips and remove the quarter window assembly. NOTICE: Be careful not to drop the quarter window assembly. | |
20. CLEAN VEHICLE BODY
(a) Clean and shape the contact surfaces of the vehicle body.

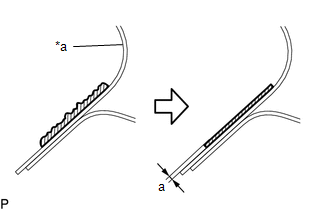

(1) Using a knife, cut off any excess adhesive on the contact surfaces of the vehicle body as shown in the illustration.
*a | Vehicle Body |
Adhesive |
Standard Dimension:
Area | Dimension |
---|---|
a | 1.0 mm (0.0394 in.) or more |
NOTICE:
Be careful not to damage the vehicle body.
HINT:
Leave approximately 1.0 mm (0.0394 in.) of adhesive on the vehicle body.
(b) Clean the contact surfaces of the vehicle body with a piece of cloth saturated with non-residue solvent.
HINT:
Even if all of the adhesive has been removed, clean the vehicle body.
